SKY Flat Panel

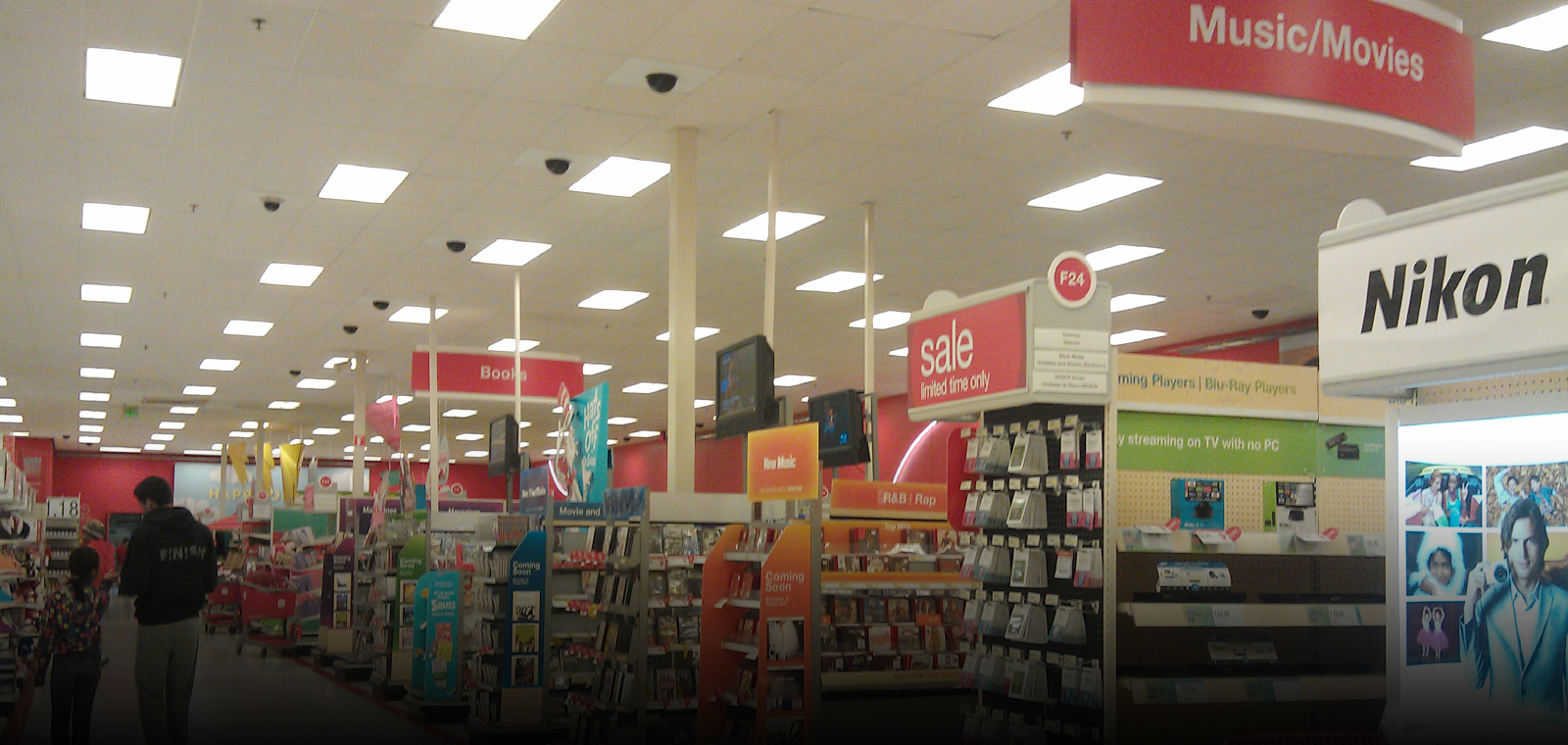

The SKY LED flat panel is designed for standard T-bar and narrow grid drop ceiling to replace fluorescent fixtures in offices, supermarkets, schools and other indoor applications. The Edge Lit design enables even light distribution, simple but beautiful and easy for installation. Energy saving, long life span and low maintenance.

Document Library


Technical Information

Model number Voltage(V)Wattage(W)Replaces/Equiv.(FL)Dimming / ControlLumens(lm)CCT(K)CRIBeam Angle(Degree)Dimension(L“-W”-H“)Finish/ColorIP RatingMaterialComplianceAverage life based on 77F(HRS)Order number
SFLP22D3830 120-277 38 3x17W FL 1-10V Dim 3650 3000 >80 110 23.74’’x23.74’’x1.76'' White 20 PMMA+Al DLC 50000 14211K
SFLP22D3835 120-277 38 3x17W FL 1-10V Dim 3750 3500 >80 110 23.74’’x23.74’’x1.76'' White 20 PMMA+Al DLC 50000 14212K
SFLP22D3840 120-277 38 3x17W FL 1-10V Dim 3750 4000 >80 110 23.74’’x23.74’’x1.76'' White 20 PMMA+Al DLC 50000 14213K
SFLP22D3850 120-277 38 3x17W FL 1-10V Dim 3960 5000 >80 110 23.74’’x23.74’’x1.76'' White 20 PMMA+Al DLC 50000 14214K
SFLP14D3830 120-277 38 2x32W FL 1-10V Dim 3650 3000 >80 110 47.80”x11.73”x1.76'' White 20 PMMA+Al DLC 50000 14215K
SFLP14D3835 120-277 38 2x32W FL 1-10V Dim 3750 3500 >80 110 47.80”x11.73”x1.76'' White 20 PMMA+Al DLC 50000 14216K
SFLP14D3840 120-277 38 2x32W FL 1-10V Dim 3750 4000 >80 110 47.80”x11.73”x1.76'' White 20 PMMA+Al DLC 50000 14217K
SFLP14D3850 120-277 38 2x32W FL 1-10V Dim 3960 5000 >80 110 47.80”x11.73”x1.76'' White 20 PMMA+Al DLC 50000 14218K
SFLP24D3830 120-277 38 2 x 32W FL 1-10V Dim 3500 3000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14219K
SFLP24D3835 120-277 38 2 x 32W FL 1-10V Dim 3700 3500 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14220K
SFLP24D3840 120-277 38 2 x 32W FL 1-10V Dim 3700 4000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14221K
SFLP24D3850 120-277 38 2 x 32W FL 1-10V Dim 3850 5000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14222K
SFLP24D4830 120-277 48 3x32W FL and 4x32W FL 1-10V Dim 4850 3000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14223K
SFLP24D4835 120-277 48 3x32W FL and 4x32W FL 1-10V Dim 5080 3500 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14224K
SFLP24D4840 120-277 48 3x32W FL and 4x32W FL 1-10V Dim 5080 4000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14225K
SFLP24D4850 120-277 48 3x32W FL and 4x32W FL 1-10V Dim 5300 5000 >80 110 47.80”x23.74”x1.76'' White 20 PMMA+Al DLC 50000 14226K
