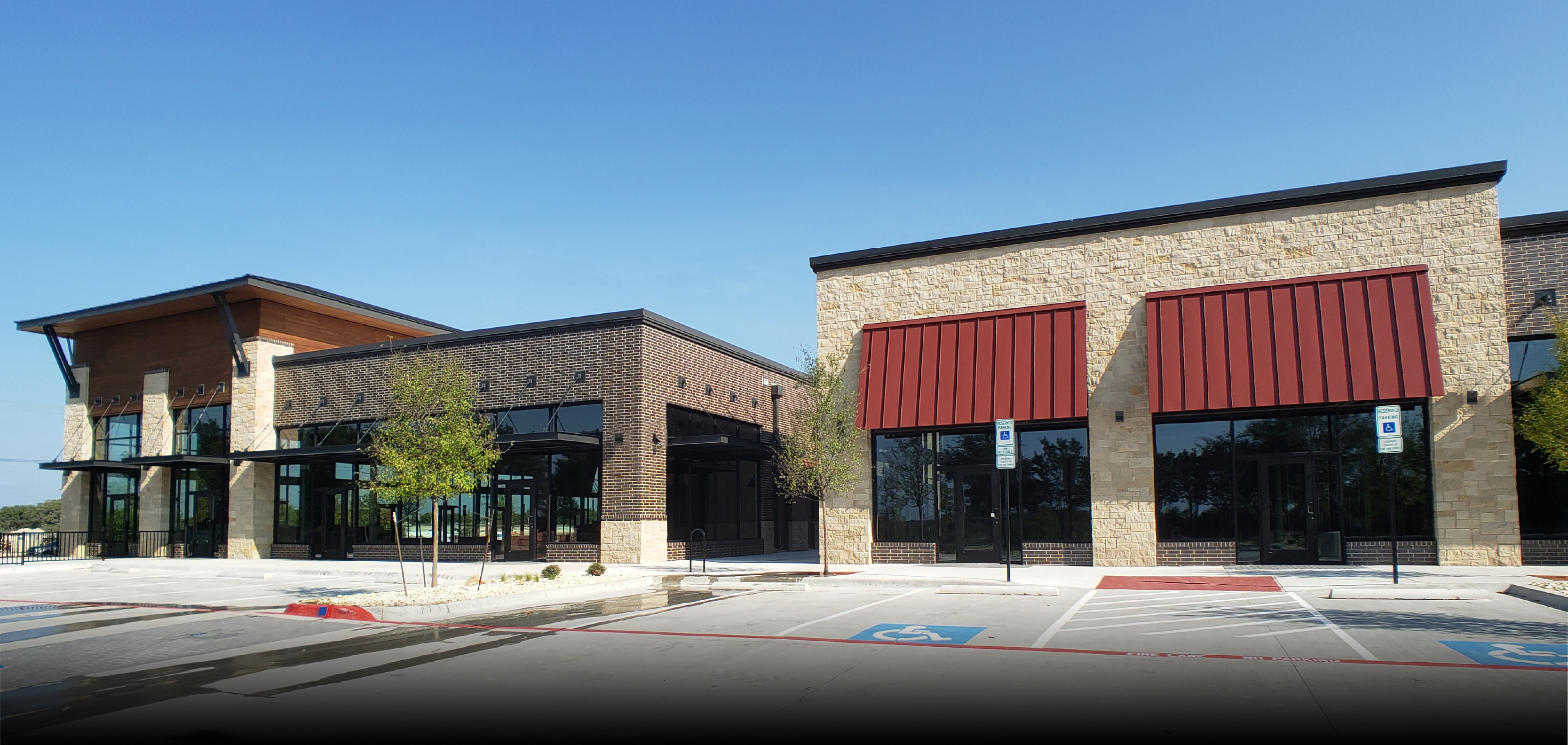

The leopard series is designed to replace 70-150W MH luminaires while saving up to 88% in energy costs. The leopard series can be customized for virtually any flood light or a wall pack in your lighting application. This series is ideal for outdoor applications such as building perimeters, loading areas, sign and building flood lighting, or above a door as a security light.
| Spec Sheet | Leopard LED Mini Flood And Wall Pack Spec Sheet |
|---|---|
| Instruction Manual | Leopard LED Mini Flood And Wall Pack Manual |
| IES Files | Leopard LED Mini Flood And Wall Pack IES Files |
| How are we different | Leopard LED Mini Flood And Wall Pack PPT |
| Tech Info | Leopard LED Mini Flood And Wall Pack Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MFW20501-WL | 120-277 | 20 | 100W | Available | 2920 | 5000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | DLC | 70000 | 11214a |
| MFW20401-WL | 120-277 | 20 | 100W | Available | 2920 | 4000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | No | 70000 | 11588a |
| MFW20504-PC-WL | 120 | 20 | 100W | Photocell | 2920 | 5000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | DLC | 70000 | 11216a |
| MFW25501-WL | 120-277 | 25 | 100W | Available | 3410 | 5000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | ETL | 70000 | 14867 |
| MFW25401-WL | 120-277 | 25 | 100W | Available | 3410 | 4000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | ETL | 70000 | 14868 |
| MFW25504-PC-WL | 120 | 25 | 100W | Photocell | 3410 | 5000 | >70 | 75*110 | 7.2-4.8-2.44 | Traditional Bronze | 65 | Aluminium | ETL | 70000 | 14869 |
