PRODUCT Indoor Acoustic

Acoustic

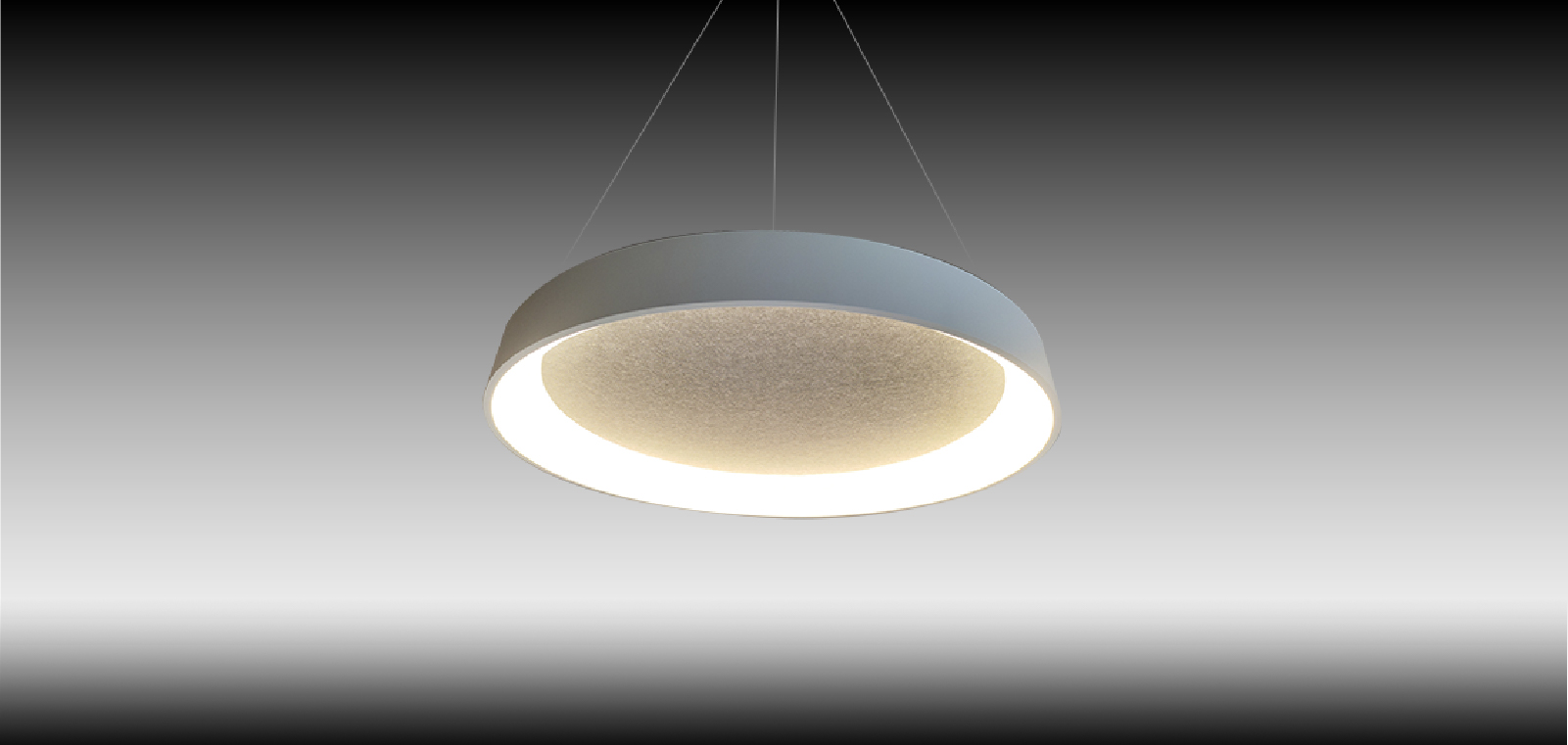

VISS Round LED Light with Acoustic

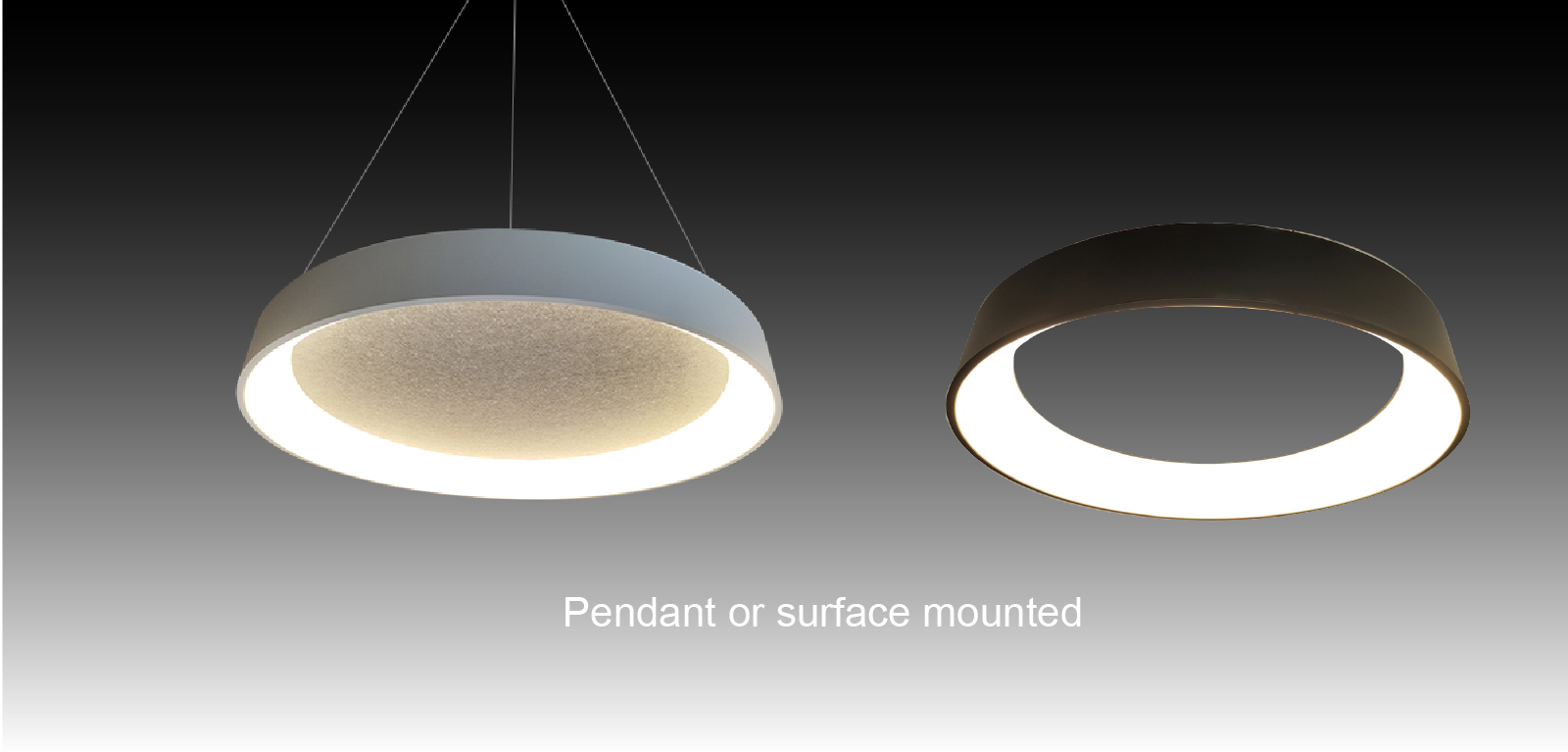

The Viss Series has an unique square and round style with an LED light source illuminating its inner surface. It is available in sizes ranging from14.2" up to 31.5". Deep recessed light source design achieving perfect glare control. Flexible installations come in suspended and surface mount. Working harmoniously with acoustic materials to reduce the noise-levels in any space. Maximizes surface area to absorb sound waves and improve harmony in the installed space.

Document Library

Spec Sheet VISS ROUND LED LIGHT Spec Sheet
IES VISS ROUND LED LIGHT IES
Instruction Manual VISS ROUND LED LIGHT Manual
Tech Info VISS ROUND LED LIGHT Tech Info
Revit file VISS ROUND LED LIGHT Revit file

Technical Information

Model number Voltage(V)Wattage(W)Replaces/Equiv.(MH)ControlsLumens(lm)CCT(K)CRIDistributionDimension Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
VSI-R-LA-1514-30901-ACPMK-WH-NSAC-021 130 120-277 15 / 0-10V Dim 1050 3000 90 / 14.2"-14.2"-3.5" White 20 Aluminum with Acoustic ETL 50000 17608
VSI-R-LA-1514-30901-ACPMK-BK-NSAC-021 130 120-277 15 / 0-10V Dim 1050 3000 90 / 14.2"-14.2"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17612
VSI-R-LA-1514-40901-ACPMK-WH-NSAC-021 130 120-277 15 / 0-10V Dim 1050 4000 90 / 14.2"-14.2"-3.5" White 20 Aluminum with Acoustic ETL 50000 17616
VSI-R-LA-1514-40901-ACPMK-BK-NSAC-021 130 120-277 15 / 0-10V Dim 1050 4000 90 / 14.2"-14.2"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17620
VSI-R-LA-1514-30901-SMK-WH-NSAC-021 130 120-277 15 / 0-10V Dim 1050 3000 90 / 14.2"-14.2"-3.5" White 20 Aluminum with Acoustic ETL 50000 17673
VSI-R-LA-1514-30901-SMK-BK-NSAC-021 130 120-277 15 / 0-10V Dim 1050 3000 90 / 14.2"-14.2"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17677
VSI-R-LA-1514-40901-SMK-WH-NSAC-021 130 120-277 15 / 0-10V Dim 1050 4000 90 / 14.2"-14.2"-3.5" White 20 Aluminum with Acoustic ETL 50000 17681
VSI-R-LA-1514-40901-SMK-BK-NSAC-021 130 120-277 15 / 0-10V Dim 1050 4000 90 / 14.2"-14.2"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17685
VSI-R-LA-2518-30901-ACPMK-WH-NSAC-021 130 120-277 25 / 0-10V Dim 1750 3000 90 / 17.7"-17.7"-3.5" White 20 Aluminum with Acoustic ETL 50000 17609
VSI-R-LA-2518-30901-ACPMK-BK-NSAC-021 130 120-277 25 / 0-10V Dim 1750 3000 90 / 17.7"-17.7"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17613
VSI-R-LA-2518-40901-ACPMK-WH-NSAC-021 130 120-277 25 / 0-10V Dim 1750 4000 90 / 17.7"-17.7"-3.5" White 20 Aluminum with Acoustic ETL 50000 17617
VSI-R-LA-2518-40901-ACPMK-BK-NSAC-021 130 120-277 25 / 0-10V Dim 1750 4000 90 / 17.7"-17.7"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17621
VSI-R-LA-2518-30901-SMK-WH-NSAC-021 130 120-277 25 / 0-10V Dim 1750 3000 90 / 17.7"-17.7"-3.5" White 20 Aluminum with Acoustic ETL 50000 17674
VSI-R-LA-2518-30901-SMK-BK-NSAC-021 130 120-277 25 / 0-10V Dim 1750 3000 90 / 17.7"-17.7"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17678
VSI-R-LA-2518-40901-SMK-WH-NSAC-021 130 120-277 25 / 0-10V Dim 1750 4000 90 / 17.7"-17.7"-3.5" White 20 Aluminum with Acoustic ETL 50000 17682
VSI-R-LA-2518-40901-SMK-BK-NSAC-021 130 120-277 25 / 0-10V Dim 1750 4000 90 / 17.7"-17.7"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17686
VSI-R-LA-3624-30901-ACPMK-WH-NSAC-021 130 120-277 36 / 0-10V Dim 2520 3000 90 / 23.6"-23.6"-3.5" White 20 Aluminum with Acoustic ETL 50000 17610
VSI-R-LA-3624-30901-ACPMK-BK-NSAC-021 130 120-277 36 / 0-10V Dim 2520 3000 90 / 23.6"-23.6"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17614
VSI-R-LA-3624-40901-ACPMK-WH-NSAC-021 130 120-277 36 / 0-10V Dim 2520 4000 90 / 23.6"-23.6"-3.5" White 20 Aluminum with Acoustic ETL 50000 17618
VSI-R-LA-3624-40901-ACPMK-BK-NSAC-021 130 120-277 36 / 0-10V Dim 2520 4000 90 / 23.6"-23.6"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17622
VSI-R-LA-3624-30901-SMK-WH-NSAC-021 130 120-277 36 / 0-10V Dim 2520 3000 90 / 23.6"-23.6"-3.5" White 20 Aluminum with Acoustic ETL 50000 17675
VSI-R-LA-3624-30901-SMK-BK-NSAC-021 130 120-277 36 / 0-10V Dim 2520 3000 90 / 23.6"-23.6"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17679
VSI-R-LA-3624-40901-SMK-WH-NSAC-021 130 120-277 36 / 0-10V Dim 2520 4000 90 / 23.6"-23.6"-3.5" White 20 Aluminum with Acoustic ETL 50000 17683
VSI-R-LA-3624-40901-SMK-BK-NSAC-021 130 120-277 36 / 0-10V Dim 2520 4000 90 / 23.6"-23.6"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17687
VSI-R-LA-5032-30901-ACPMK-WH-NSAC-021 130 120-277 50 / 0-10V Dim 3500 3000 90 / 31.5"-31.5"-3.5" White 20 Aluminum with Acoustic ETL 50000 17611
VSI-R-LA-5032-30901-ACPMK-BK-NSAC-021 130 120-277 50 / 0-10V Dim 3500 3000 90 / 31.5"-31.5"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17615
VSI-R-LA-5032-40901-ACPMK-WH-NSAC-021 130 120-277 50 / 0-10V Dim 3500 4000 90 / 31.5"-31.5"-3.5" White 20 Aluminum with Acoustic ETL 50000 17619
VSI-R-LA-5032-40901-ACPMK-BK-NSAC-021 130 120-277 50 / 0-10V Dim 3500 4000 90 / 31.5"-31.5"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17623
VSI-R-LA-5032-30901-SMK-WH-NSAC-021 130 120-277 50 / 0-10V Dim 3500 3000 90 / 31.5"-31.5"-3.5" White 20 Aluminum with Acoustic ETL 50000 17676
VSI-R-LA-5032-30901-SMK-BK-NSAC-021 130 120-277 50 / 0-10V Dim 3500 3000 90 / 31.5"-31.5"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17680
VSI-R-LA-5032-40901-SMK-WH-NSAC-021 130 120-277 50 / 0-10V Dim 3500 4000 90 / 31.5"-31.5"-3.5" White 20 Aluminum with Acoustic ETL 50000 17684
VSI-R-LA-5032-40901-SMK-BK-NSAC-021 130 120-277 50 / 0-10V Dim 3500 4000 90 / 31.5"-31.5"-3.5" Black 20 Aluminum with Acoustic ETL 50000 17688
