PRODUCT Indoor Cylinder

Cylinder

Selectable Magic Cylinder Light

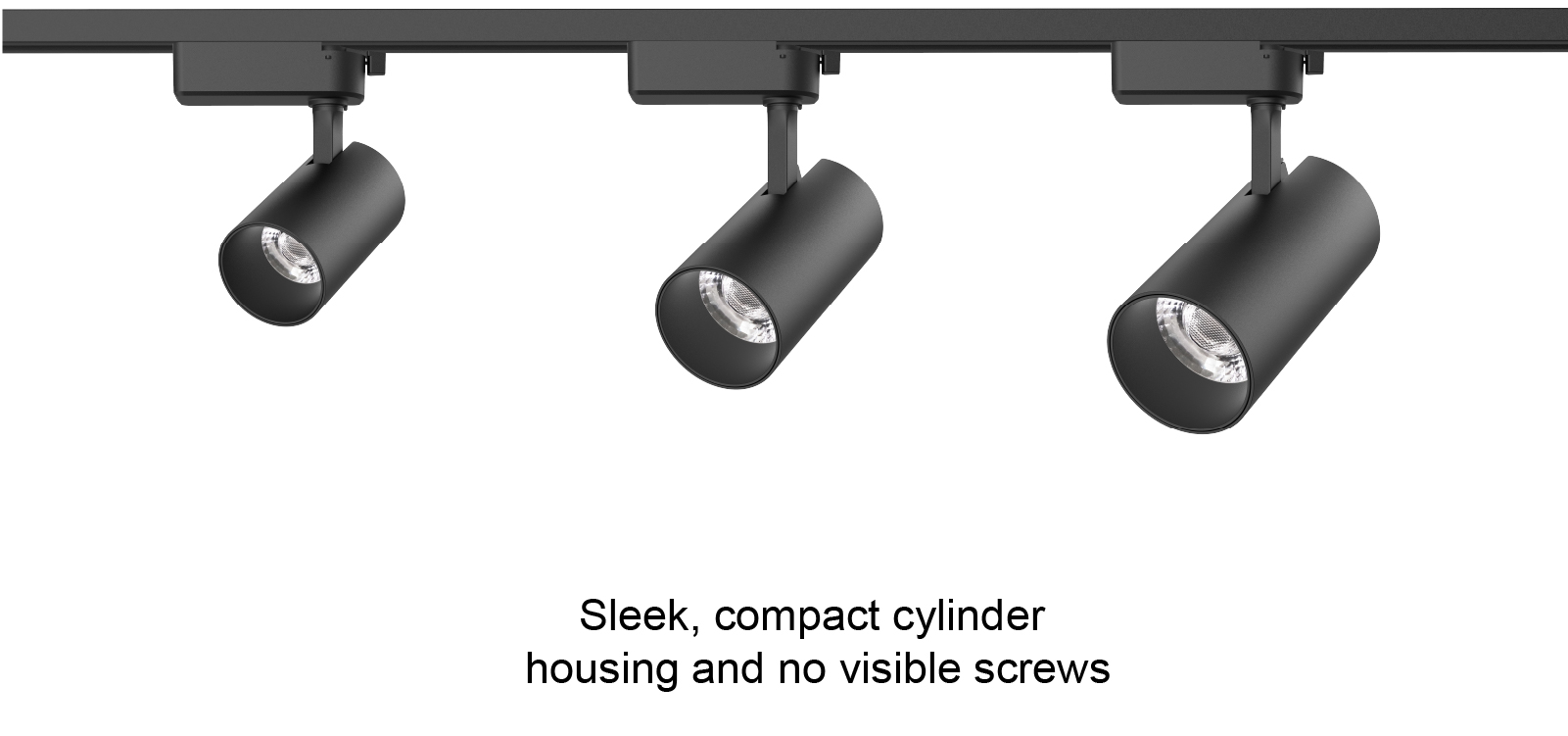

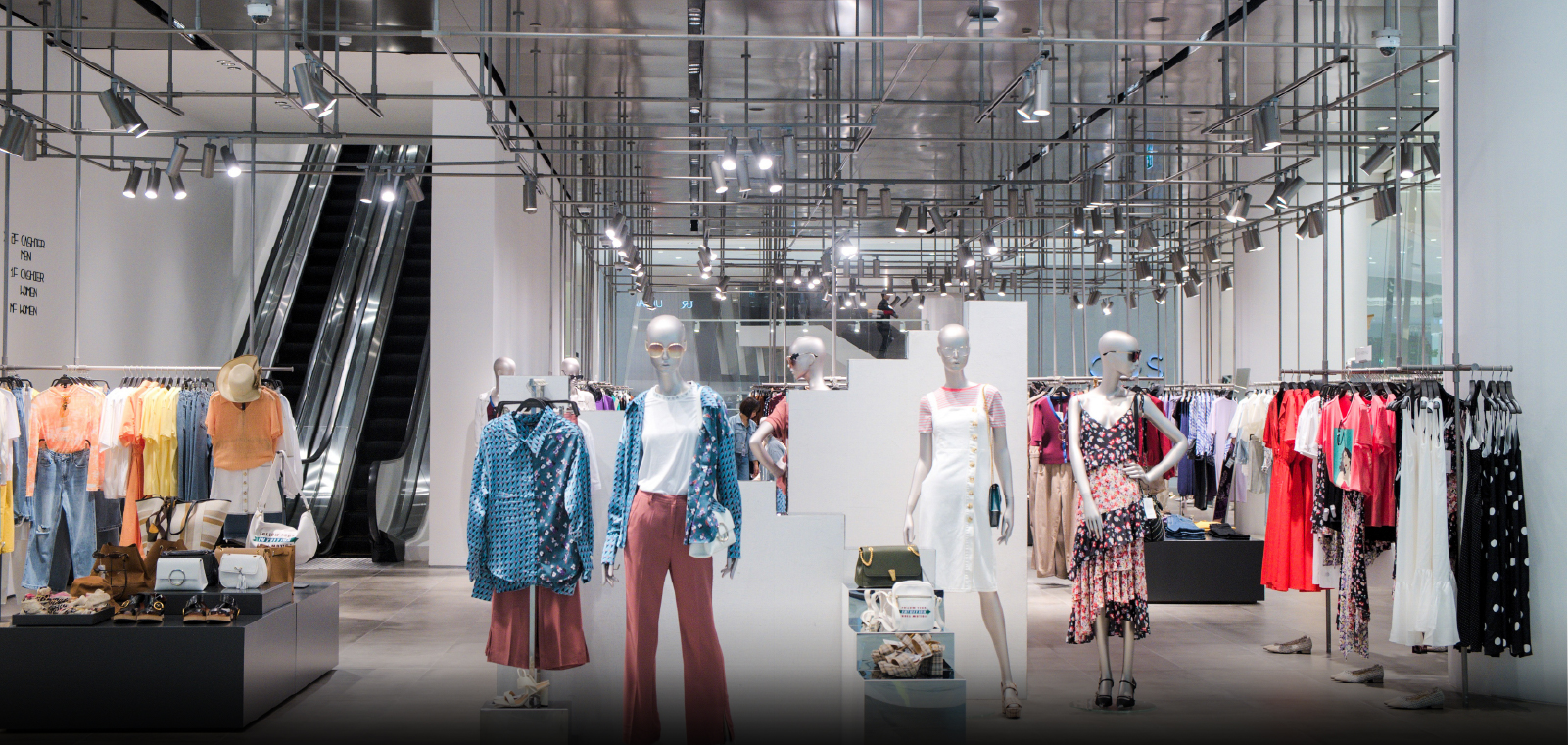

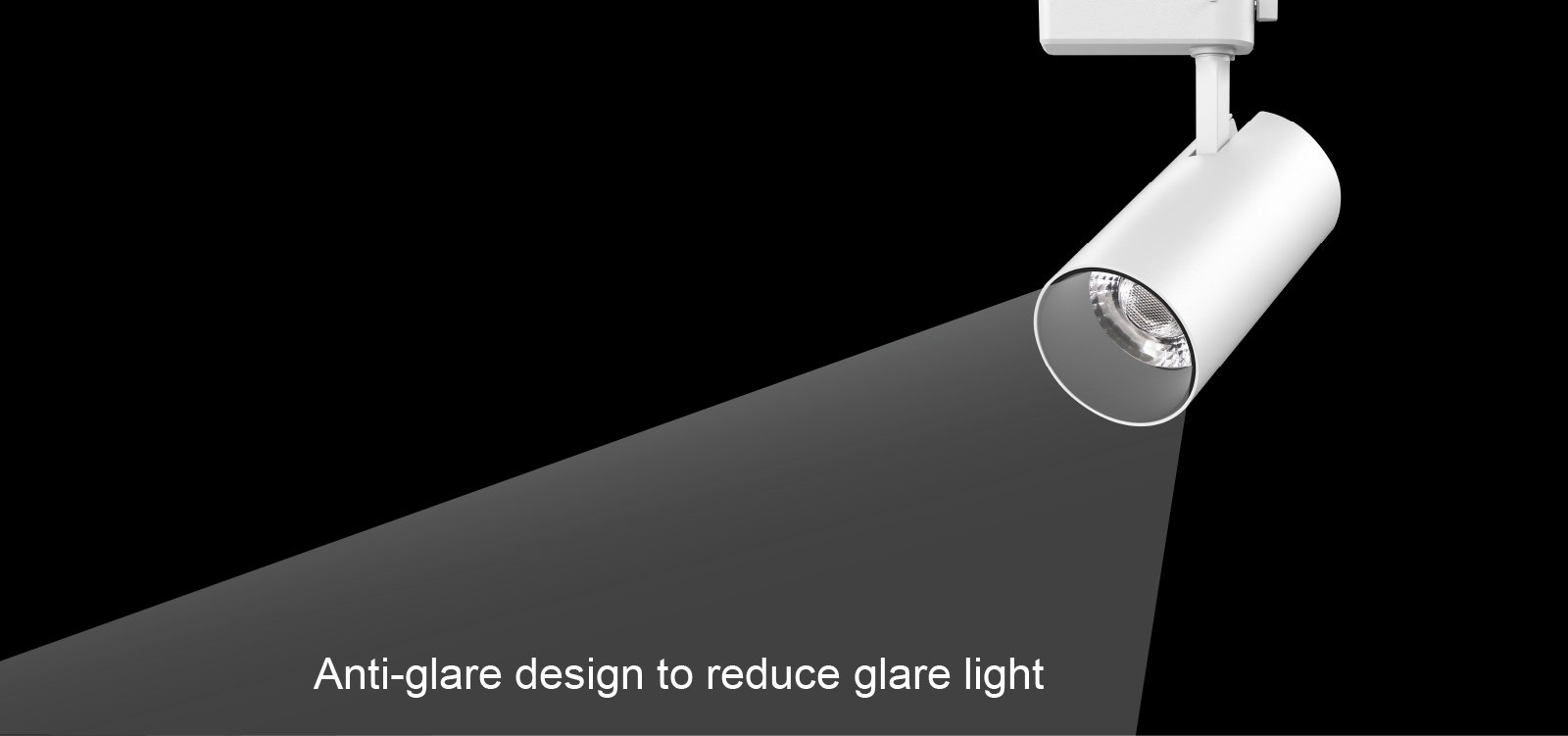

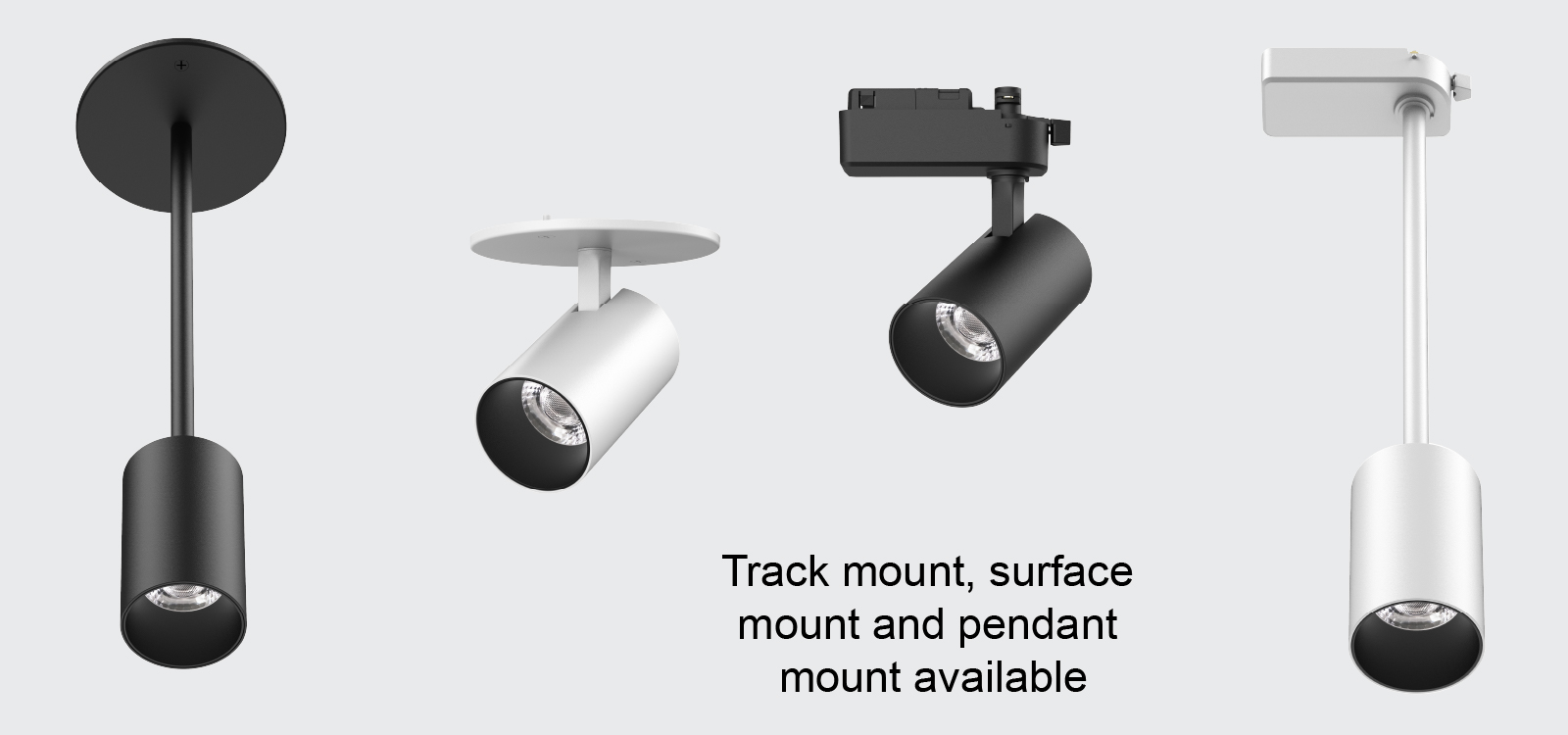

This architectural Magic Cylinder Light is designed for accent lighting and features a state-of-the-art design. Thanks to the detachable tool-less modular design, the luminaire can be used as commercial pendant light, surface mounted light, monopoint spotlight, and track light. The anti-glare design allows for ideal control of visual comfort. It is widely used in shops and other commercial applications.

Document Library

Spec Sheet Selectable Magic Cylinder Light Spec Sheet
IES Selectable Magic Cylinder Light IES
Tech Info Selectable Magic Cylinder Light Tech Info
Revit file Selectable Magic Cylinder Light 15W Revit file
Revit file Selectable Magic Cylinder Light 20W Revit file
Revit file Selectable Magic Cylinder Light 25W Revit file
Revit file Selectable Magic Cylinder Light 30W Revit file
Revit file Selectable Magic Cylinder Light 35W Revit file
Seletable Magic Cylinder241202-03.jpg
Seletable Magic Cylinder241202-07.jpg
Seletable Magic Cylinder241202-02.jpg
Seletable Magic Cylinder241202-05.jpg
Seletable Magic Cylinder241202-09.jpg
Seletable Magic Cylinder241202-06.jpg
Seletable Magic Cylinder241202-08.jpg
Seletable Magic Cylinder241202-04.jpg
Seletable Magic Cylinder241202-10.jpg

Technical Information

Model number Voltage(V)Wattage (W)Replaces/Equiv.(FL)Dimming/ControlLumens(lm)CCT(K)CRIDistributionDimension(L"-W"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
SMCL-25SP-SW904-15-PMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17819
SMCL-25SP-SW904-24-PMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17820
SMCL-25SP-SW904-36-PMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17821
SMCL-25SP-SW904-50-PMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17822
SMCL-25SP-SW904-15-SMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17831
SMCL-25SP-SW904-24-SMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17832
SMCL-25SP-SW904-36-SMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17833
SMCL-25SP-SW904-50-SMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17834
SMCL-25SP-SW904-15-HTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17843
SMCL-25SP-SW904-24-HTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17844
SMCL-25SP-SW904-36-HTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17845
SMCL-25SP-SW904-50-HTMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17846
SMCL-25SP-SW904-15-JTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17855
SMCL-25SP-SW904-24-JTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17856
SMCL-25SP-SW904-36-JTMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17857
SMCL-25SP-SW904-50-JTMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17858
SMCL-25SP-SW904-15-HTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17867
SMCL-25SP-SW904-24-HTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17868
SMCL-25SP-SW904-36-HTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17869
SMCL-25SP-SW904-50-HTPMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17870
SMCL-25SP-SW904-15-JTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 15 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17879
SMCL-25SP-SW904-24-JTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 24 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17880
SMCL-25SP-SW904-36-JTPMK-MBK 120 15W/20W25W / Triac dimming 1700 3000/3500/4000K 90 36 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17881
SMCL-25SP-SW904-50-JTPMK-MBK 120 15W/20W25W / Triac dimming 1400 3000/3500/4000K 90 50 degree Ø2.76"- 5.31" Black 20 Alumilum ETL 50000 17882
SMCL-35SP-SW904-15-PMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17823
SMCL-35SP-SW904-24-PMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17824
SMCL-35SP-SW904-36-PMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17825
SMCL-35SP-SW904-50-PMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17826
SMCL-35SP-SW904-15-SMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17835
SMCL-35SP-SW904-24-SMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17836
SMCL-35SP-SW904-36-SMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17837
SMCL-35SP-SW904-50-SMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17838
SMCL-35SP-SW904-15-HTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17847
SMCL-35SP-SW904-24-HTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17848
SMCL-35SP-SW904-36-HTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17849
SMCL-35SP-SW904-50-HTMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17850
SMCL-35SP-SW904-15-JTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17859
SMCL-35SP-SW904-24-JTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17860
SMCL-35SP-SW904-36-JTMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17861
SMCL-35SP-SW904-50-JTMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17862
SMCL-35SP-SW904-15-HTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17871
SMCL-35SP-SW904-24-HTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17872
SMCL-35SP-SW904-36-HTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17873
SMCL-35SP-SW904-50-HTPMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17874
SMCL-35SP-SW904-15-JTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 15 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17883
SMCL-35SP-SW904-24-JTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 24 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17884
SMCL-35SP-SW904-36-JTPMK-MBK 120 25W/30W35W / Triac dimming 2800 3000/3500/4000K 90 36 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17885
SMCL-35SP-SW904-50-JTPMK-MBK 120 25W/30W35W / Triac dimming 2200 3000/3500/4000K 90 50 degree Ø3.15"- 6.3" Black 20 Alumilum ETL 50000 17886
