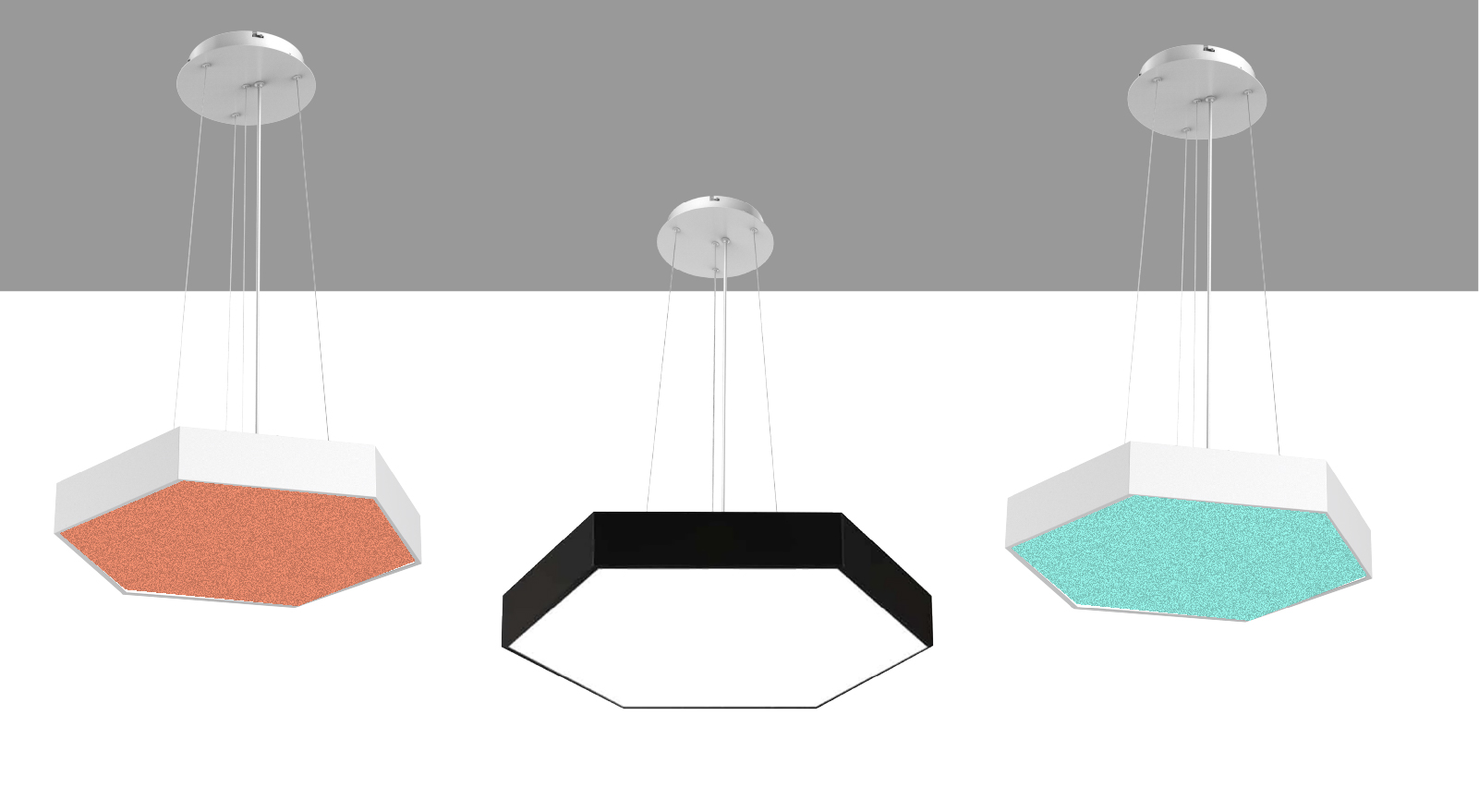

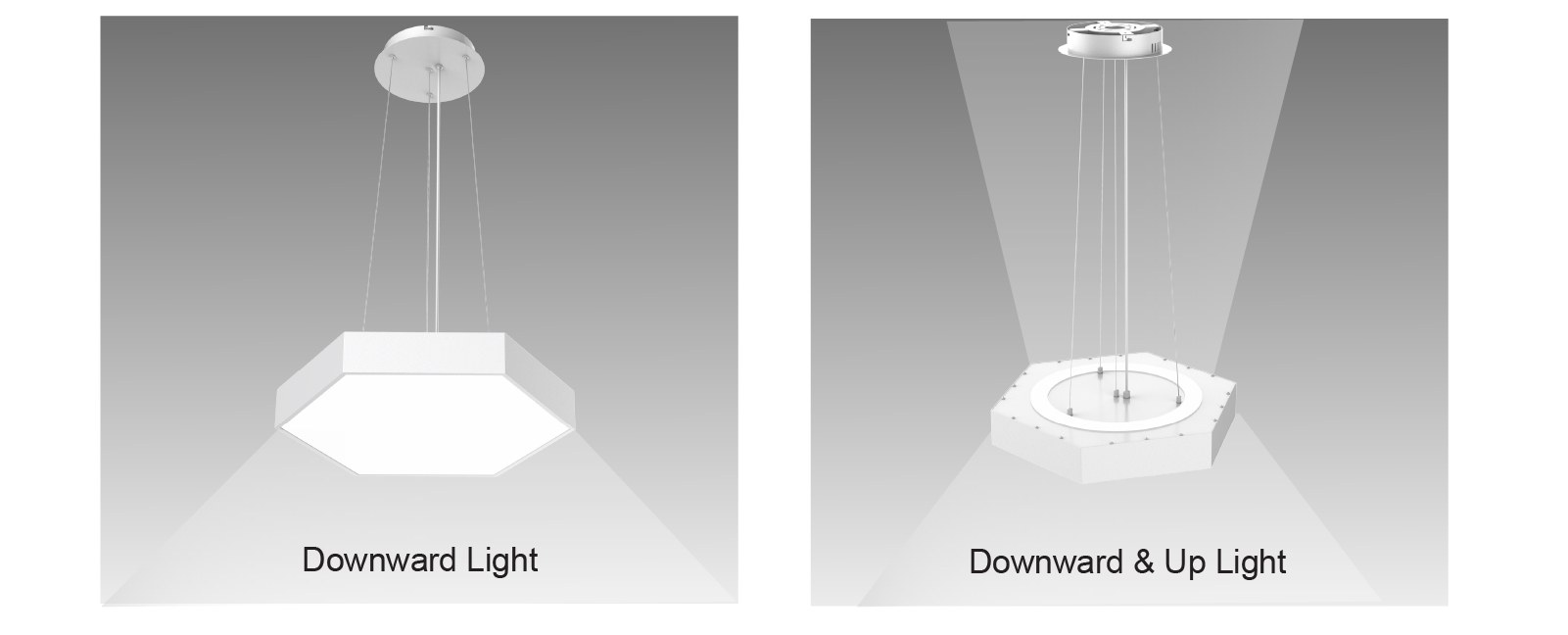

The Hexagon Luminaire is available in a variety of sizes, either surface or pendant mount. This attractive luminaire features aluminum body construction and offers a unique design element. Your Hexagon lighting layout may also incorporate our non-illuminating, Hexagon acoustic panel units in limitless combination. The optional inclusion of these acoustic panel units with their non sound reflecting surface, ads a fabulous element of artistic control and acoustic function. Alone or in combination, the Hexagon lighting system provides an attractive integration of lighting and acoustic control.
| Spec Sheet | Haxagon LED Light Spec Sheet |
|---|---|
| IES | Haxagon LED Light IES |
| Tech Info | Haxagon LED Light Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEX-ACO-19-ACPMK-WH-NSAC-021 130 | / | / | / | / | / | / | / | / | 18.9"-16.4"-9.45"-3.1" | White | 20 | aluminum+fiber | ETL | 50000 | 16354 |
| HEX-ACO-24-ACPMK-WH-NSAC-021 130 | / | / | / | / | / | / | / | / | 23.6"-20.5"-11.8"-3.1" | White | 20 | aluminum+fiber | ETL | 50000 | 16355 |
| HEX-ACO-35-ACPMK-WH-NSAC-021 130 | / | / | / | / | / | / | / | / | 35.4"-30.7"-17.7"-3.1" | White | 20 | aluminum+fiber | ETL | 50000 | 16356 |
| HEX-ACO-47-ACPMK-WH-NSAC-021 130 | / | / | / | / | / | / | / | / | 47.2"-40.9"-23.6"-3.1" | White | 20 | aluminum+fiber | ETL | 50000 | 16357 |
| HEX-2519-40901-ACPMK-WH | 120-277 | 25 | / | 0-10V Dim | 4000 | 90 | / | 18.9"-16.4"-9.45"-3.1" | White | 20 | aluminum | ETL | 50000 | 16346 | |
| HEXID-5019-40901-ACPMK-WH | 120-277 | 25 | / | 0-10V Dim | 4000 | 90 | / | 18.9"-16.4"-9.45"-3.1" | White | 20 | aluminum | ETL | 50000 | 16350 | |
| HEX-4024-40901-ACPMK-WH | 120-277 | 40 | / | 0-10V Dim | 4000 | 90 | / | 23.6"-20.5"-11.8"-3.1" | White | 20 | aluminum | ETL | 50000 | 16347 | |
| HEXID-8024-40901-ACPMK-WH | 120-277 | 40 | / | 0-10V Dim | 4000 | 90 | / | 23.6"-20.5"-11.8"-3.1" | White | 20 | aluminum | ETL | 50000 | 16351 | |
| HEX-9035-40901-ACPMK-WH | 120-277 | 90 | / | 0-10V Dim | 4000 | 90 | / | 35.4"-30.7"-17.7"-3.1" | White | 20 | aluminum | ETL | 50000 | 16348 | |
| HEXID-12035-40901-ACPMK-WH | 120-277 | 90 | / | 0-10V Dim | 4000 | 90 | / | 35.4"-30.7"-17.7"-3.1" | White | 20 | aluminum | ETL | 50000 | 16352 | |
| HEX-18047-40901-ACPMK-WH | 120-277 | 180 | / | 0-10V Dim | 4000 | 90 | / | 47.2"-40.9"-23.6"-3.1" | White | 20 | aluminum | ETL | 50000 | 16349 | |
| HEXID-22047-40901-ACPMK-WH | 120-277 | 180 | / | 0-10V Dim | 4000 | 90 | / | 47.2"-40.9"-23.6"-3.1" | White | 20 | aluminum | ETL | 50000 | 16353 |
