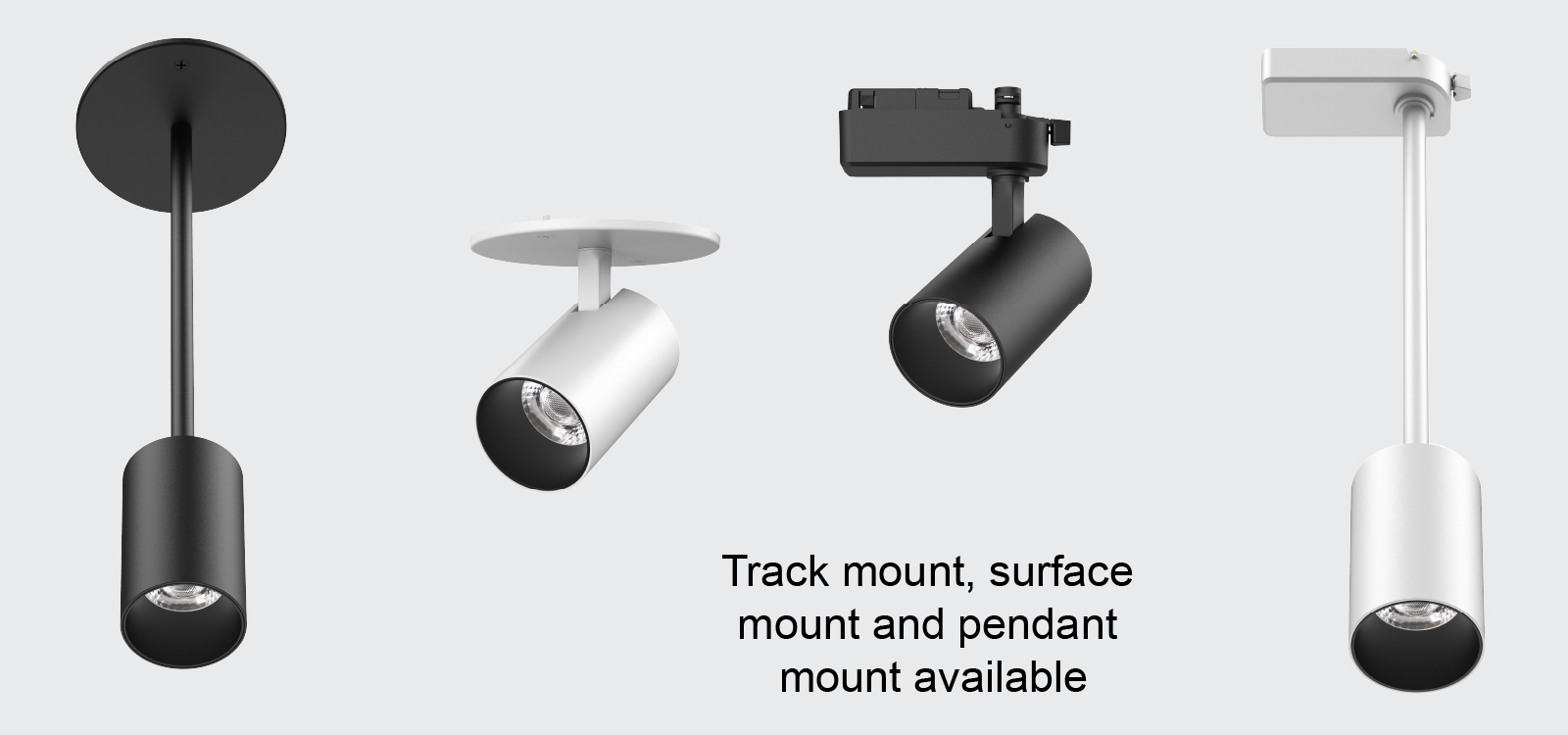

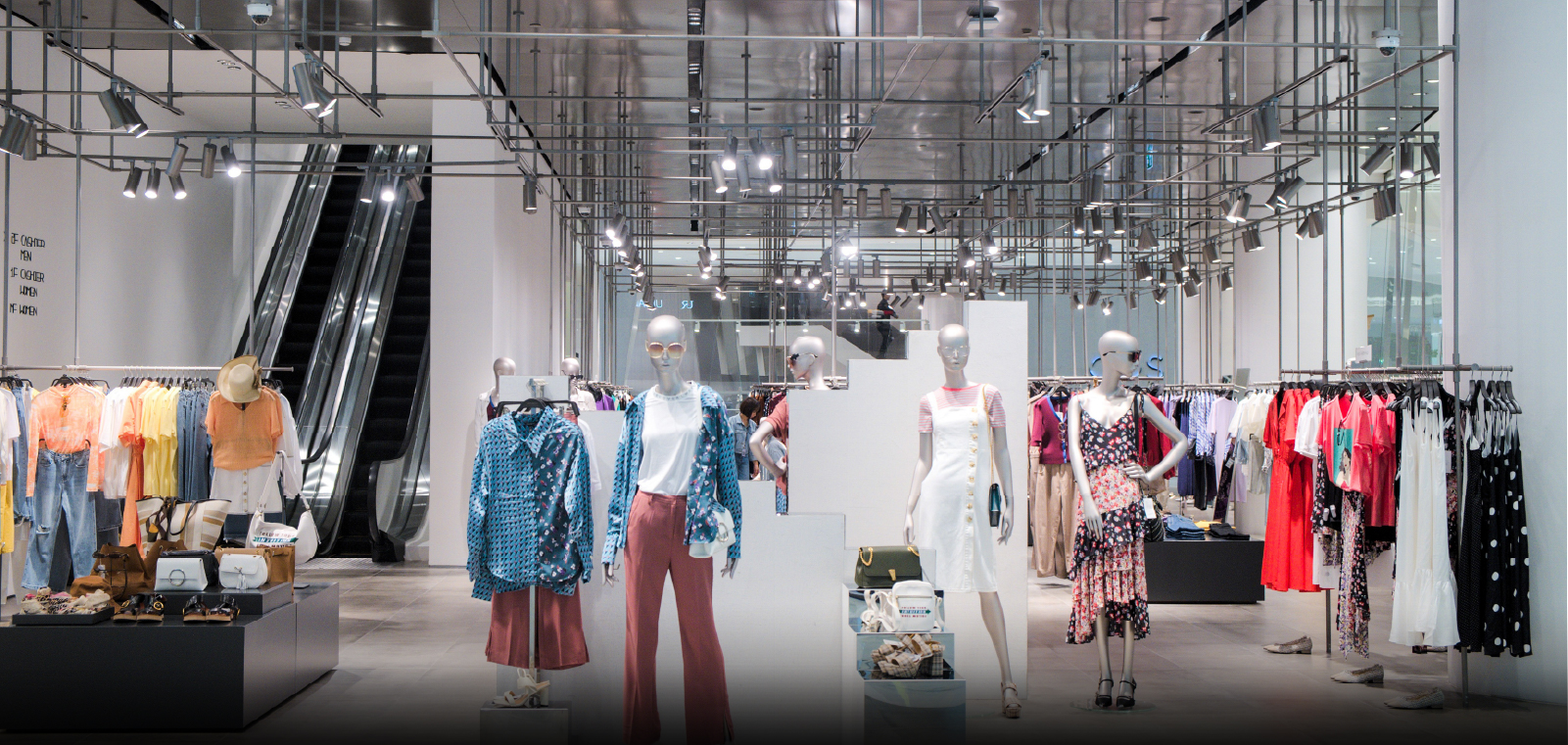

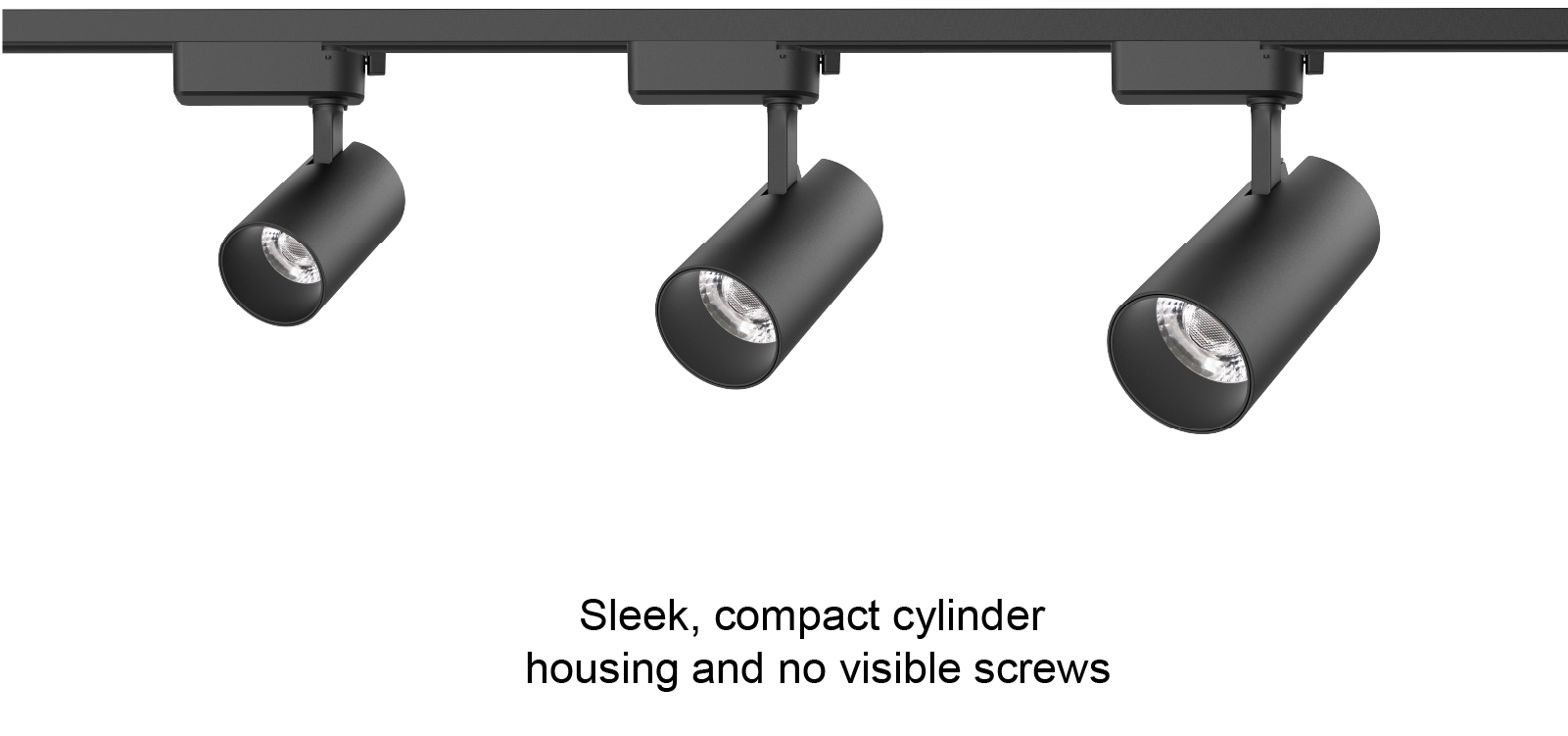

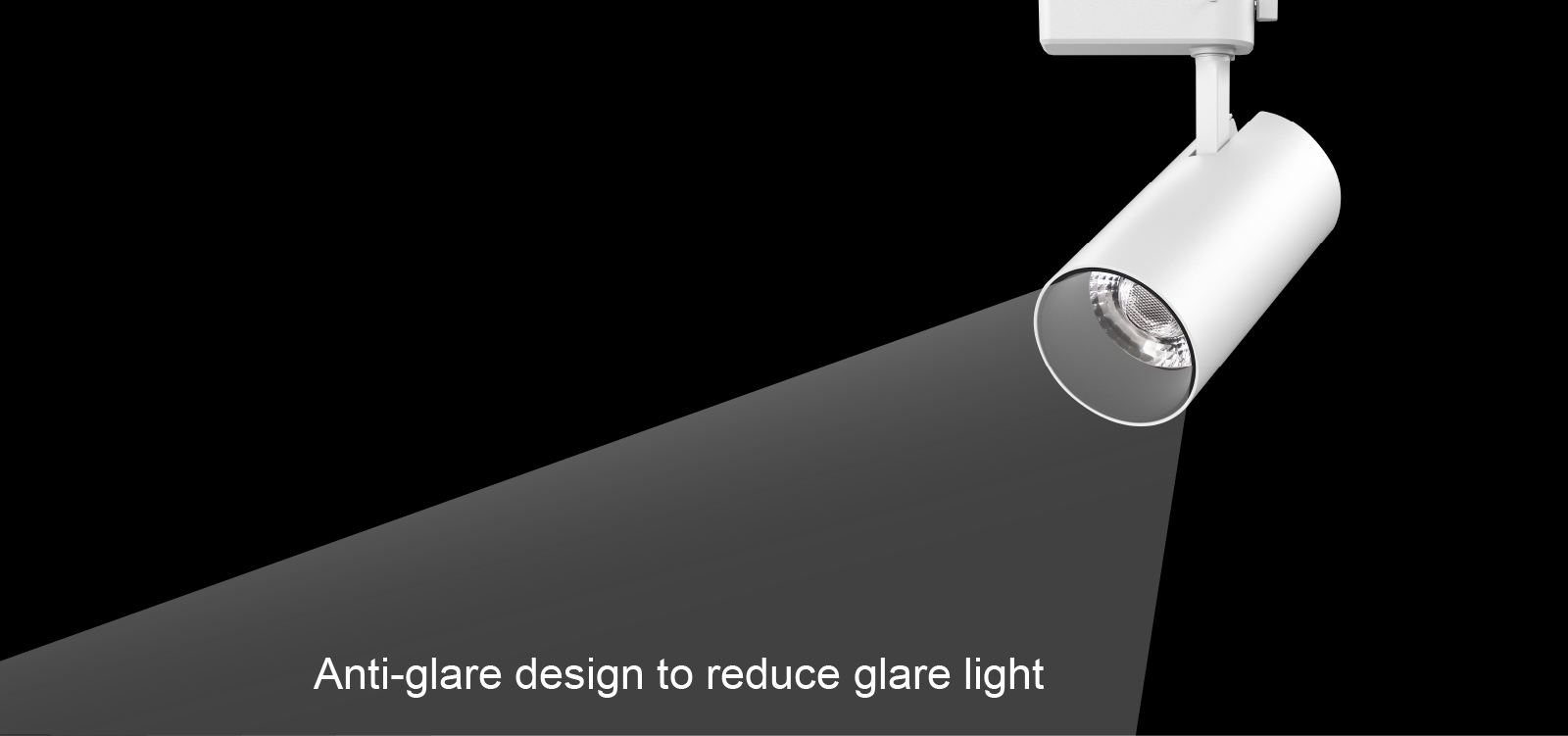

This architectural Magic Cylinder Light is designed for accent lighting and features a state-of-the-art design. Thanks to the detachable tool-less modular design, the luminaire can be used as commercial pendant light, surface mounted light, monopoint spotlight, and track light. The anti-glare design allows for ideal control of visual comfort. It is widely used in shops and other commercial applications.
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(FL) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

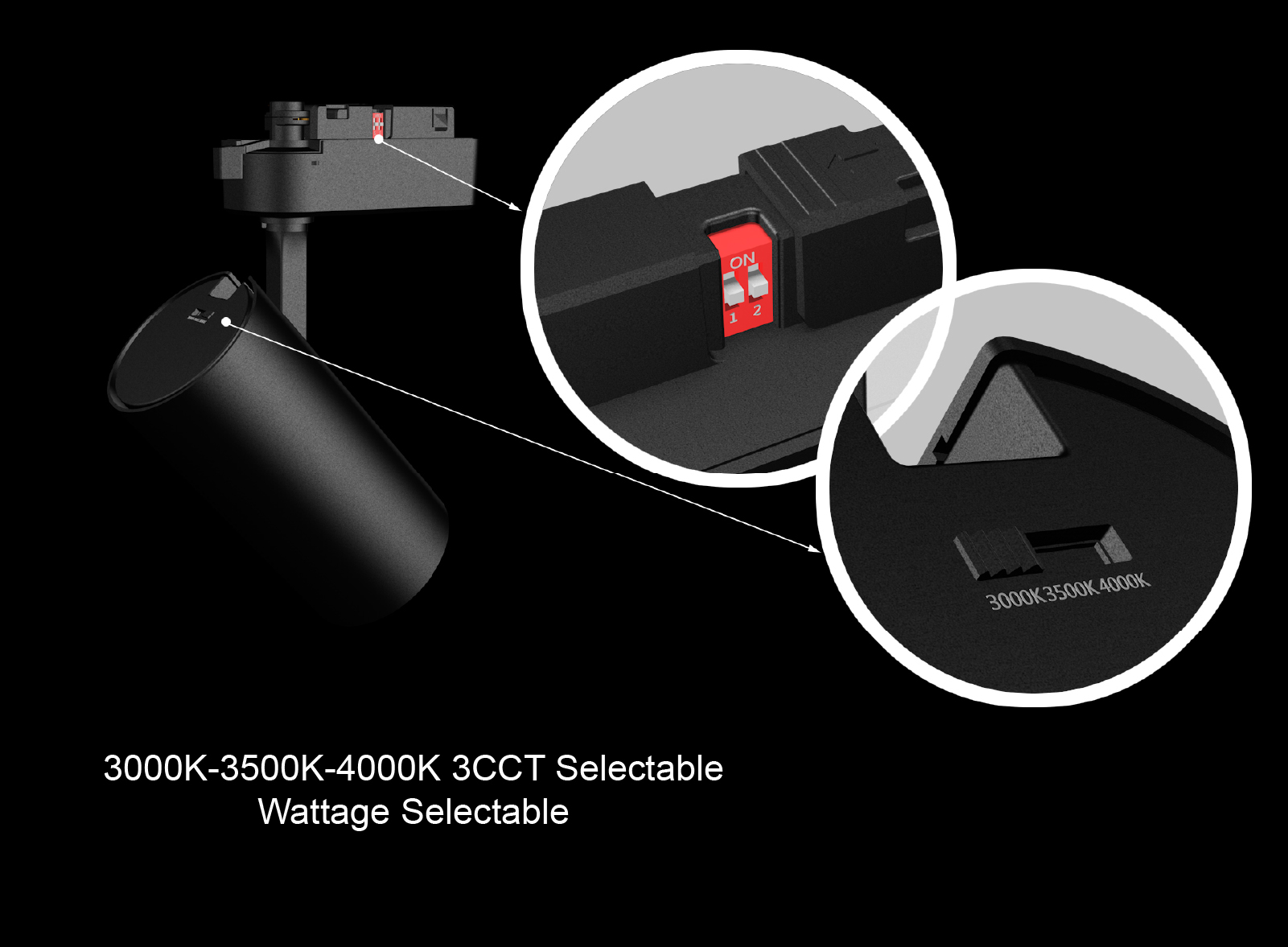

| SMCL-25SP-SW904-15-PMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17819 |
| SMCL-25SP-SW904-24-PMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17820 |
| SMCL-25SP-SW904-36-PMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17821 |
| SMCL-25SP-SW904-50-PMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17822 |
| SMCL-25SP-SW904-15-SMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17831 |
| SMCL-25SP-SW904-24-SMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17832 |
| SMCL-25SP-SW904-36-SMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17833 |
| SMCL-25SP-SW904-50-SMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17834 |
| SMCL-25SP-SW904-15-HTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17843 |
| SMCL-25SP-SW904-24-HTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17844 |
| SMCL-25SP-SW904-36-HTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17845 |
| SMCL-25SP-SW904-50-HTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17846 |
| SMCL-25SP-SW904-15-JTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17855 |
| SMCL-25SP-SW904-24-JTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17856 |
| SMCL-25SP-SW904-36-JTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17857 |
| SMCL-25SP-SW904-50-JTMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17858 |
| SMCL-25SP-SW904-15-HTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17867 |
| SMCL-25SP-SW904-24-HTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17868 |
| SMCL-25SP-SW904-36-HTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17869 |
| SMCL-25SP-SW904-50-HTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17870 |
| SMCL-25SP-SW904-15-JTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 15 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17879 |
| SMCL-25SP-SW904-24-JTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 24 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17880 |
| SMCL-25SP-SW904-36-JTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1700 | 3000/3500/4000K | 90 | 36 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17881 |
| SMCL-25SP-SW904-50-JTPMK-MBK | 120 | 15W/20W25W | / | Triac dimming | 1400 | 3000/3500/4000K | 90 | 50 degree | Ø2.76"- 5.31" | Black | 20 | Alumilum | ETL | 50000 | 17882 |
| SMCL-35SP-SW904-15-PMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17823 |
| SMCL-35SP-SW904-24-PMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17824 |
| SMCL-35SP-SW904-36-PMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17825 |
| SMCL-35SP-SW904-50-PMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17826 |
| SMCL-35SP-SW904-15-SMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17835 |
| SMCL-35SP-SW904-24-SMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17836 |
| SMCL-35SP-SW904-36-SMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17837 |
| SMCL-35SP-SW904-50-SMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17838 |
| SMCL-35SP-SW904-15-HTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17847 |
| SMCL-35SP-SW904-24-HTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17848 |
| SMCL-35SP-SW904-36-HTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17849 |
| SMCL-35SP-SW904-50-HTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17850 |
| SMCL-35SP-SW904-15-JTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17859 |
| SMCL-35SP-SW904-24-JTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17860 |
| SMCL-35SP-SW904-36-JTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17861 |
| SMCL-35SP-SW904-50-JTMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17862 |
| SMCL-35SP-SW904-15-HTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17871 |
| SMCL-35SP-SW904-24-HTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17872 |
| SMCL-35SP-SW904-36-HTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17873 |
| SMCL-35SP-SW904-50-HTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17874 |
| SMCL-35SP-SW904-15-JTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 15 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17883 |
| SMCL-35SP-SW904-24-JTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 24 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17884 |
| SMCL-35SP-SW904-36-JTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2800 | 3000/3500/4000K | 90 | 36 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17885 |
| SMCL-35SP-SW904-50-JTPMK-MBK | 120 | 25W/30W35W | / | Triac dimming | 2200 | 3000/3500/4000K | 90 | 50 degree | Ø3.15"- 6.3" | Black | 20 | Alumilum | ETL | 50000 | 17886 |
