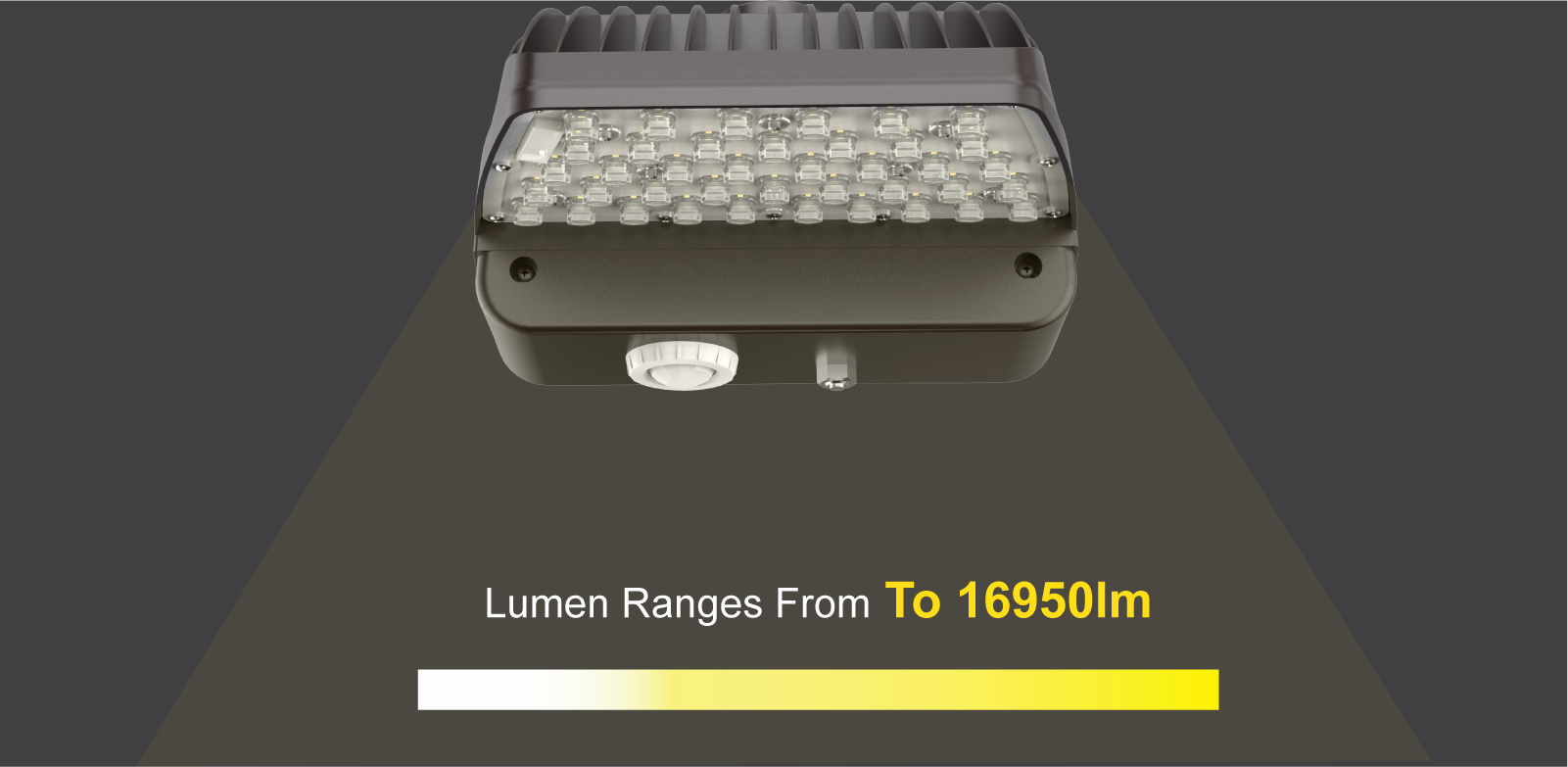

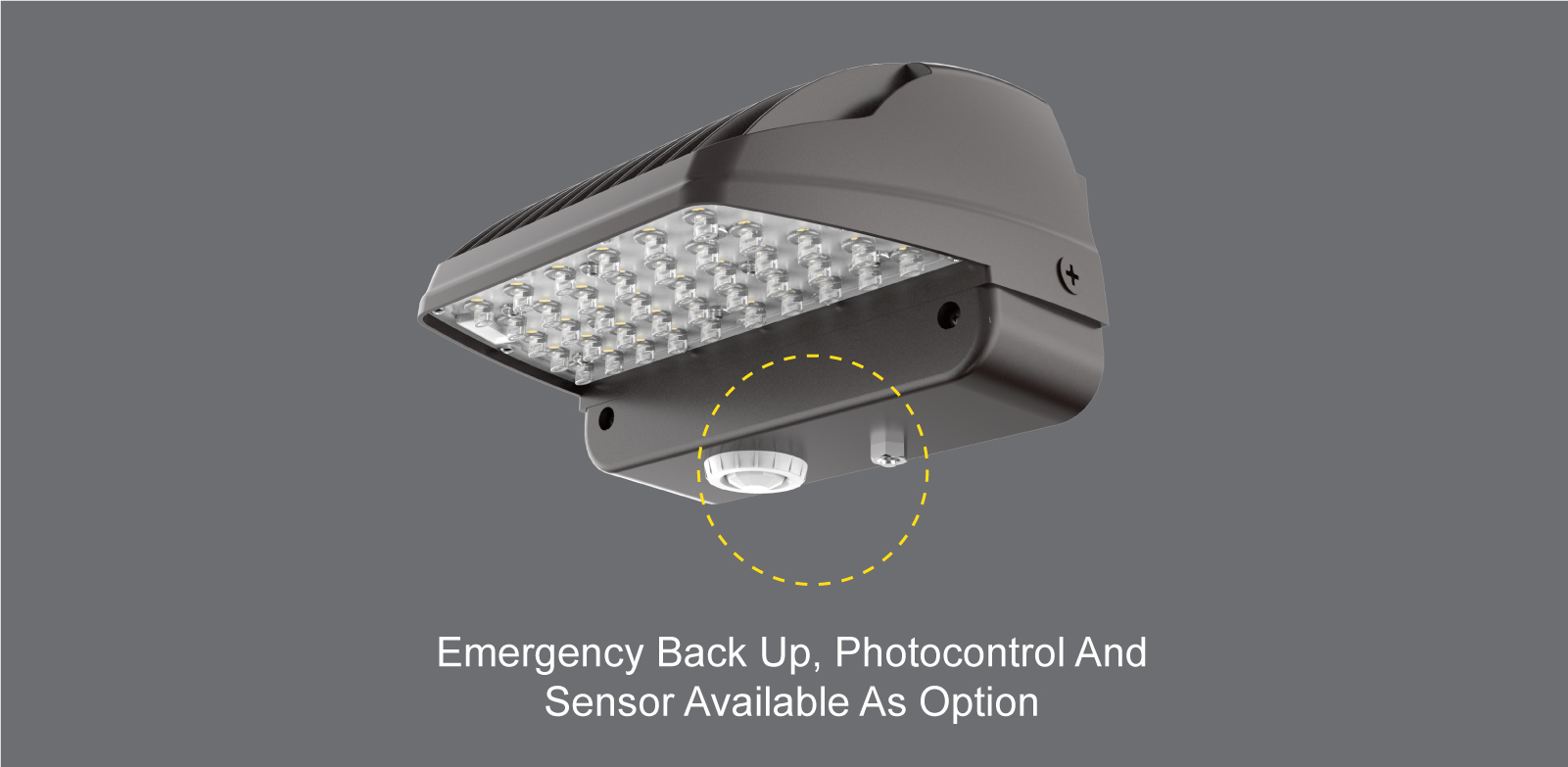

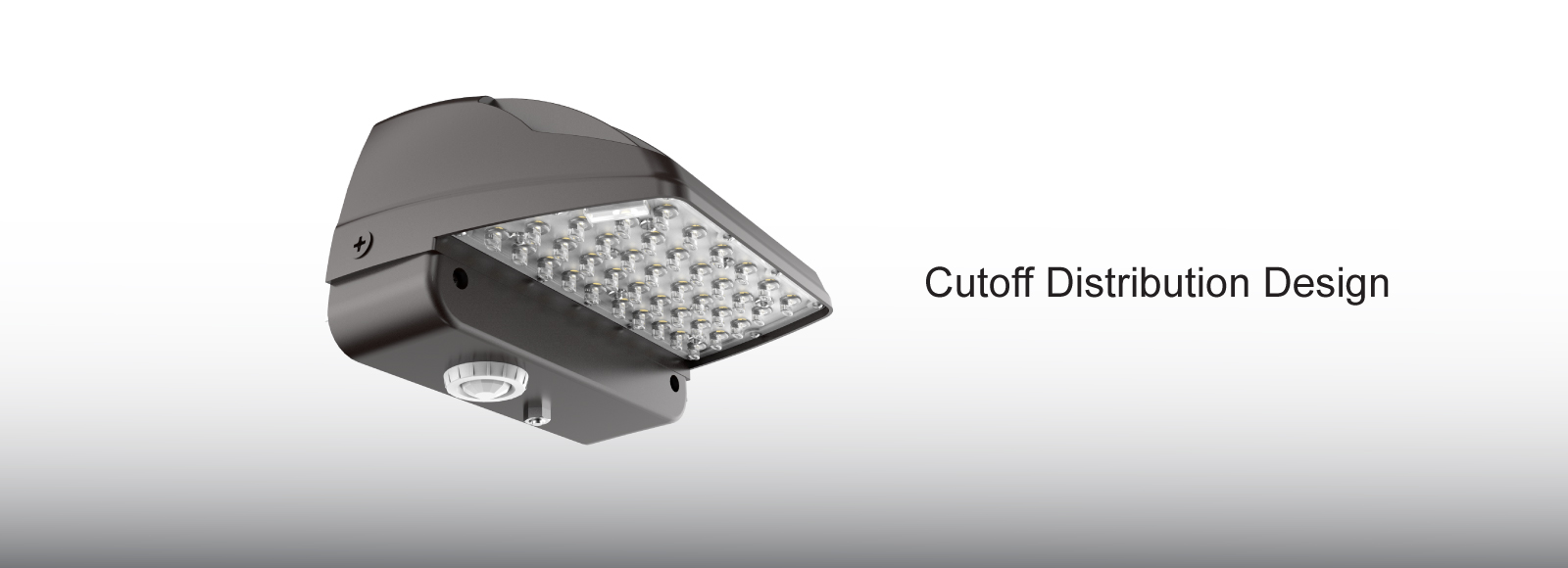

The AKT LED wall pack features cutoff distribution, die-cast aluminum housing with integrated heat sink for superior heat dissipation , and options for Emergency back-up, photocontrol, and sensor. Lumen ranges from 1500lm to 14400lm make this an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AKT-42SP-SW1-III-BK | 120-277 | 24W/30W/42W selectable | 50W-400W | Available | 5800lm@42W | 3000/4000/5000K | 70 | / | 10.1"-6.3"-5.5" | Black | 65 | aluminum | UL | 50000 | 17795 |
| AKT-42SP-SW1-PC-III-BK | 120-277 | 24W/30W/42W selectable | 50W-400W | photocell | 5800lm@42W | 3000/4000/5000K | 70 | / | 10.1"-6.3"-5.5" | Black | 65 | aluminum | UL | 50000 | 17887 |
| AKT-80SP-SW1-III-BK | 120-277 | 50W/60W/80W selectable | 50W-400W | Available | 11300lm@80W | 3000/4000/5000K | 70 | / | 12.6"-10"-7.5" | Black | 65 | aluminum | UL | 50000 | 17796 |
| AKT-80SP-SW1-PC-III-BK | 120-277 | 50W/60W/80W selectable | 50W-400W | photocell | 11300lm@80W | 3000/4000/5000K | 70 | / | 12.6"-10"-7.5" | Black | 65 | aluminum | UL | 50000 | 17888 |
| AKT-80SP-SW1-MS-III-BK | 120-277 | 50W/60W/80W selectable | 50W-400W | Sensor | 11300lm@80W | 3000/4000/5000K | 70 | / | 12.6"-10"-7.5" | Black | 65 | aluminum | UL | 50000 | 17890 |
| AKT-80SP-SW1-EBU-III-BK | 120-277 | 50W/60W/80W selectable | 50W-400W | Emergency battery back-up | 11300lm@80W | 3000/4000/5000K | 70 | / | 12.6"-10"-7.5" | Black | 65 | aluminum | UL | 50000 | 17892 |
| AKT-120SP-SW1-III-BK | 120-277 | 80W/100W/120W selectable | 50W-400W | Available | 16950lm@120W | 3000/4000/5000K | 70 | / | 15.7"-10.6"-8.1" | Black | 65 | aluminum | UL | 50000 | 17797 |
| AKT-120SP-SW1-PC-III-BK | 120-277 | 80W/100W/120W selectable | 50W-400W | photocell | 16950lm@120W | 3000/4000/5000K | 70 | / | 15.7"-10.6"-8.1" | Black | 65 | aluminum | UL | 50000 | 17889 |
| AKT-120SP-SW1-MS-III-BK | 120-277 | 80W/100W/120W selectable | 50W-400W | Sensor | 16950lm@120W | 3000/4000/5000K | 70 | / | 15.7"-10.6"-8.1" | Black | 65 | aluminum | UL | 50000 | 17891 |
| AKT-120SP-SW1-EBU-III-BK | 120-277 | 80W/100W/120W selectable | 50W-400W | Emergency battery back-up | 16950lm@120W | 3000/4000/5000K | 70 | / | 15.7"-10.6"-8.1" | Black | 65 | aluminum | UL | 50000 | 17893 |
