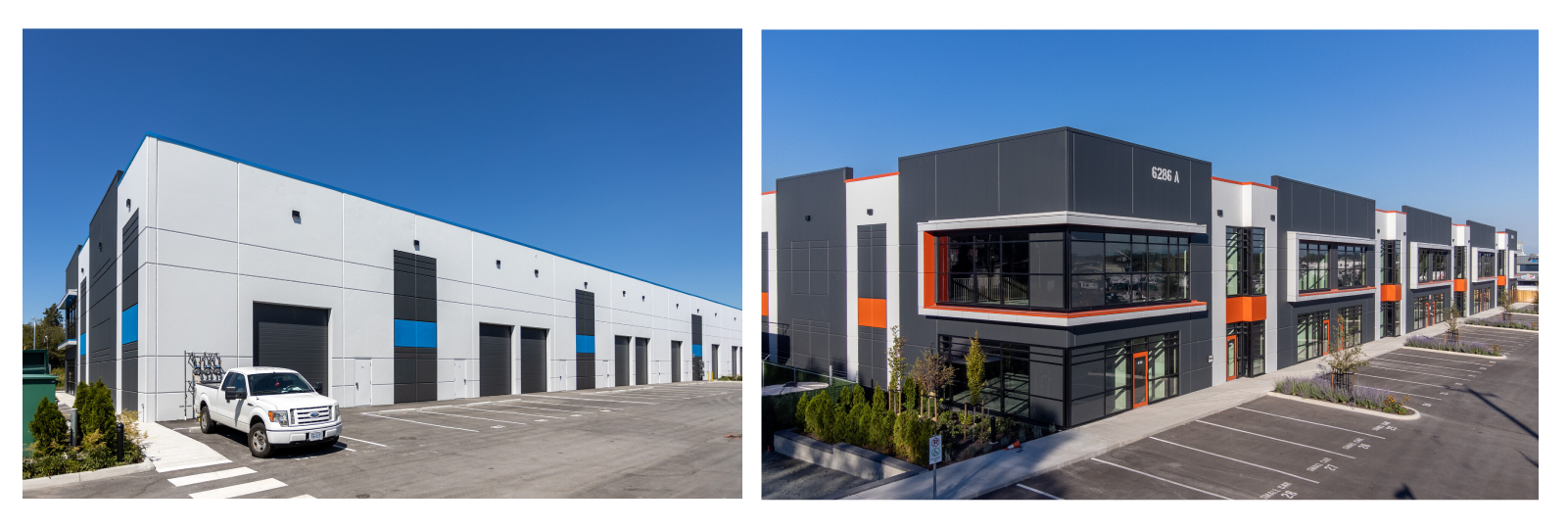

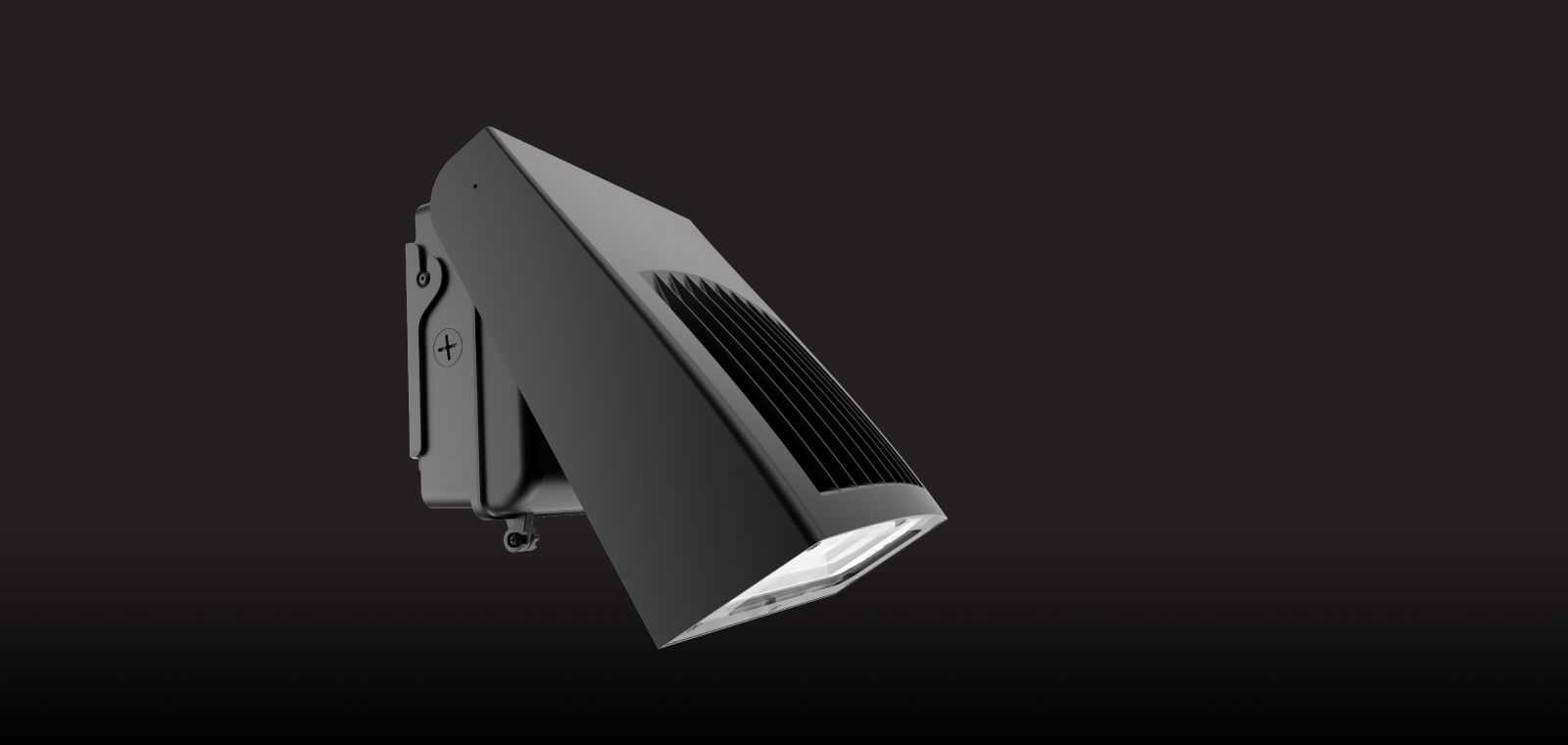

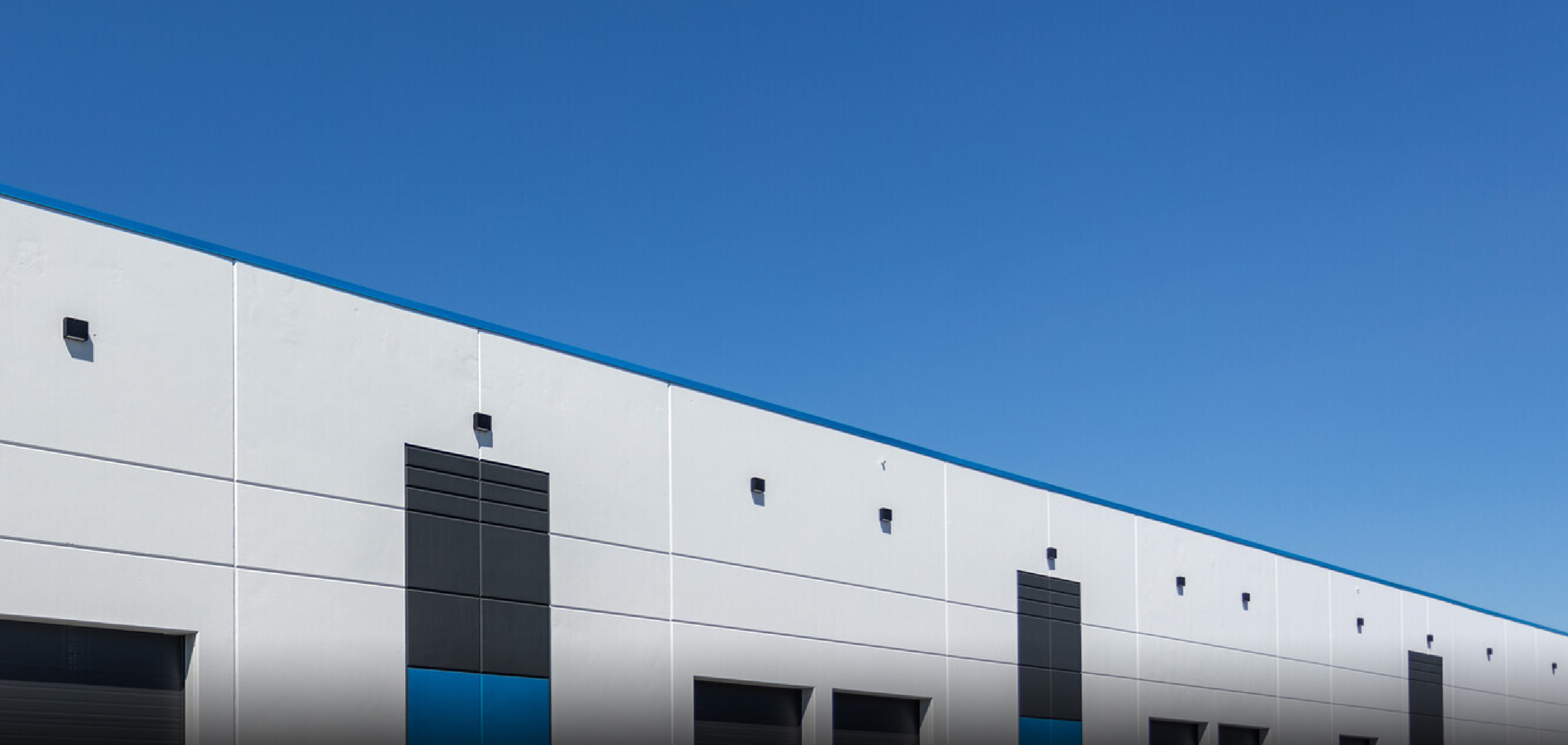

The selectable & adjustable architectural Slim Wall Packs, featured by wattage and CCT selectable. Injection die-cast aluminium housing. Tempered glass lens. Installation made simple and easy with a hinged junction box. Ideal for landscape, wall/surface, low level pathway, apartment buildings, schools, multi-use facilities.
| Spec Sheet | Selectable Slim Wall Pack Spec Sheet |
|---|---|
| IES Files | Selectable Slim Wall Pack IES Files |
| Tech Info | Selectable Slim Wall Pack Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSWP-SPS-SW8-MSW | 120-347 | 20/24 selectable | 150W | Sensor | 3200@24W in 4000K | 3000K/4000K/5000K selectable | ＞70 | / | 11.3-6.8-4.8 | Traditional Bronze | 65 | Aluminium | UL | 50000 | 16093 |
| SSWP-SPL-SW8-MSW | 120-347 | 40/60/75 selectable | 175-320W | Sensor | 9650@75W in 4000K | 3000K/4000K/5000K selectable | ＞70 | / | 11.7-9.3-6.2 | Traditional Bronze | 65 | Aluminium | UL | 50000 | 16094 |
