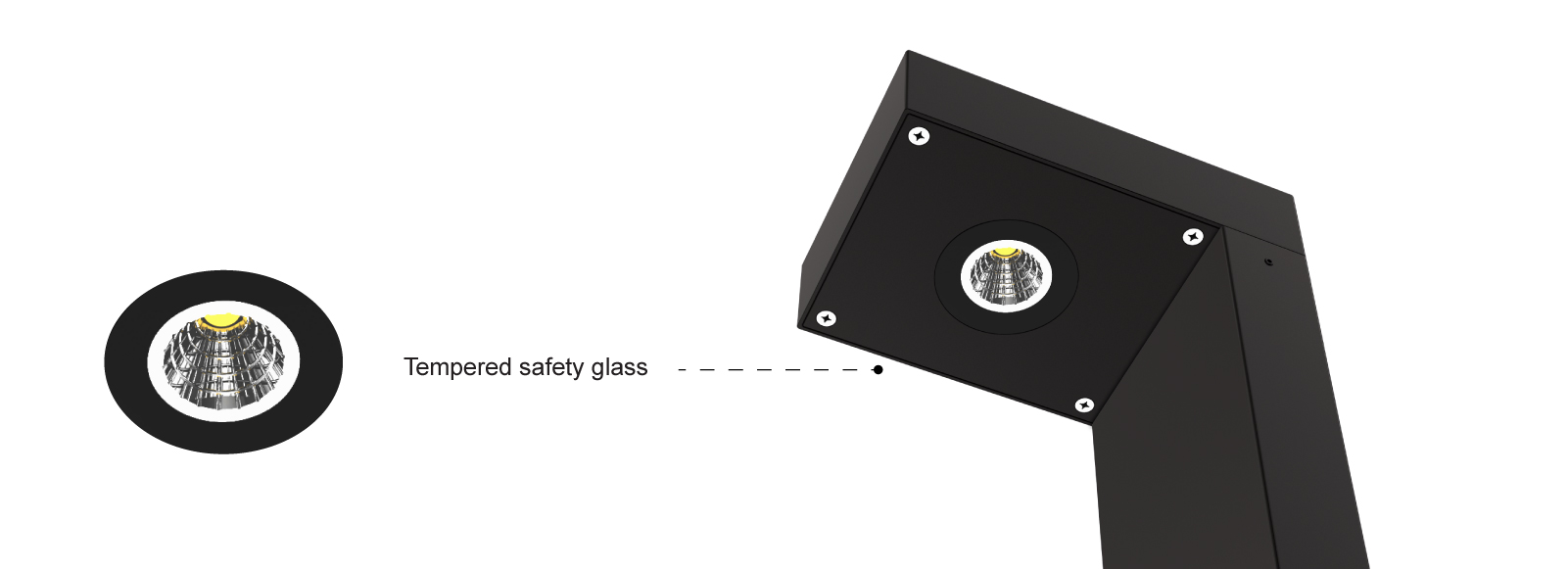

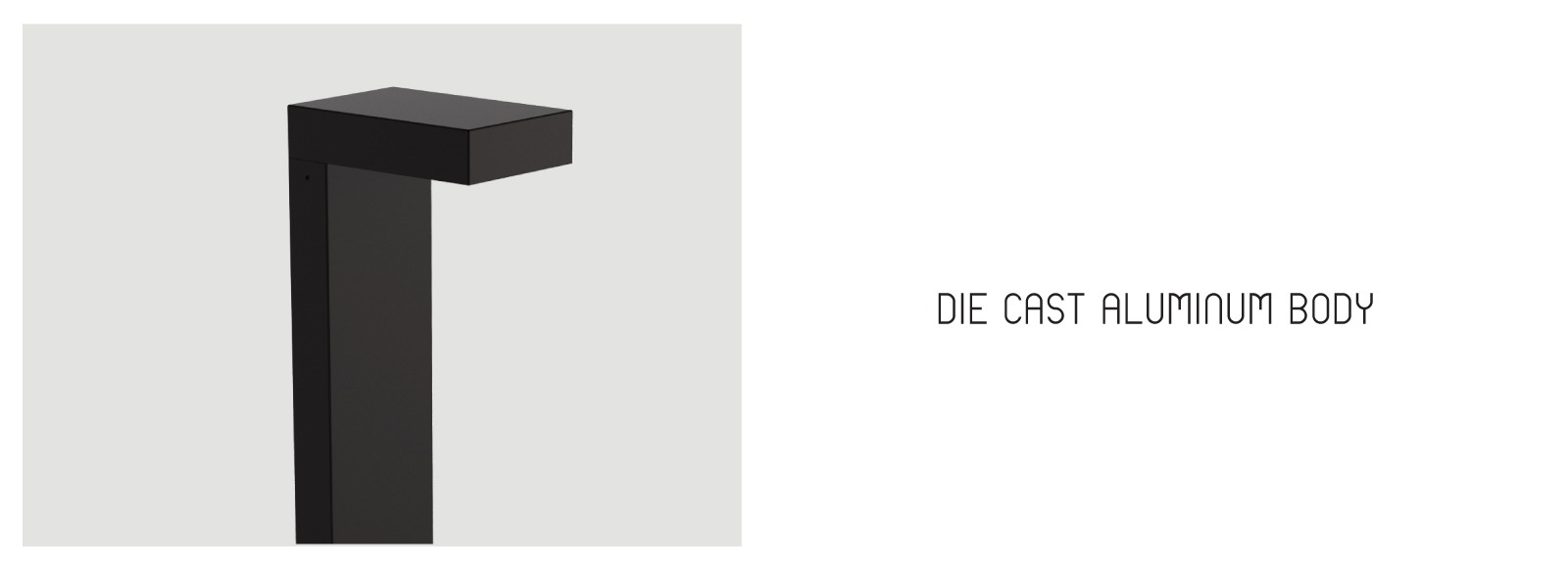

The MACK led bollard comes in simple and modern rectilinear design. This bollard has UV powder coated die cast high quality aluminum body, tempered safety glass, moulded silicone gasket and stainless steel screws. This bollard is an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | MACK LED Bollard--Small Base Spec Sheet |
|---|---|
| Manual | MACK LED Bollard Manual |
| IES | MACK LED Bollard IES |
| Brochure | Mack Series Brochure |
| Tech Info | MACK LED Bollard--Small Base Tech Info |
| Revit file | MACK LED Bollard--Small Base Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBD40H-10301-V-BK | 120-277 | 10 | 75W | Available | 900 | 3000 | 80 | V | 7.1"x4.72"x39.4" | Black | 65 | Aluminum | ETL | 50000 | 16803 |
| MBD40H-10401-V-BK | 120-277 | 10 | 75W | Available | 900 | 4000 | 80 | V | 7.1"x4.72"x39.4" | Black | 65 | Aluminum | ETL | 50000 | 16804 |
| MBDLB40H-10301-V-BK | 120-277 | 10 | 75W | Available | 900 | 3000 | 80 | V | 7.1"x4.72"x39.4" | Black | 65 | Aluminum | ETL | 50000 | 16813 |
| MBDLB40H-10401-V-BK | 120-277 | 10 | 75W | Available | 900 | 4000 | 80 | V | 7.1"x4.72"x39.4" | Black | 65 | Aluminum | ETL | 50000 | 16814 |
