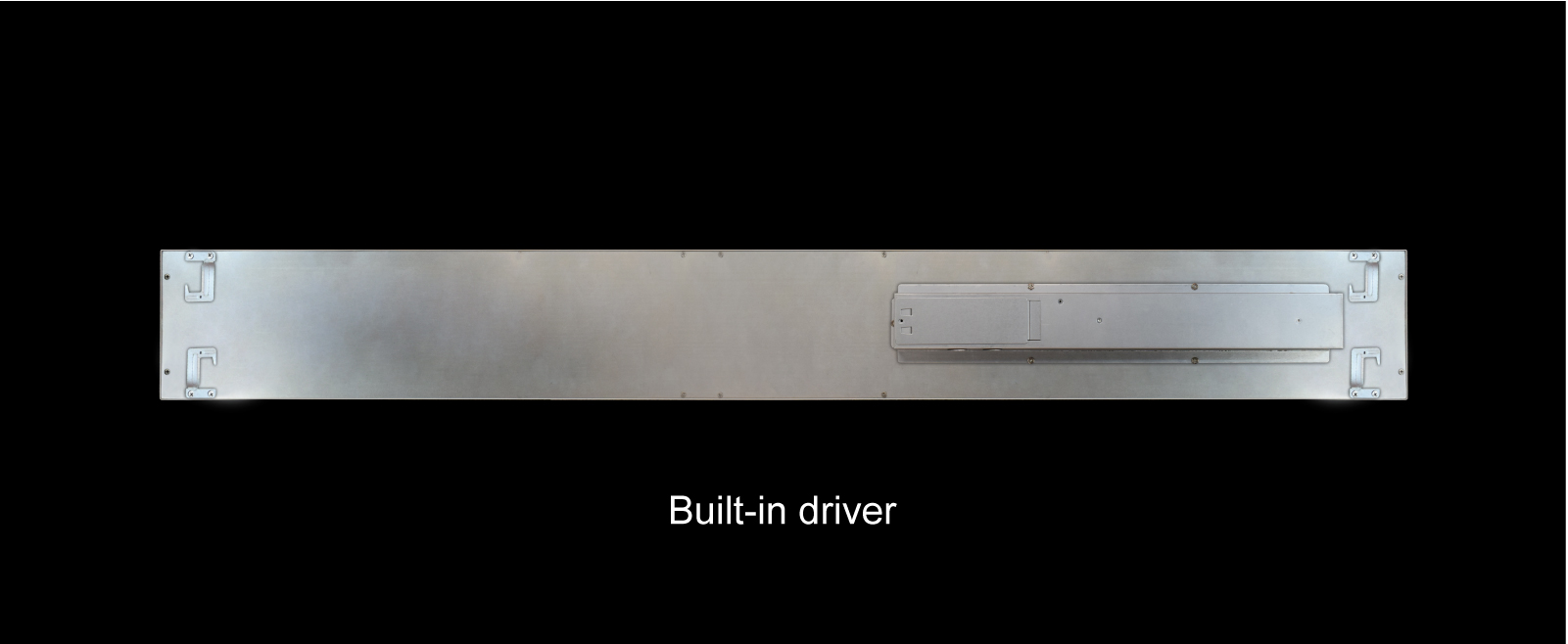

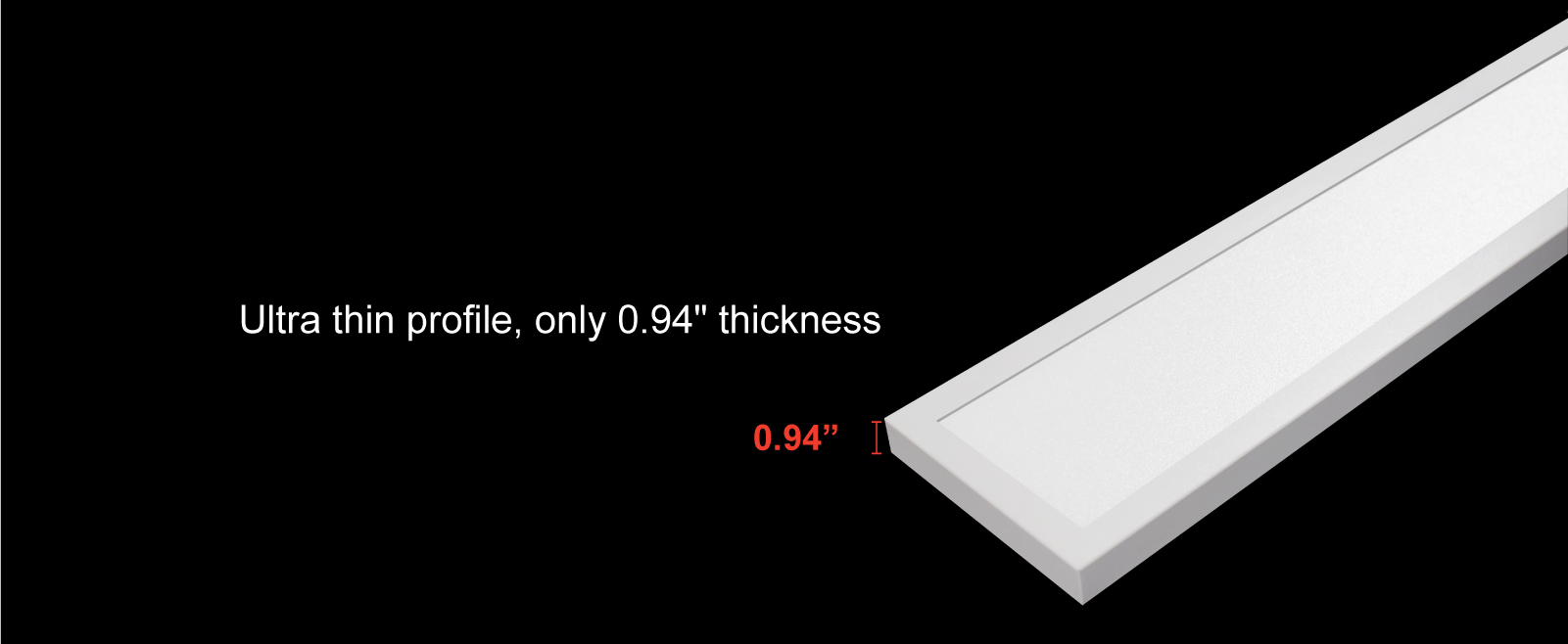

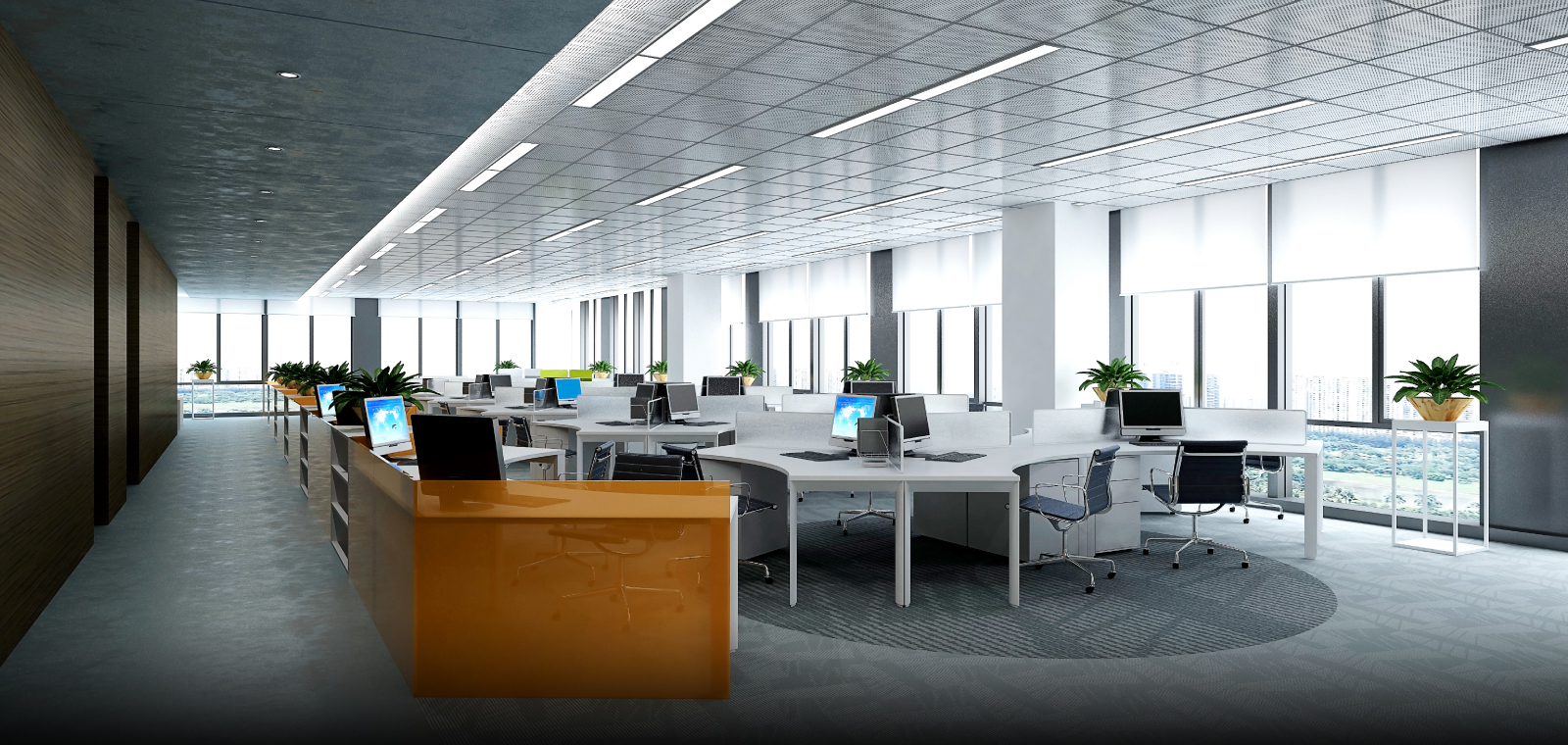

The Slender Linear Light is a sleek, ultra-thin (0.94") LED fixture designed for versatile applications in offices, schools, hospitals, and industrial spaces. Available in 4" or 6" widths and 2' or 4' lengths, it features selectable wattage (50%/75%/100%) and selectable CCT (3000K/3500K/ 4000K). It provides soft illumination, while a built-in driver and robust construction offer reliability.
| Spec Sheet | Slender Surface Linear Light Spec Sheet |
|---|---|
| IES | Slender Surface Linear Light IES |
| Instruction Manual | Slender Linear Light Manual |
| Tech Info | Slender Surface Linear Light Tech Info |
| Revit file | SLSM_2FT4FT_3500K4000K Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(FL) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLSM4-0620SW1-SM | 120-277 | 20W | / | 1-10V dimming | 1700 | 3000/3500/4000K | 80 | 110 degree | 23.6"- 4.25"-0.94" | white | 110 | Alumilum | UL | 50000 | 17930 |
| SLSM6-0620SW1-SM | 120-277 | 20W | / | 1-10V dimming | 1800 | 3000/3500/4000K | 80 | 110 degree | 23.6"- 5.75"-0.94" | white | 110 | Alumilum | UL | 50000 | 17932 |
| SLSM4-12SPSW1-SM | 120-277 | 40W selectable | / | 1-10V dimming | 3400 | 3000/3500/4000K | 80 | 110 degree | 47.76"- 4.25"-0.94" | white | 110 | Alumilum | UL | 50000 | 17931 |
| SLSM6-12SPSW1-SM | 120-277 | 40W selectable | / | 1-10V dimming | 3600 | 3000/3500/4000K | 80 | 110 degree | 47.76"- 5.75"-0.94" | white | 110 | Alumilum | UL | 50000 | 17933 |
