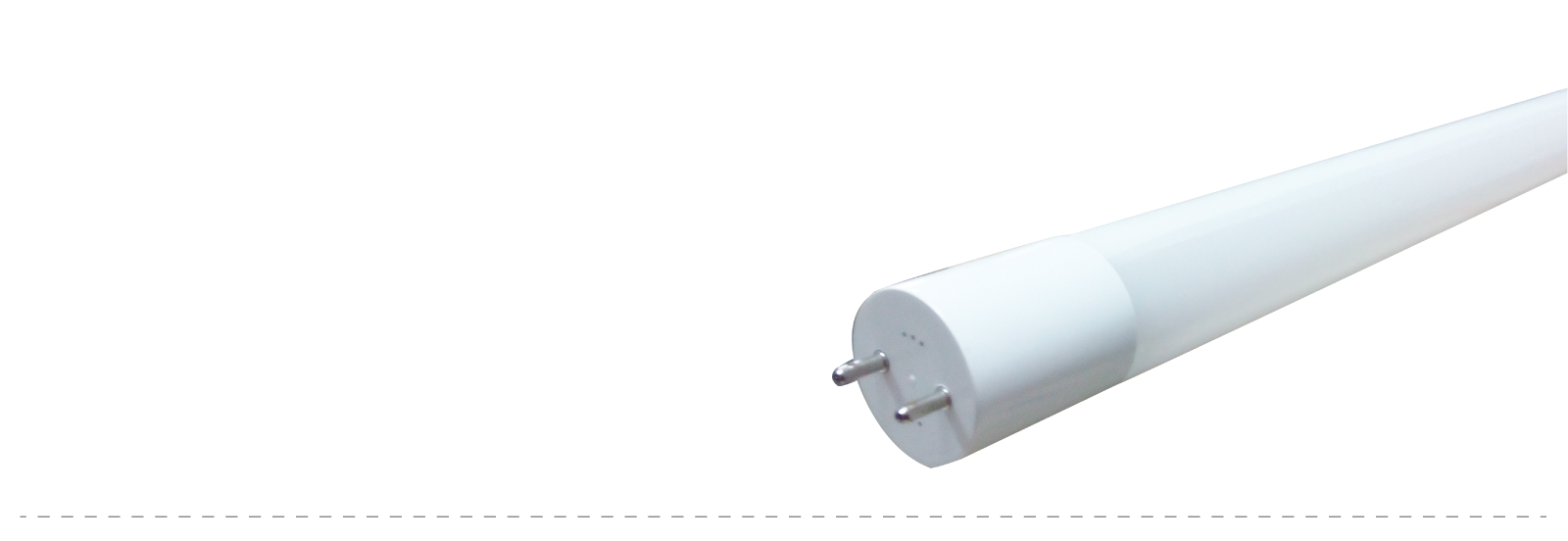

LED T8 Linear Replacement Lamps are the ideal energy saving choices when upgrading traditional linear. Compatible with electronic ballast.
| Spec Sheet | T8 Glass Compatible Tube Spec Sheet |
|---|---|
| Instruction Manual | T8 Glass Compatible Tube Manual |
| IES Files | T8 Glass Compatible Tube IES Files |
| Tech Info | T8 Glass Compatible Tube Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(FL) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | Base | Material | Compliance | Average Life Time(Hours) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T811409-FW12-GL | Compatible with electronic ballast | 11.5 | F32T8 | Base on the ballast | 1800 | 4000 | >80 | 160 | φ1-47.76 | White | G13 | Glass | UL/DLC | 50000 | 11632 |
| T811509-FW12-GL | Compatible with electronic ballast | 11.5 | F32T8 | Base on the ballast | 1800 | 5000 | >80 | 160 | φ1-47.76 | White | G13 | Glass | UL/DLC | 50000 | 11633 |
| T815409-FW12-GL | Compatible with electronic ballast | 15 | F32T8 | Base on the ballast | 2200 | 4000 | >80 | 160 | φ1-47.76 | White | G13 | Glass | UL/DLC | 50000 | 11634 |
| T815509-FW12-GL | Compatible with electronic ballast | 15 | F32T8 | Base on the ballast | 2200 | 5000 | >80 | 160 | φ1-47.76 | White | G13 | Glass | UL/DLC | 50000 | 11635 |
