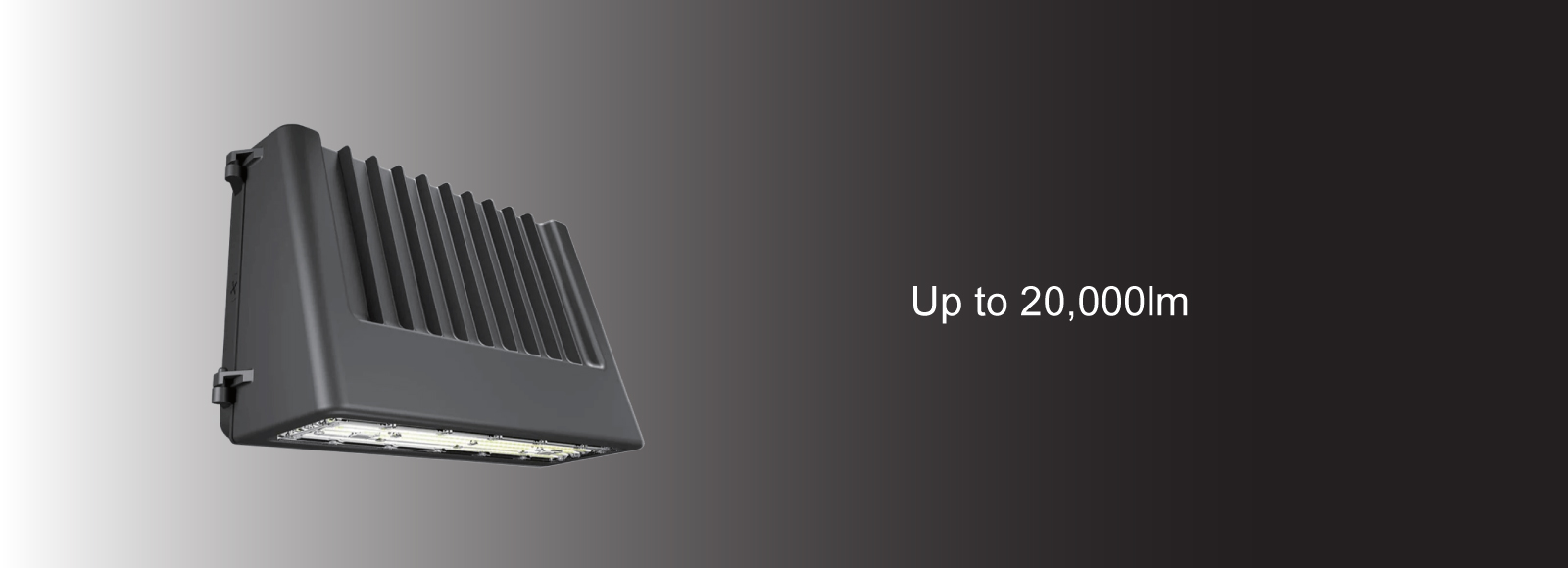

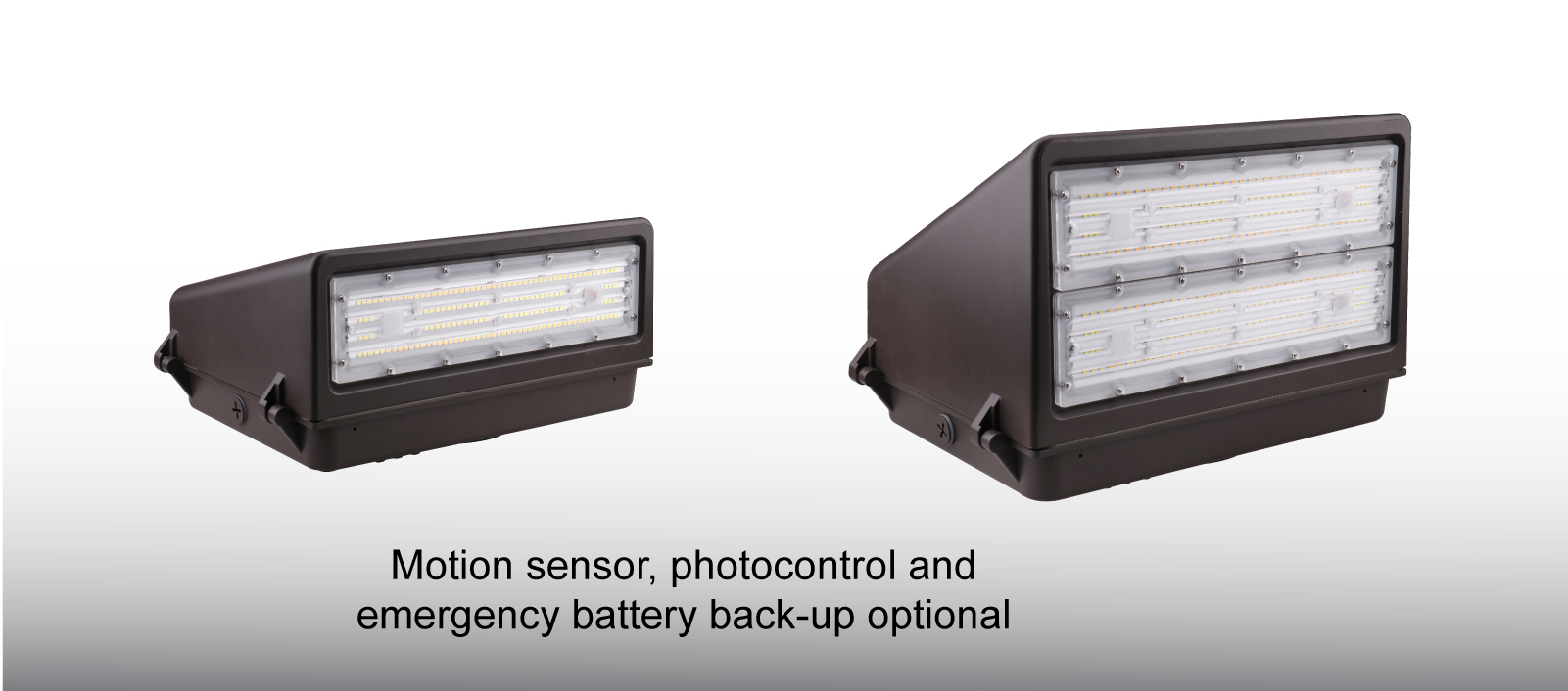

The Selectable dark sky wall pack features cutoff light distribution, and die-cast aluminum housing with integrated heat sink for superior heat dissipation. With options for Emergency back-up, photocontrol, and motion sensor, the NAR wall pack offers an ideal solution for landscape, wall/ surface, low level pathway, apartment building, school, and multi-use facility lighting.
| Spec Sheet | NAR LED WALL PACK Spec Sheet |
|---|---|
| IES | NAR LED WALL PACK IES |
| Instruction Manual | NAR LED WALL PACK Manual |
| Tech Info | NAR LED WALL PACK Tech Info |
| Revit file | NAR LED WALL PACK Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NAR-80SP-SW1-BK | 120-277 | 80W/60W/40W selectable | 50W-400W | Available | 10400lm@80W | 3000/4000/5000K | 70 | / | 14.2"-6.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17776 |
| NAR-80SP-SW1-EBU-BK | 120-277 | 80W/60W/40W selectable | 50W-400W | Emergency battery back-up | 10400lm@80W | 3000/4000/5000K | 70 | / | 14.2"-6.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17777 |
| NAR-80SP-SW1-PC-BK | 120-277 | 80W/60W/40W selectable | 50W-400W | photocell | 10400lm@80W | 3000/4000/5000K | 70 | / | 14.2"-6.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17778 |
| NAR-150SP-SW1-BK | 120-277 | 150W/120W/100W selectable | 50W-400W | Available | 20000lm@150W | 3000/4000/5000K | 70 | / | 14.2"-9.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17779 |
| NAR-150SP-SW1-EBU-BK | 120-277 | 150W/120W/100W selectable | 50W-400W | Emergency battery back-up | 20000lm@150W | 3000/4000/5000K | 70 | / | 14.2"-9.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17780 |
| NAR-150SP-SW1-PC-BK | 120-277 | 150W/120W/100W selectable | 50W-400W | photocell | 20000lm@150W | 3000/4000/5000K | 70 | / | 14.2"-9.6"-9.3" | Black | 65 | aluminum | UL | 50000 | 17781 |
