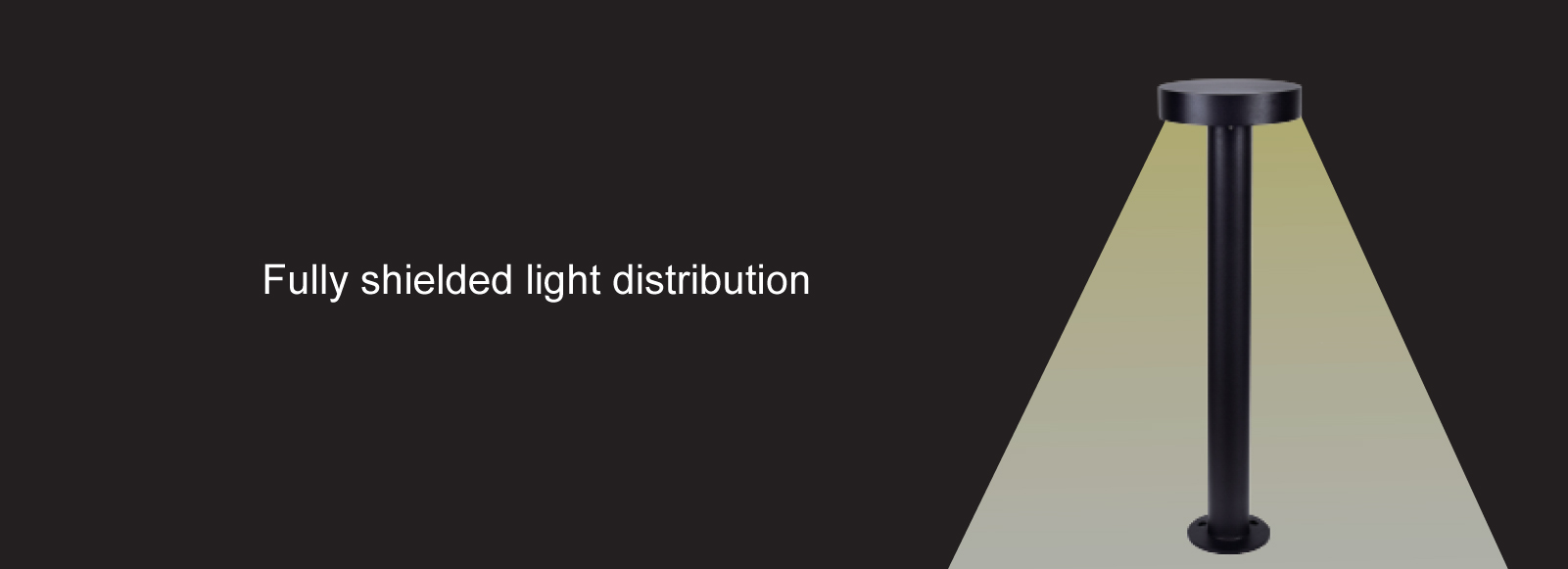

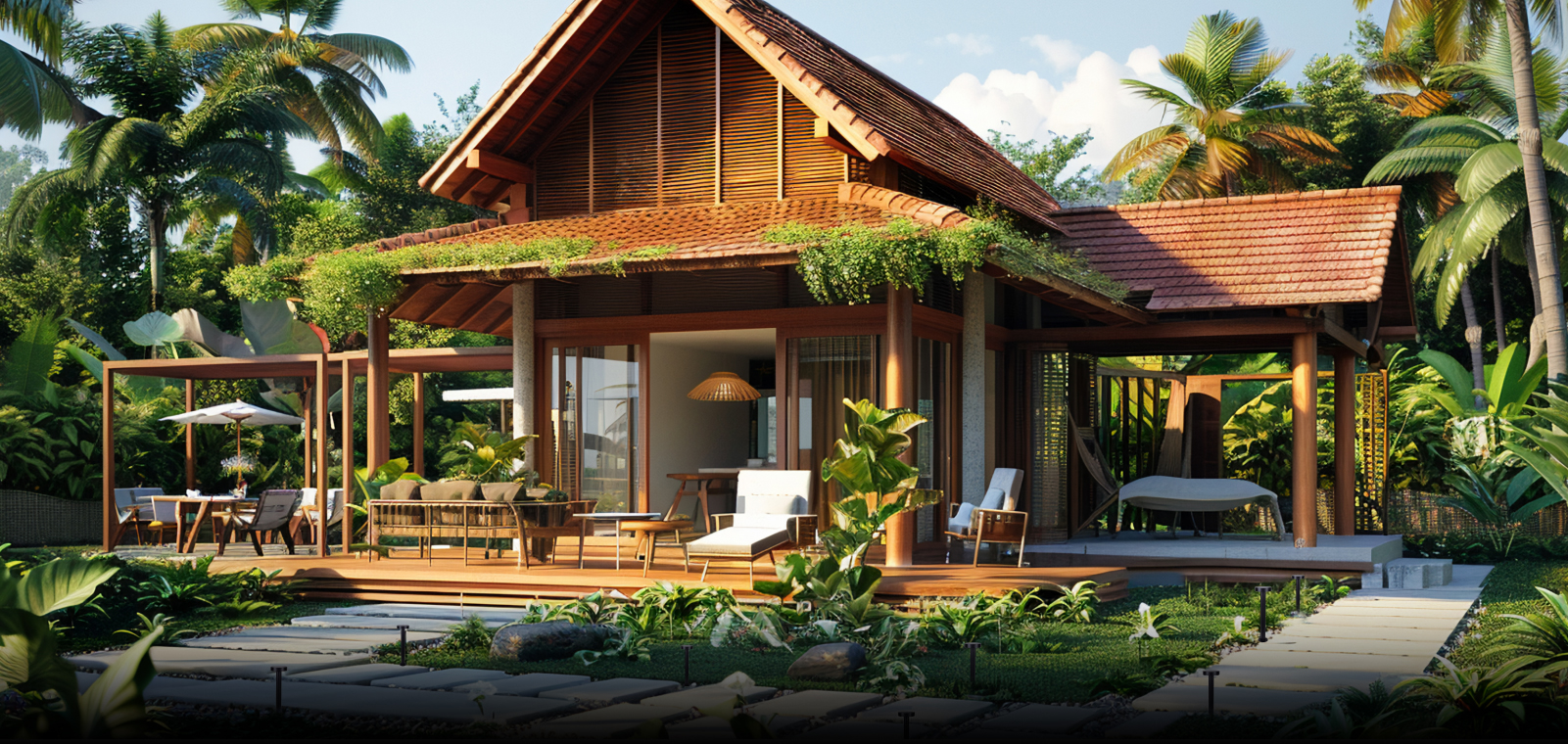

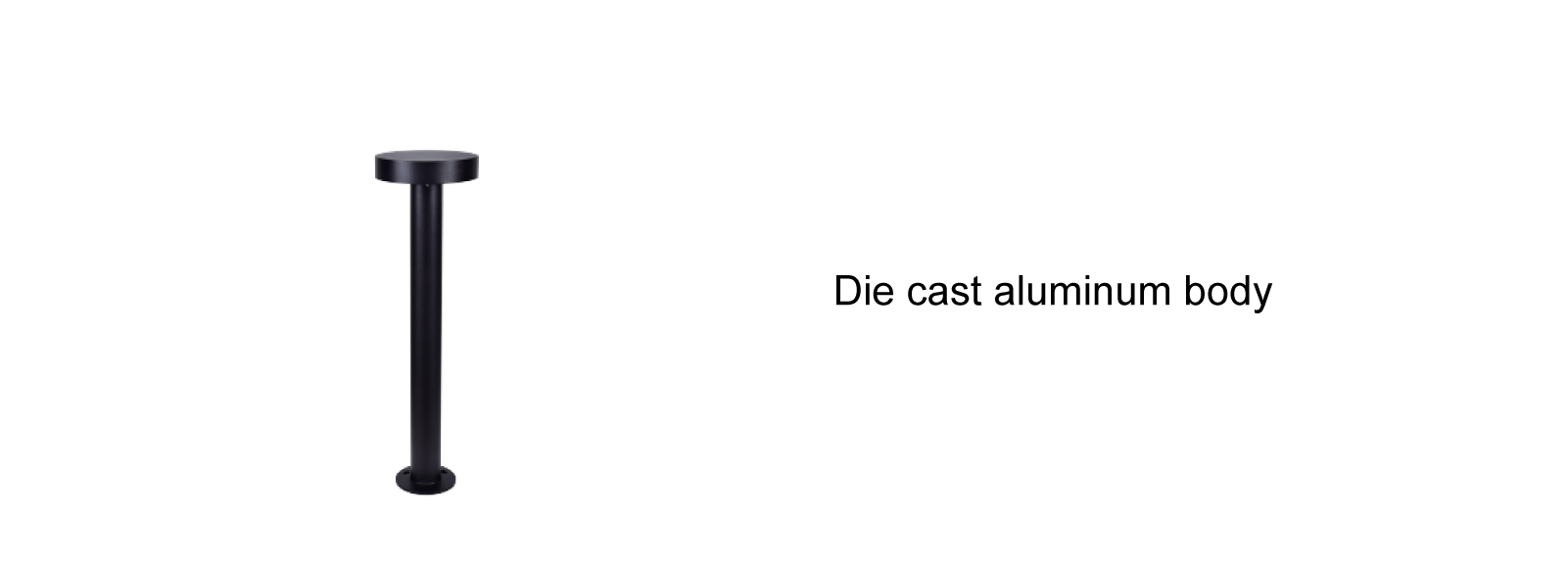

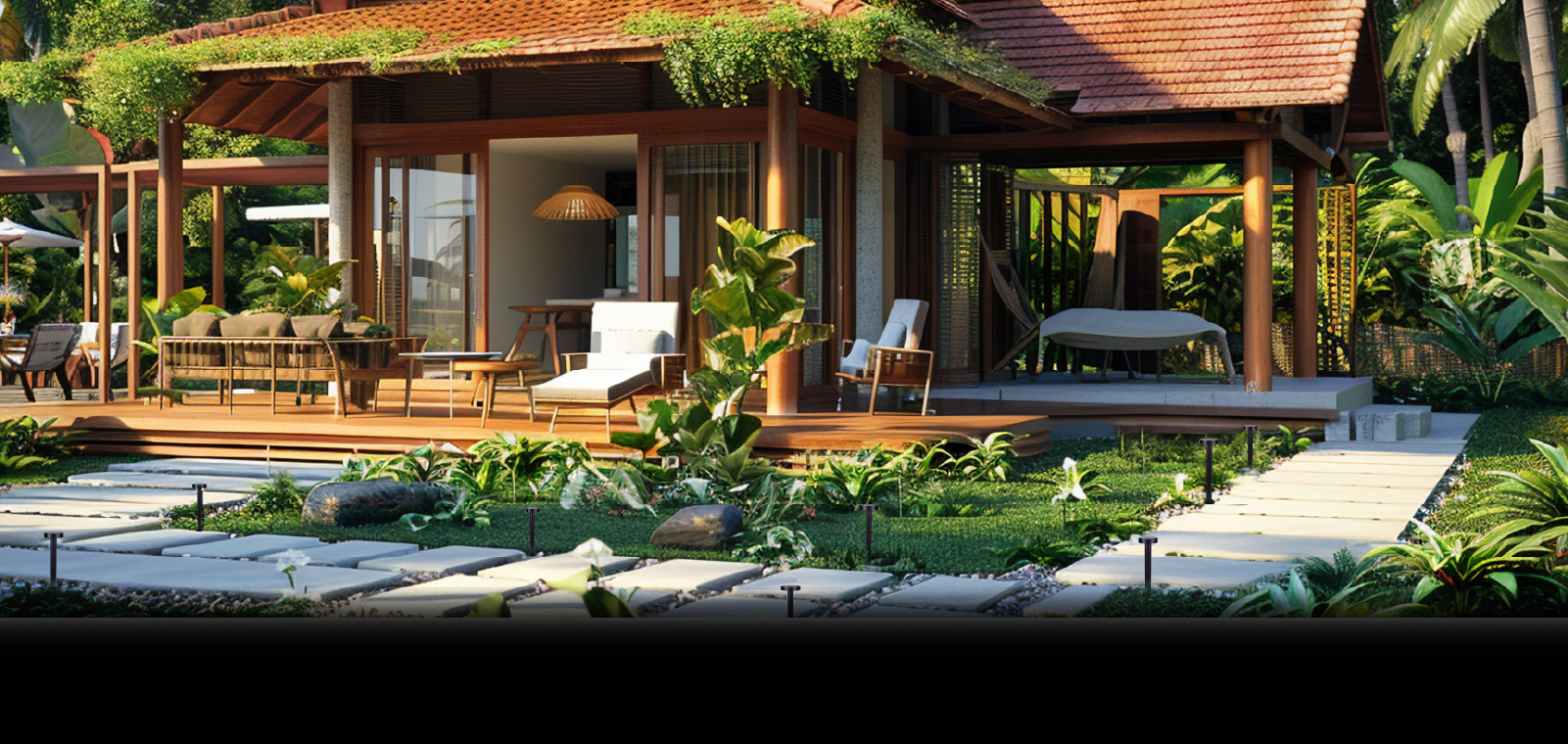

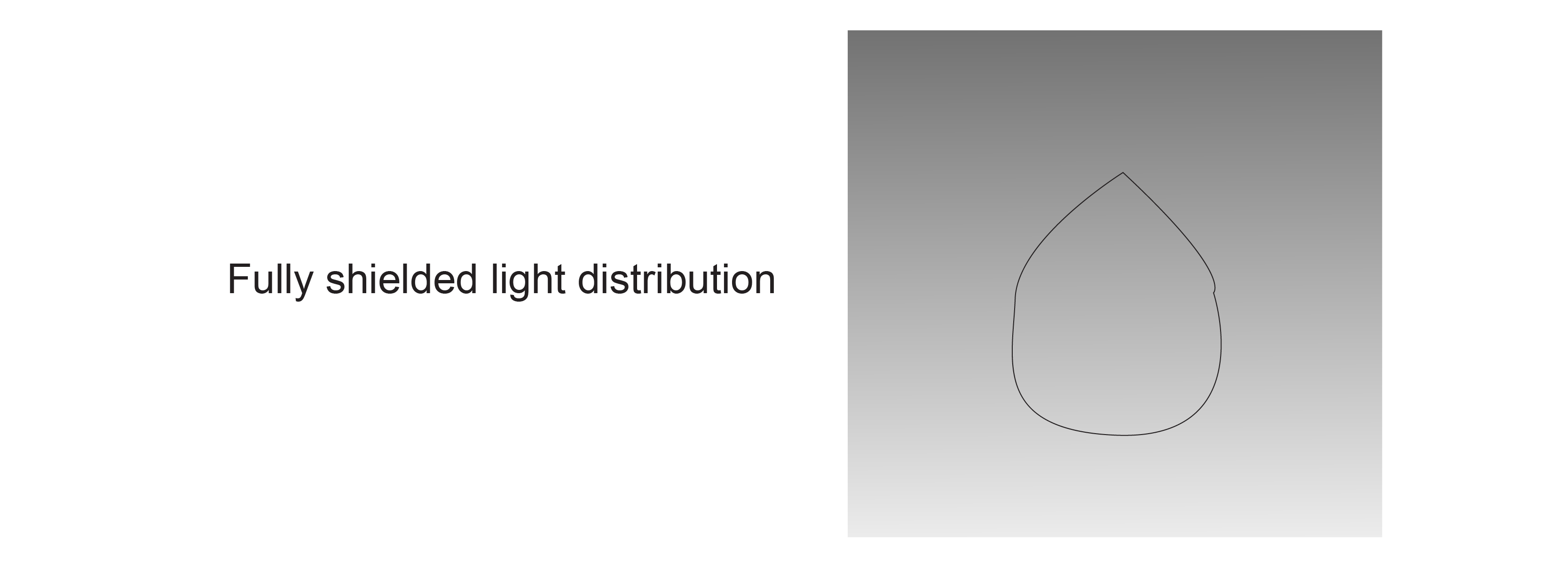

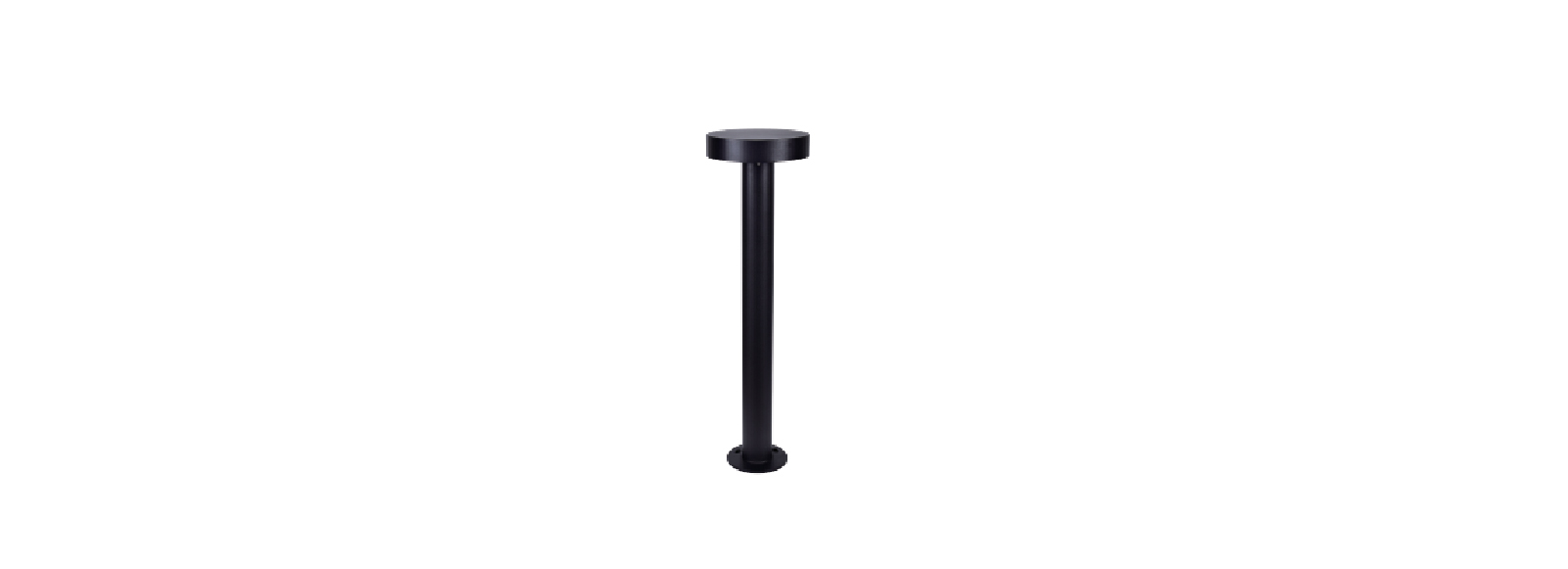

The DONUT led bollard has sleek and slim shape. It has fully shielded light distribution. This bollard has UV powder coated die cast high quality aluminum body, moulded silicone gasket and stainless steel screws. This bollard is an excellent choice for walkways, entrances, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | Donut LED Bollard Spec Sheet |
|---|---|
| IES | Donut LED Bollard IES |
| Instruction Manual | Donut LED Bollard Manual |
| Tech Info | Donut LED Bollard Tech Info |
| Drawing | Anchor bolt and base template dimensions |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DOBD22H-14301-BK | 120-277 | 14 | 50W | Available | 1100 | 3000 | 80 | / | 9.1"-21.6" | Black | 65 | Aluminium | ETL | 50000 | 18138 |
| DOBD22H-14401-BK | 120-277 | 14 | 50W | Available | 1100 | 4000 | 80 | / | 9.1"-21.6" | Black | 65 | Aluminium | ETL | 50000 | 18139 |
| DOBD38H-14301-BK | 120-277 | 14 | 50W | Available | 1100 | 3000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18144 |
| DOBD38H-14401-BK | 120-277 | 14 | 50W | Available | 1100 | 4000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18145 |
| DOBD22H-20301-BK | 120-277 | 20 | 75W | Available | 1580 | 3000 | 80 | / | 9.1"-21.6" | Black | 65 | Aluminium | ETL | 50000 | 18140 |
| DOBD22H-20401-BK | 120-277 | 20 | 75W | Available | 1580 | 4000 | 80 | / | 9.1"-21.6" | Black | 65 | Aluminium | ETL | 50000 | 18141 |
| DOBD38H-20301-BK | 120-277 | 20 | 75W | Available | 1580 | 3000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18146 |
| DOBD38H-20401-BK | 120-277 | 20 | 75W | Available | 1580 | 4000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18147 |
| DOBD22H-30301-BK | 120-277 | 30 | 100W | Available | 2100 | 3000 | 80 | / | 9.1"-21.6" | Black | 65 | Aluminium | ETL | 50000 | 18142 |
| DOBD22H-30401-BK | 120-277 | 30 | 100W | Available | 2100 | 4000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18143 |
| DOBD38H-30301-BK | 120-277 | 30 | 100W | Available | 2100 | 3000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18148 |
| DOBD38H-30401-BK | 120-277 | 30 | 100W | Available | 2100 | 4000 | 80 | / | 9.1"-37.4" | Black | 65 | Aluminium | ETL | 50000 | 18149 |
