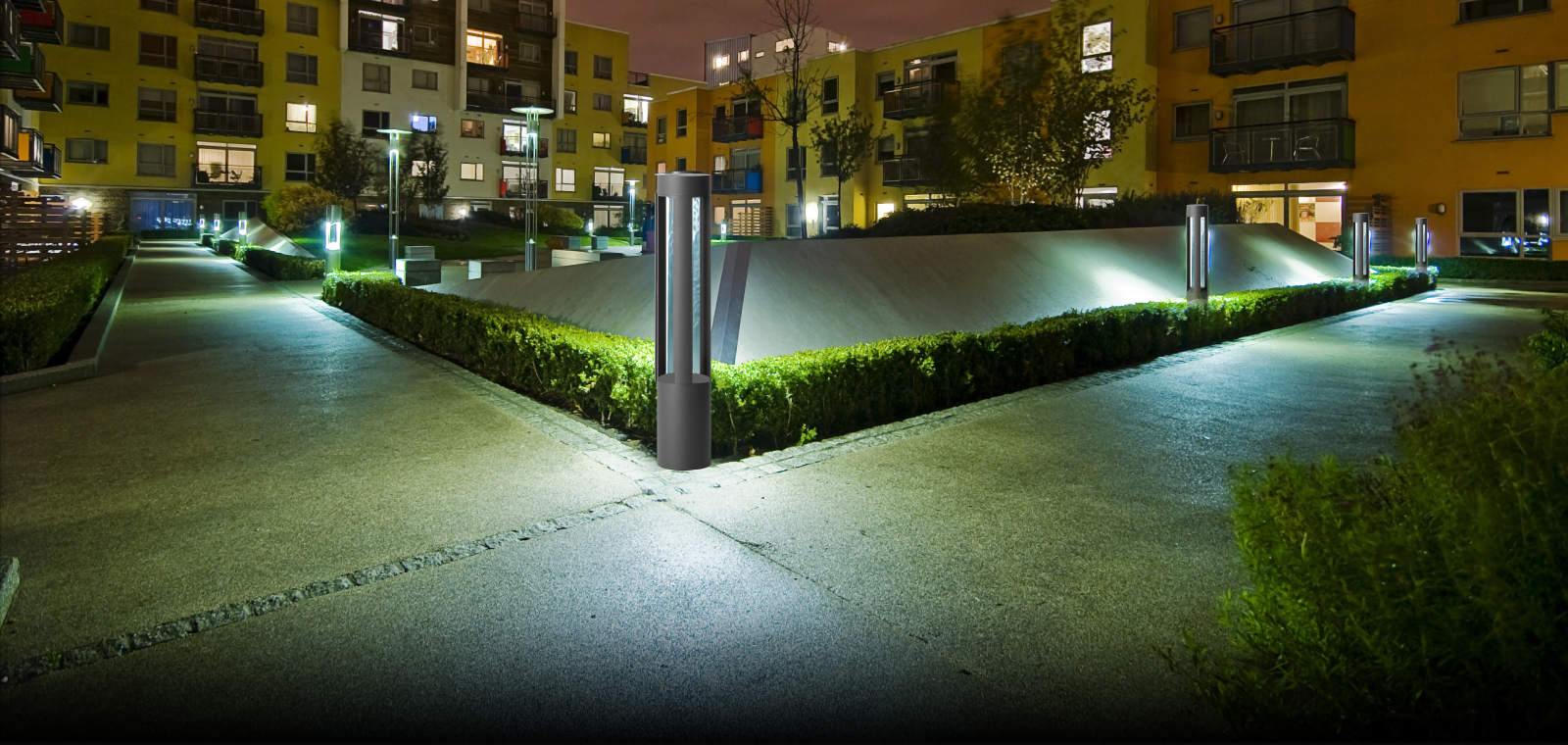

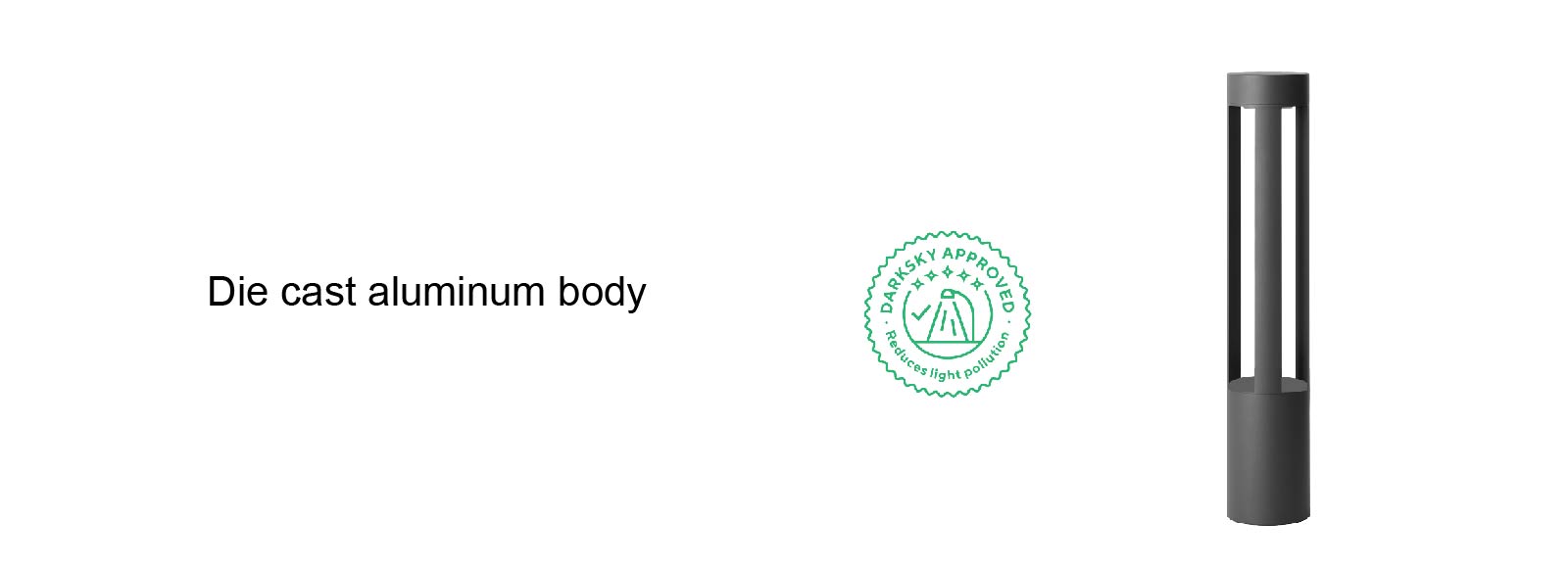

The Pillar round led bollard has UV powder coated die cast high quality aluminum body, tempered safety glass, moulded silicone gasket and stainless steel screws. This bollard is an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | Pillar Round LED Bollard Spec Sheet |
|---|---|
| IES | Pillar Round LED Bollard IES |
| Instruction Manual | Pillar Round LED Bollard Manual |
| Tech Info | Pillar Round LED Bollard Tech Info |
| Revit file | Pillar Round LED Bollard Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRBD40H-10301-V-BK | 120-277 | 10W | 50W | Available | 520 | 3000K | 80 | / | 6.3"-39.37" | Black | 65 | Aluminium | ETL | 50000 | 16964 |
| PRBD40H-10401-V-BK | 120-277 | 10W | 50W | Available | 520 | 4000K | 80 | / | 6.3"-39.37" | Black | 65 | Aluminium | ETL | 50000 | 16965 |
| PRBD40H-20301-V-BK | 120-277 | 20W | 100W | Available | 1700 | 3000K | 80 | / | 6.3"-39.37" | Black | 65 | Aluminium | ETL | 50000 | 17114 |
| PRBD40H-20401-V-BK | 120-277 | 20W | 100W | Available | 1700 | 4000K | 80 | / | 6.3"-39.37" | Black | 65 | Aluminium | ETL | 50000 | 17115 |
