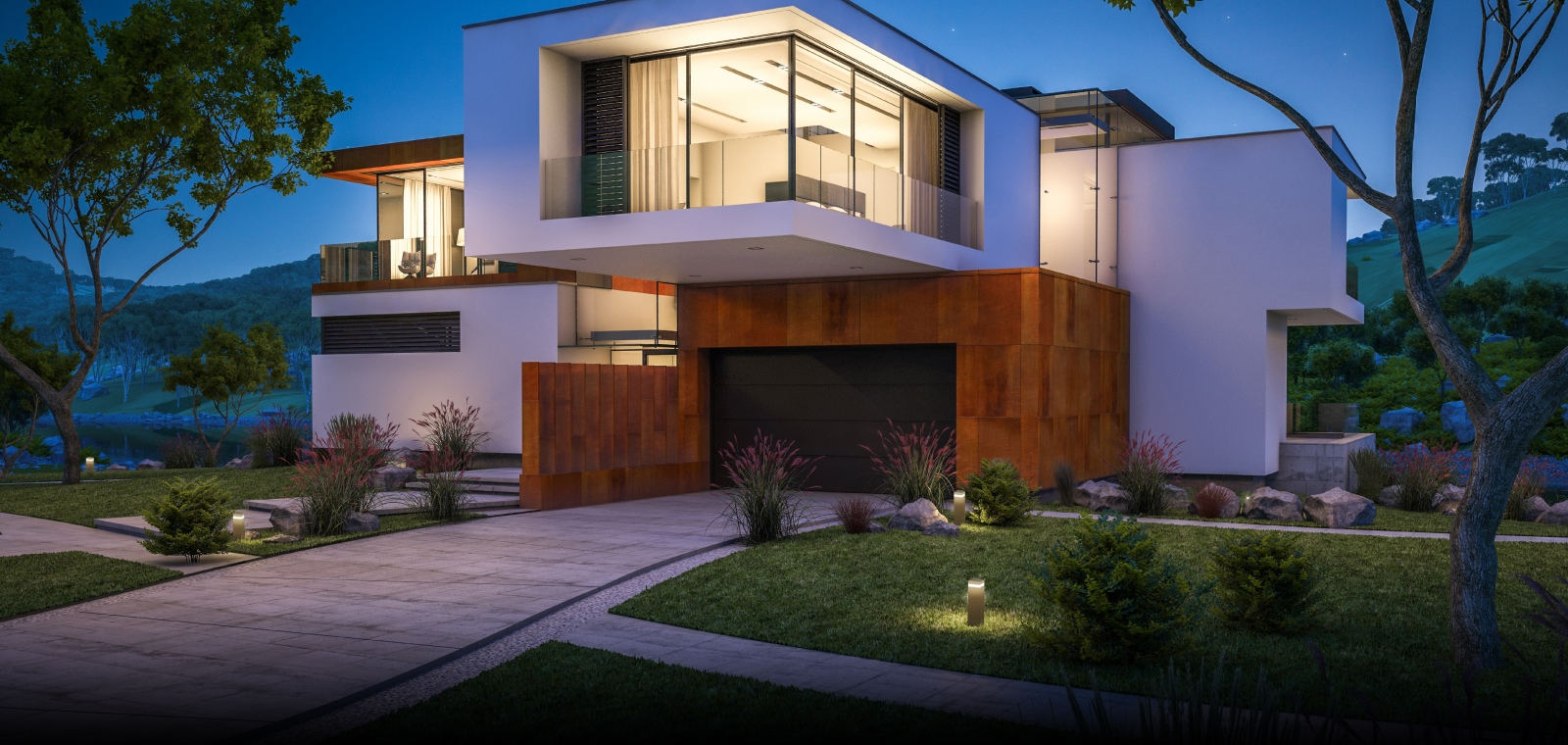

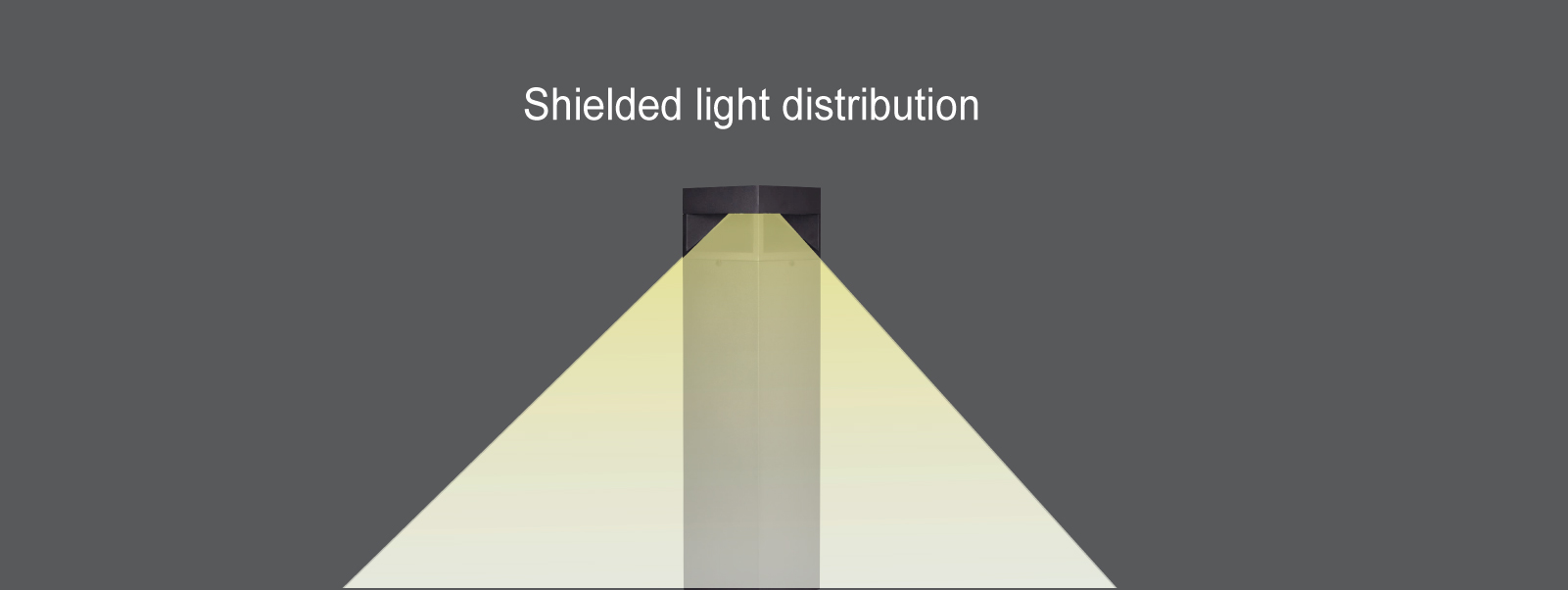

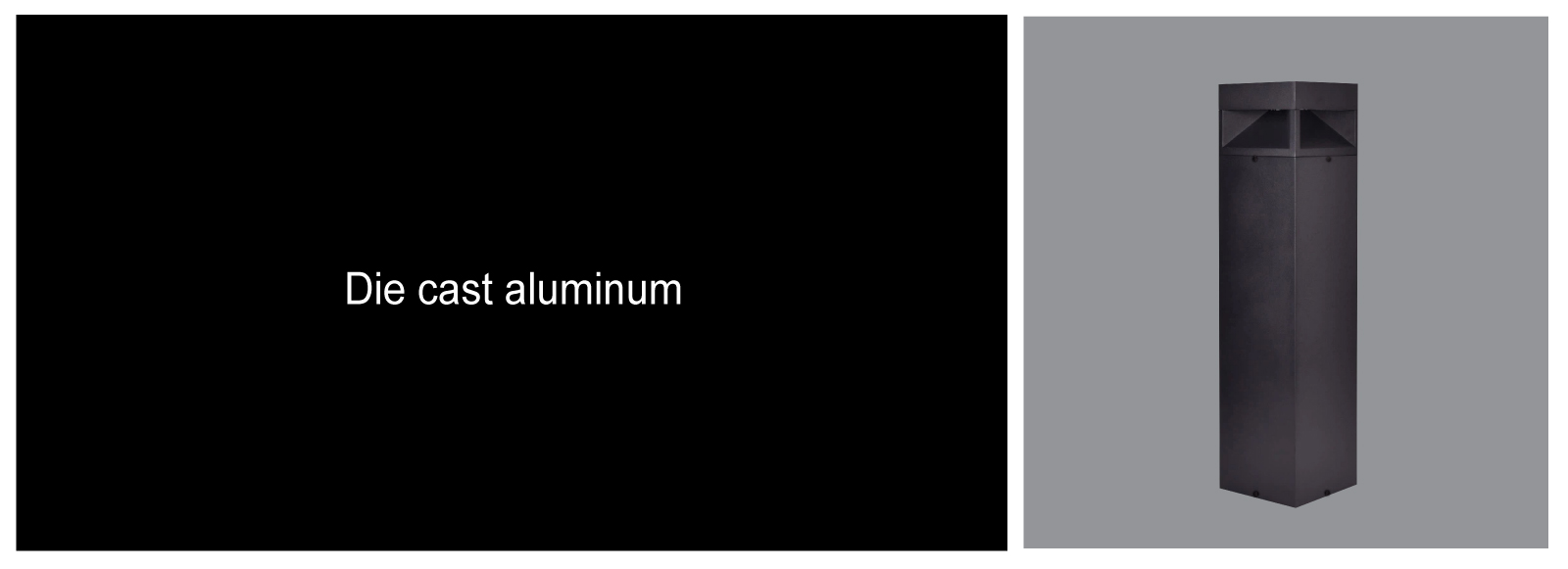

The Scott square bollard has shielded light distribution. This bollard has UV powder coated die cast high quality aluminum body, moulded silicone gasket and stainless steel screws. This bollard is an excellent choice for walkways, entrances, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | Scott Square Bollard Spec Sheet |
|---|---|
| IES | Scott Square Bollard IES |
| Instruction Manual | Scott Square Bollard Manual |
| Tech Info | Scott Square Bollard Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STBD-S-12H-20301-BK | 120-277 | 20 | 100W | Available | 830 | 3000 | 70 | / | 7.87"-11.8" | Black | 65 | Aluminium | ETL | 50000 | 18233 |
| STBD-S-12H-20401-BK | 120-277 | 20 | 100W | Available | 830 | 4000 | 70 | / | 7.87"-11.8" | Black | 65 | Aluminium | ETL | 50000 | 18234 |
| STBD-S-20H-20301-BK | 120-277 | 20 | 100W | Available | 830 | 3000 | 70 | / | 7.87"-19.7" | Black | 65 | Aluminium | ETL | 50000 | 18237 |
| STBD-S-20H-20401-BK | 120-277 | 20 | 100W | Available | 830 | 4000 | 70 | / | 7.87"-19.7" | Black | 65 | Aluminium | ETL | 50000 | 18238 |
| STBD-S-32H-20301-BK | 120-277 | 20 | 100W | Available | 830 | 3000 | 70 | / | 7.87"-31.5" | Black | 65 | Aluminium | ETL | 50000 | 18241 |
| STBD-S-32H-20401-BK | 120-277 | 20 | 100W | Available | 830 | 4000 | 70 | / | 7.87"-31.5" | Black | 65 | Aluminium | ETL | 50000 | 18242 |
| STBD-S-12H-24301-BK | 120-277 | 24 | 100W | Available | 980 | 3000 | 70 | / | 7.87"-11.8" | Black | 65 | Aluminium | ETL | 50000 | 18235 |
| STBD-S-12H-24401-BK | 120-277 | 24 | 100W | Available | 980 | 4000 | 70 | / | 7.87"-11.8" | Black | 65 | Aluminium | ETL | 50000 | 18236 |
| STBD-S-20H-24301-BK | 120-277 | 24 | 100W | Available | 980 | 3000 | 70 | / | 7.87"-19.7" | Black | 65 | Aluminium | ETL | 50000 | 18239 |
| STBD-S-20H-24401-BK | 120-277 | 24 | 100W | Available | 980 | 4000 | 70 | / | 7.87"-19.7" | Black | 65 | Aluminium | ETL | 50000 | 18240 |
| STBD-S-32H-24301-BK | 120-277 | 24 | 100W | Available | 980 | 3000 | 70 | / | 7.87"-31.5" | Black | 65 | Aluminium | ETL | 50000 | 18243 |
| STBD-S-32H-24401-BK | 120-277 | 24 | 100W | Available | 980 | 4000 | 70 | / | 7.87"-31.5" | Black | 65 | Aluminium | ETL | 50000 | 18244 |
