PRODUCT Outdoor Post Top I Lighting Column

Post Top I Lighting Column

Acorn LED Post Top

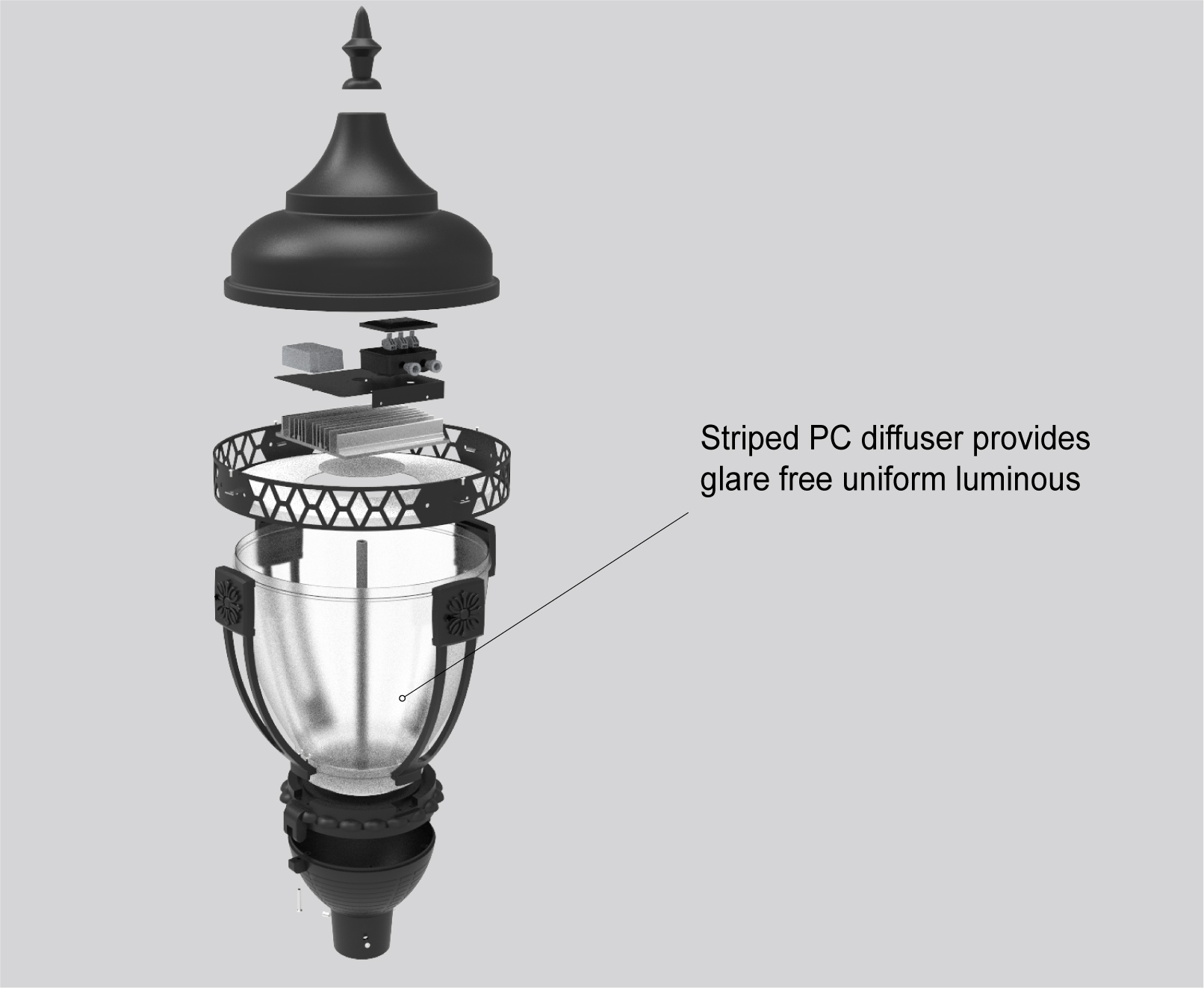

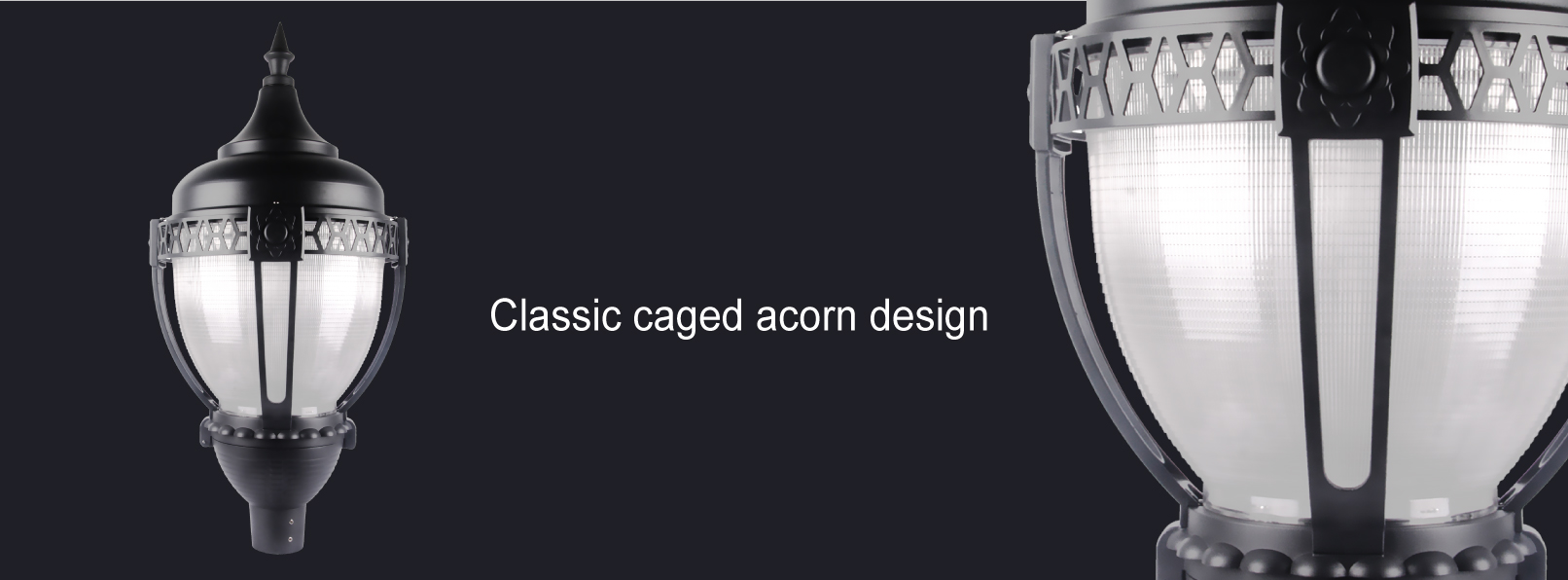

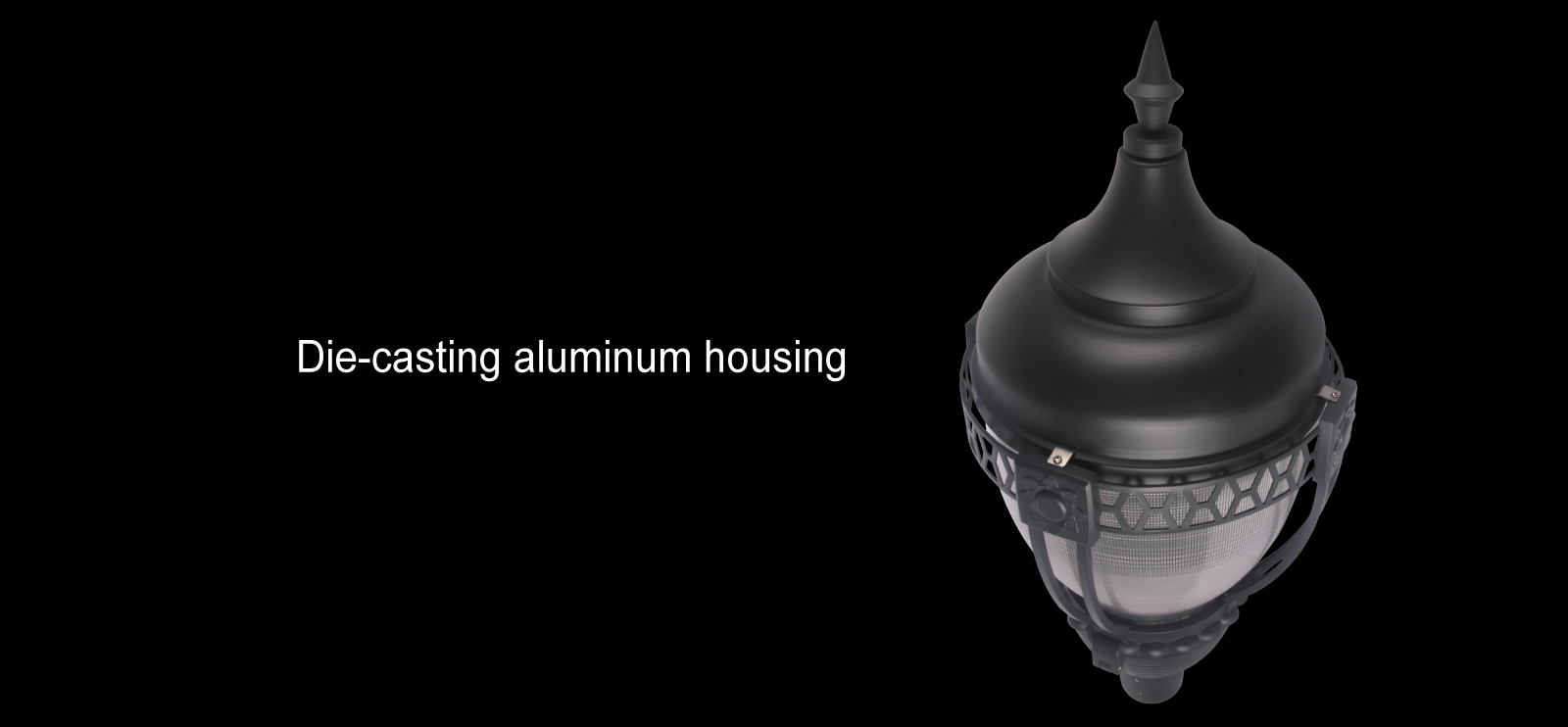

Traditional caged acorn design, with cast aluminum decorative finial and cap. This classic post top features a polycarbonate lens with fine striations creating a subtly diffused luminous effect. Ideally suited to outdoor landscape, courtyard as well as roadway or pathway applications.

Document Library

Spec Sheet Acorn LED Post Top Spec Sheet
IES Acorn LED Post Top IES
Tech Info Acorn LED Post Top Tech Info
Revit file Please email info@abovealllighting.com for Revit file

Technical Information

Model number Voltage(V)Wattage (W)Replaces/Equiv.(MH)Dimming/ControlLumens(lm)CCT(K)CRIDistributionDimension(W"-W"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
ACPT-30301-V-BK 120-277 30W 100W Available 2800 3000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17764
ACPT-30401-V-BK 120-277 30W 100W Available 2800 4000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17765
ACPT-30501-V-BK 120-277 30W 100W Available 2800 5000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17766
ACPT-30301-BTPC-V-BK 120-277 30W 100W button photocontrol 2800 3000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17767
ACPT-30401-BTPC-V-BK 120-277 30W 100W button photocontrol 2800 4000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17768
ACPT-30501-BTPC-V-BK 120-277 30W 100W button photocontrol 2800 5000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17769
ACPT-60301-V-BK 120-277 60W 250W Available 5400 3000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17758
ACPT-60401-V-BK 120-277 60W 250W Available 5400 4000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17759
ACPT-60501-V-BK 120-277 60W 250W Available 5400 5000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17760
ACPT-60301-BTPC-V-BK 120-277 60W 250W button photocontrol 5400 3000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17761
ACPT-60401-BTPC-V-BK 120-277 60W 250W button photocontrol 5400 4000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17762
ACPT-60501-BTPC-V-BK 120-277 60W 250W button photocontrol 5400 5000K 70 V 18"-18"-35" Black 65 aluminum ETL 50000 17763
