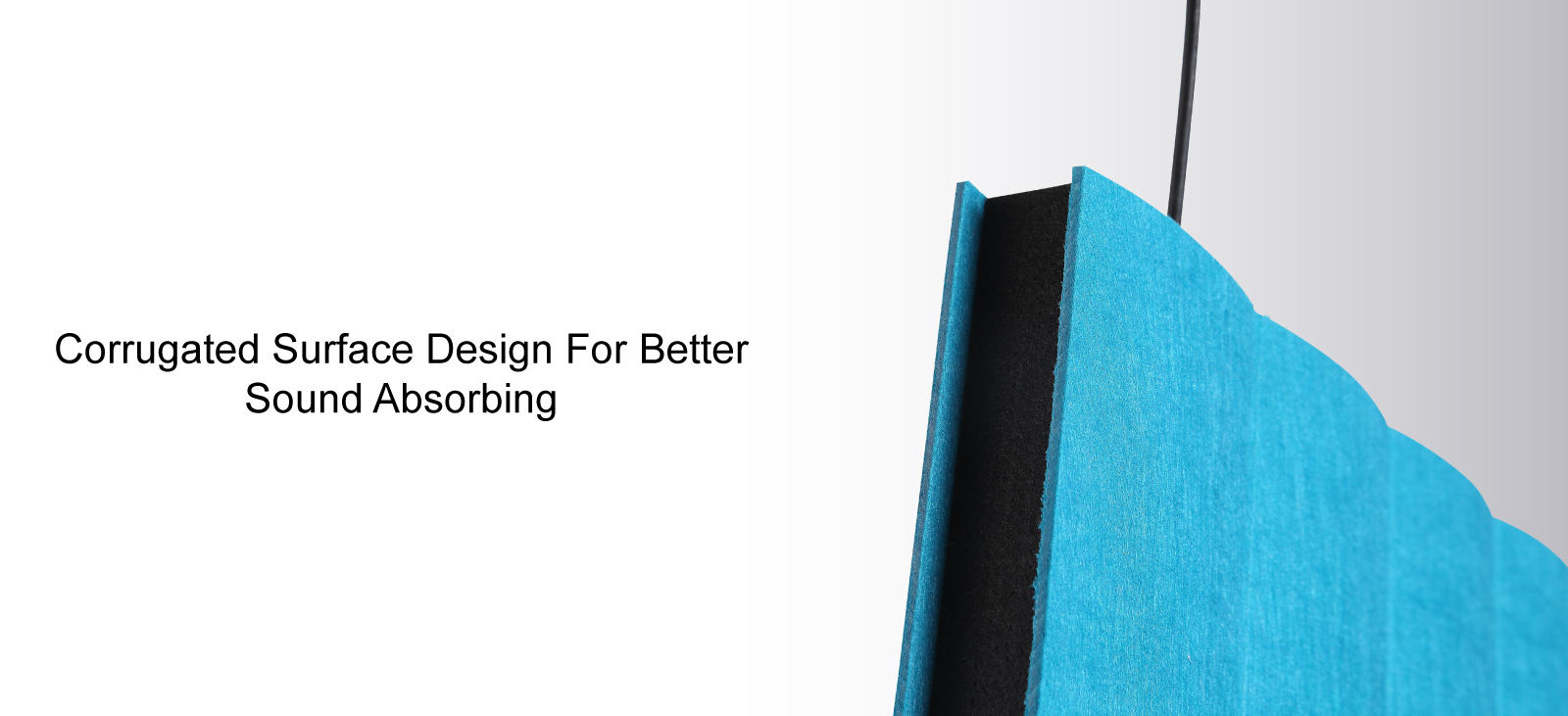

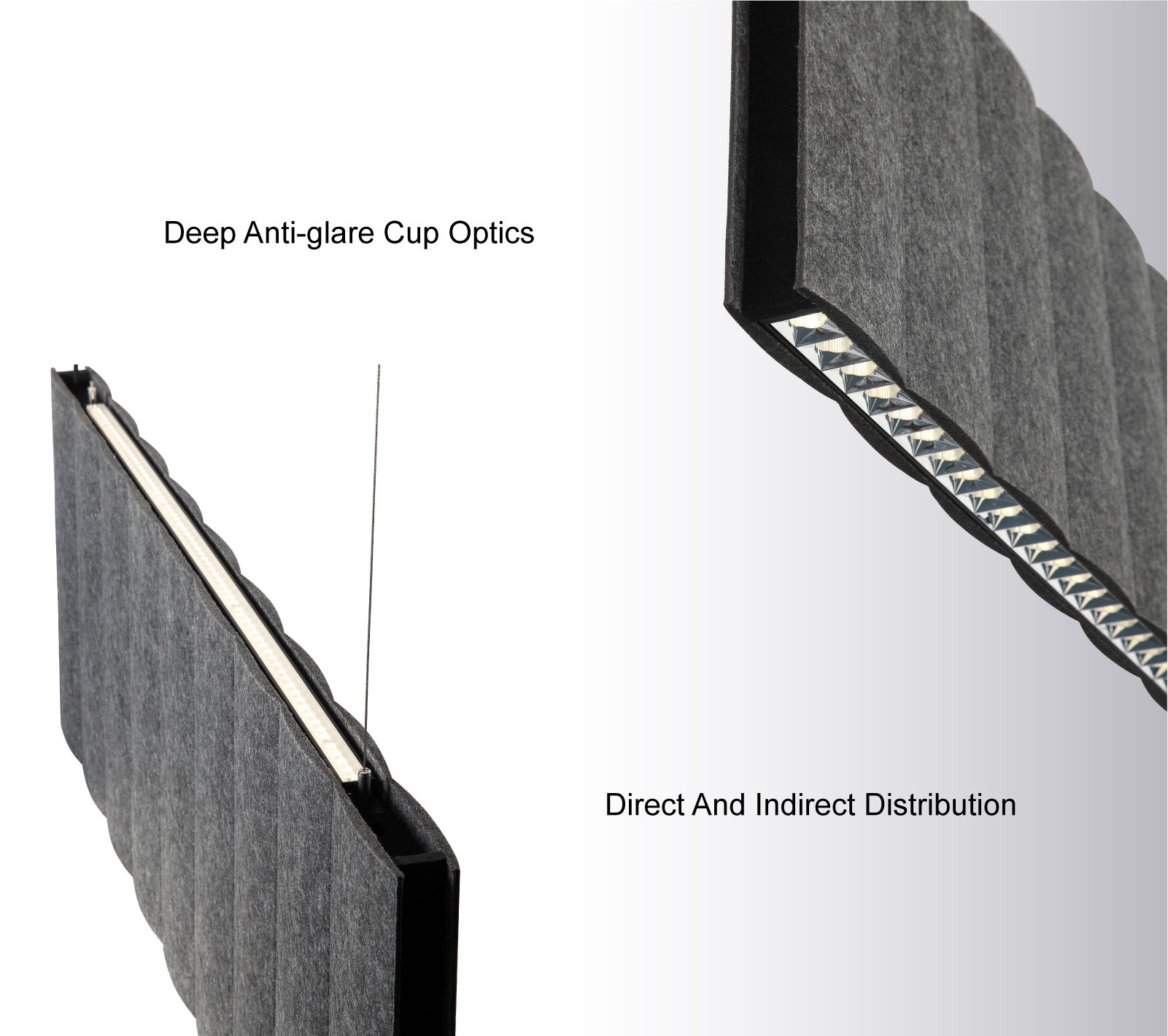

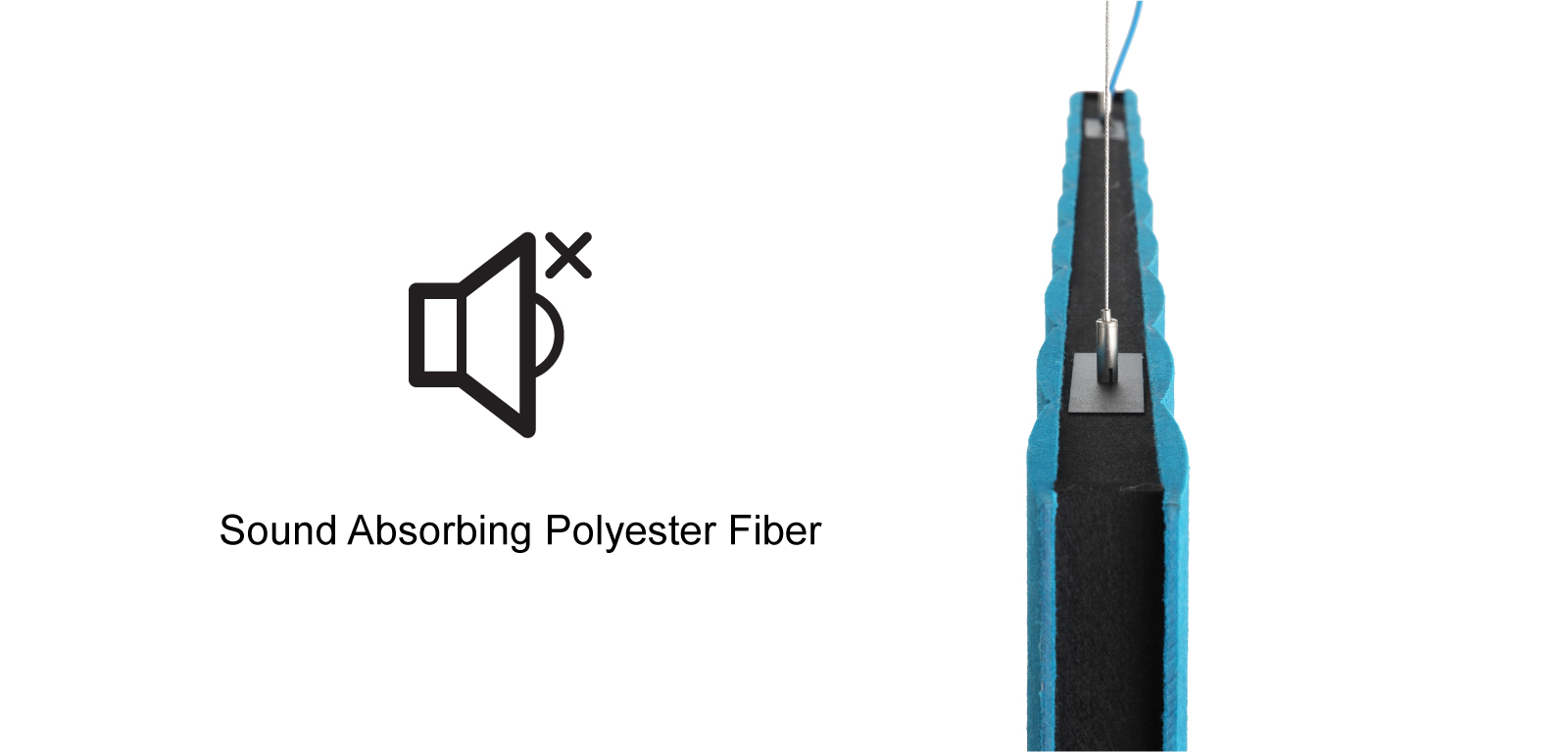

The Corrugated acoustic light is made up of a sound absorbing polyester fiber materials. It is a new materials that integrate sound absorbing, heat insulation and decorative effects. The corrugated surface allows for various frequencies of sound to be absorbed within a space. Deep anti-glare cup optic design is for better glare control.
| Spec Sheet | Corrugated Acoustic Light Spec Sheet |
|---|---|
| Brochure | Corrugated Acoustic Brochure |
| Tech Info | Corrugated Acoustic Light Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CORD36-30808-DG | 120-347 | 35 | / | 1-10V Dim | 3220 | 3000 | >80 | / | 43.8"x2.2"x15.8" | Dark Grey | 20 | polyester fiber+Al | ETL | 50000 | 16214 |
| CORD36-35808-DG | 120-347 | 35 | / | 1-10V Dim | 3360 | 3500 | >80 | / | 43.8"x2.2"x15.8" | Dark Grey | 20 | polyester fiber+Al | ETL | 50000 | 16215 |
| CORD36-40808-DG | 120-347 | 35 | / | 1-10V Dim | 3500 | 4000 | >80 | / | 43.8"x2.2"x15.8" | Dark Grey | 20 | polyester fiber+Al | ETL | 50000 | 16216 |
