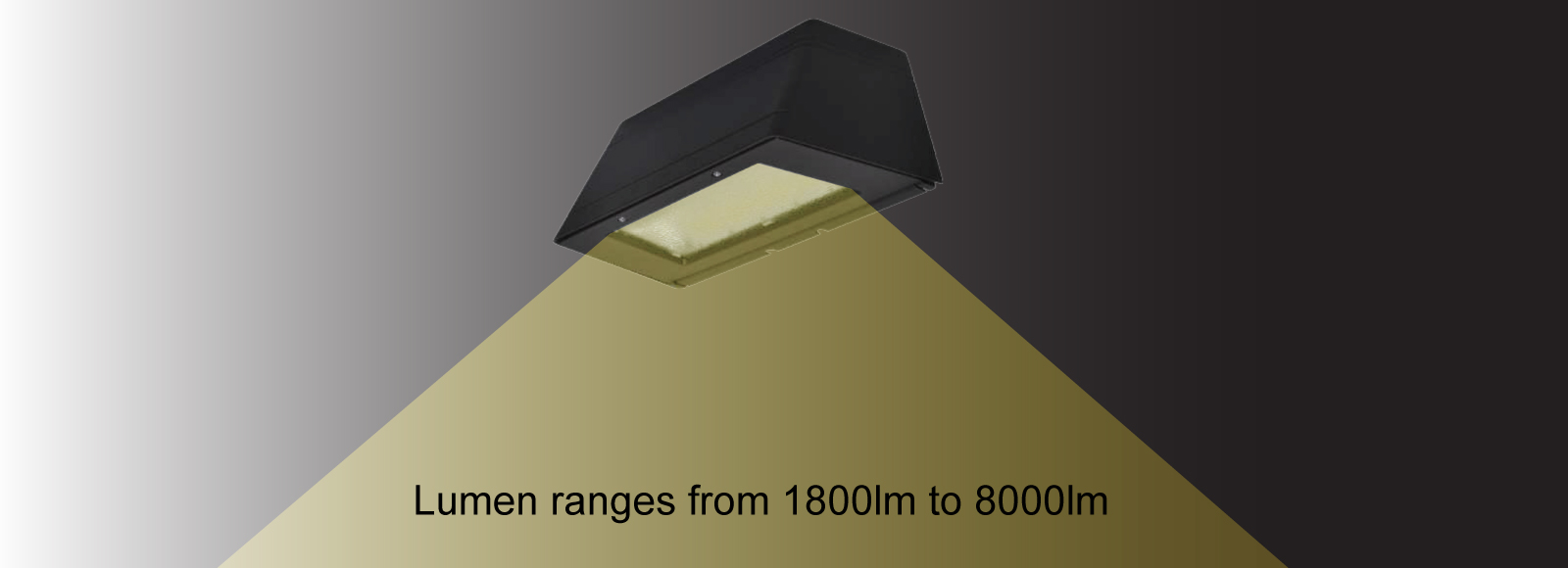

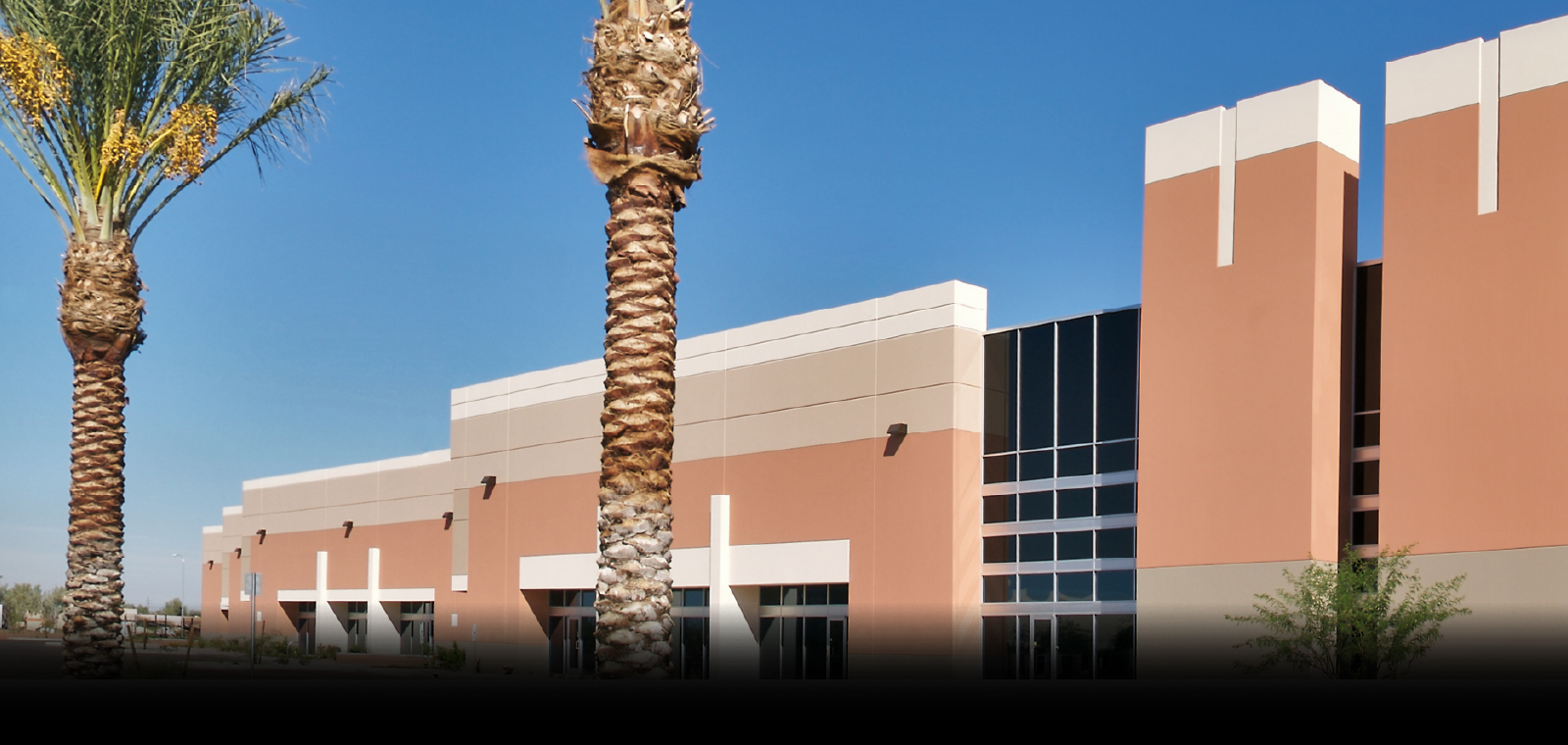

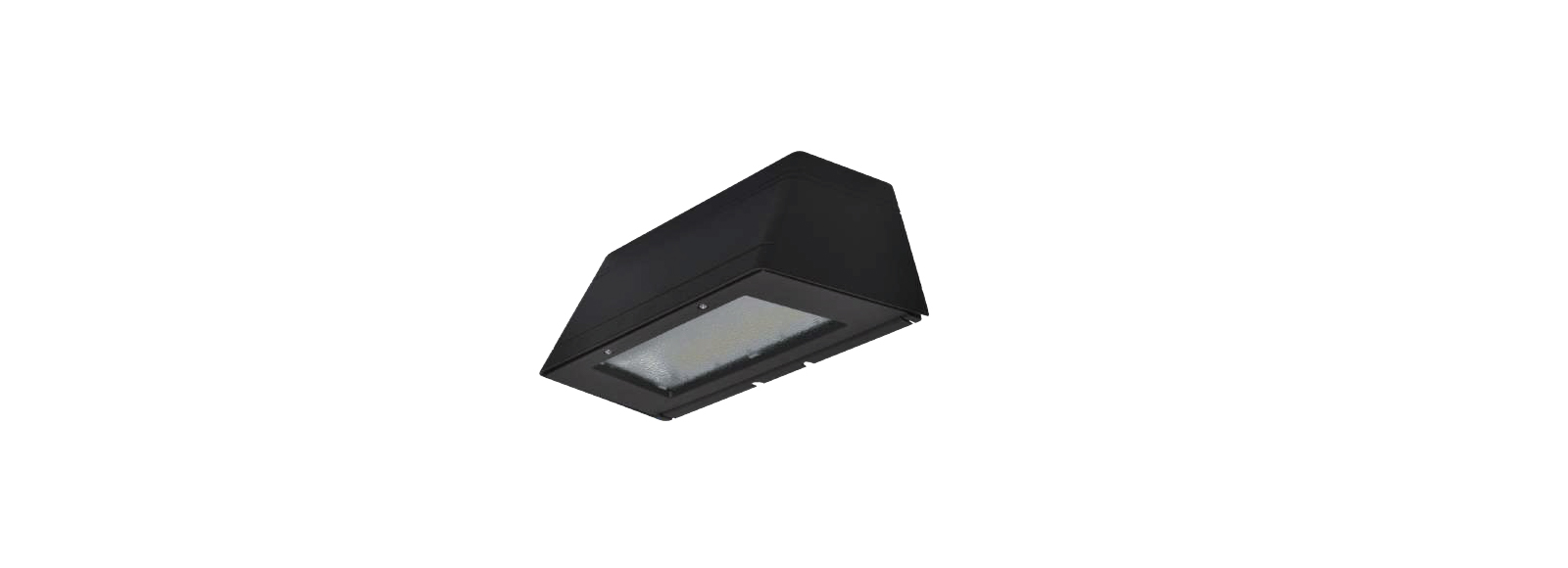

The GRA selectable dark sky wall pack features cutoff distribution in traditional appearance. Die-cast aluminum housing with integrated heat sink for superior heat dissipation, and options for Emergency back-up, photocontrol, and sensor. It is an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
| Spec Sheet | GRA LED WALL PACK Spec Sheet |
|---|---|
| IES | GRA LED WALL PACK IES |
| Tech Info | GRA LED WALL PACK Tech Info |
| Revit file | GRA LED WALL PACK Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GRA-SP301-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | Available | 8100lm@70W | 3000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17706 |
| GRA-SP401-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | Available | 8100lm@70W | 4000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17707 |
| GRA-SP501-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | Available | 8100lm@70W | 5000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17708 |
| GRA-SP301-PC-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | photocell | 8100lm@70W | 3000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17709 |
| GRA-SP401-PC-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | photocell | 8100lm@70W | 4000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17710 |
| GRA-SP501-PC-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | photocell | 8100lm@70W | 5000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17711 |
| GRA-SP301-MS-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | sensor | 8100lm@70W | 3000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17712 |
| GRA-SP401-MS-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | sensor | 8100lm@70W | 4000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17713 |
| GRA-SP501-MS-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | sensor | 8100lm@70W | 5000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17714 |
| GRA-SP301-EBU-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | EBU | 8100lm@70W | 3000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17715 |
| GRA-SP401-EBU-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | EBU | 8100lm@70W | 4000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17716 |
| GRA-SP501-EBU-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | EBU | 8100lm@70W | 5000 | 70 | Forward Throw | 16.54"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 17717 |
