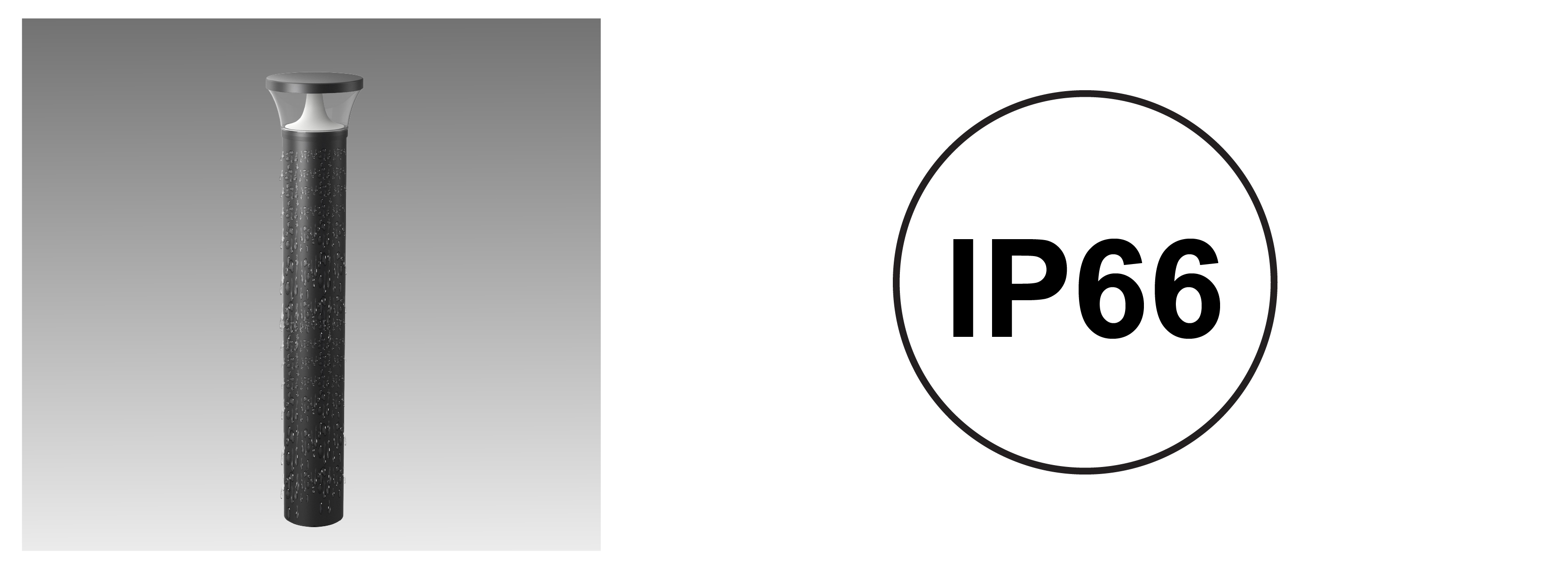

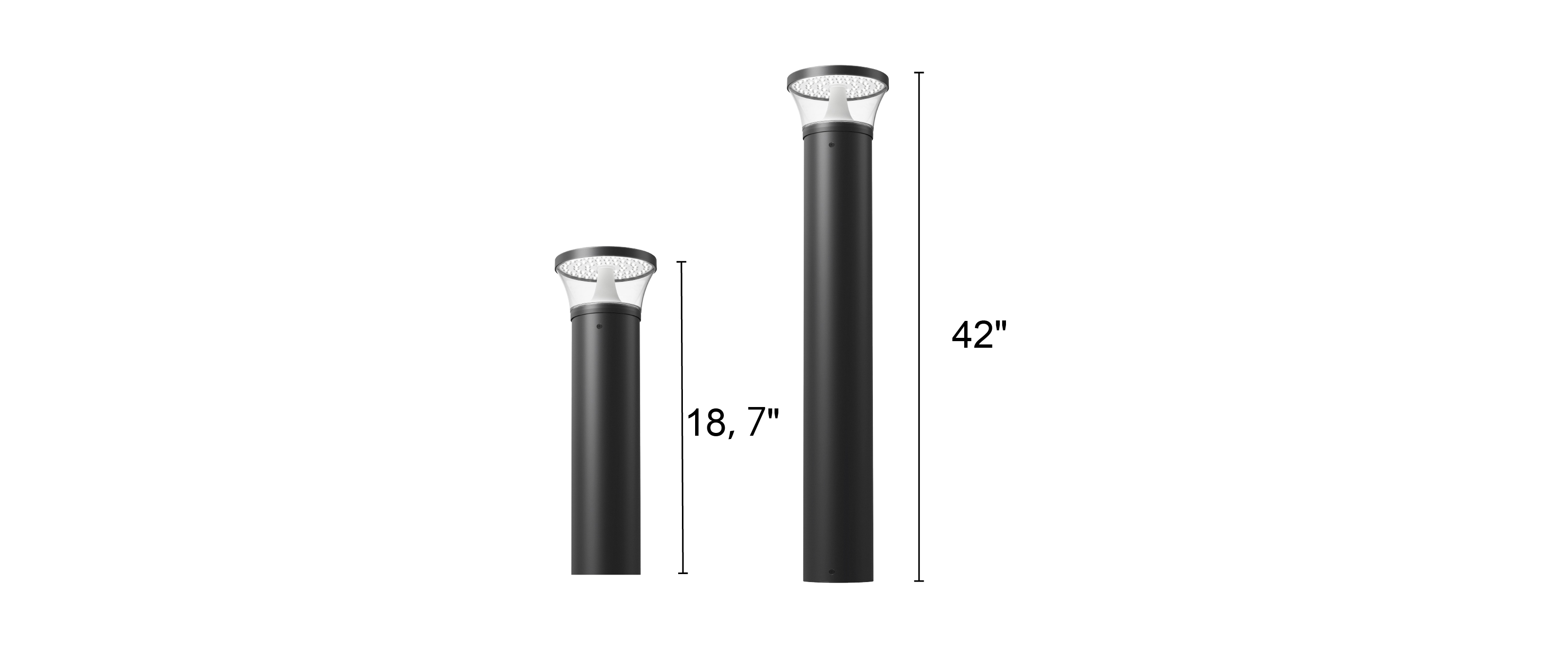

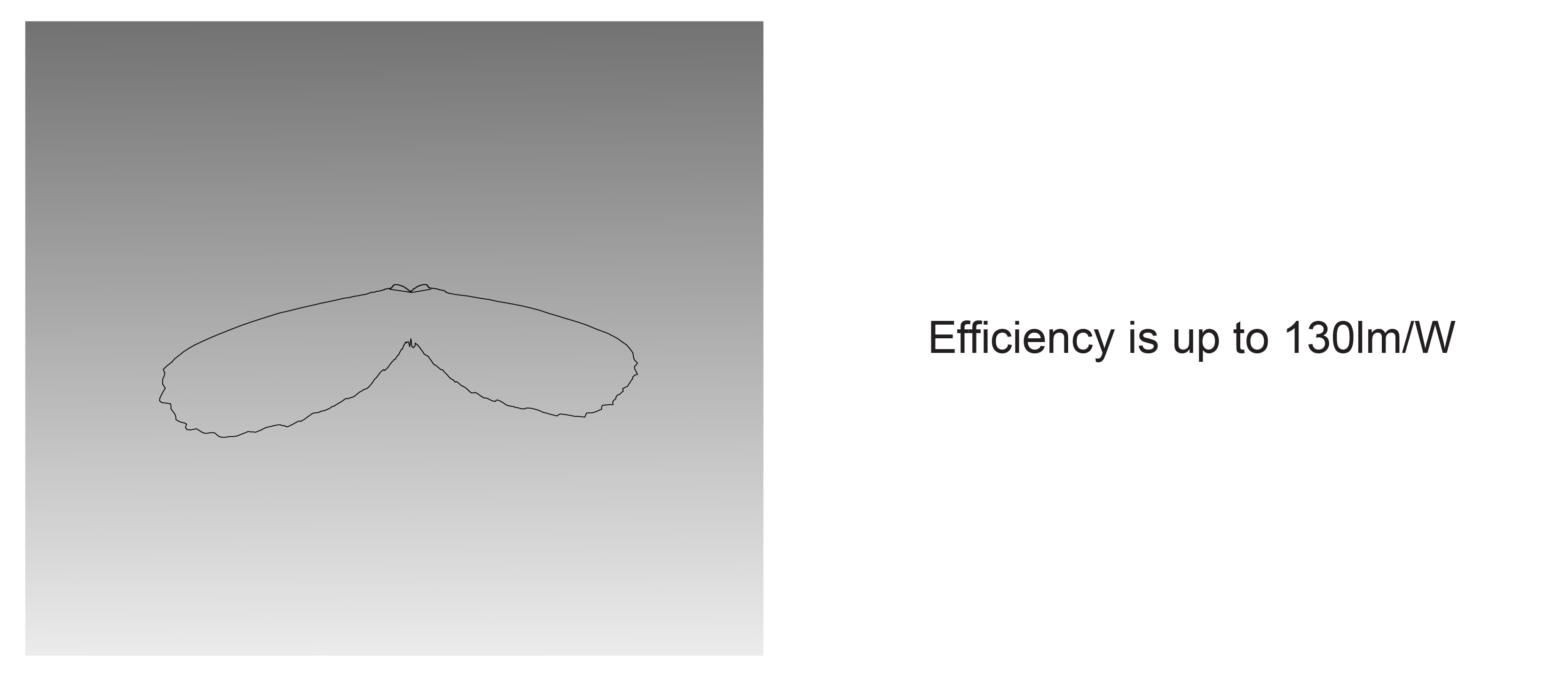

The Sceley led bollard comes in 18.7″ and 42″ height optional heights available. . An innovative bollard light which enhances the aesthetic and creative of city unique and gorgeous appearance. Efficiency up to 130 lm/W. CCT and Wattage selectable. This bollard is Ideal for a wide range of exterior spaces and an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas. IP66 rated for wet location.
| Spec Sheet | Sceley LED Bollard Spec Sheet |
|---|---|
| Instruction Manual | Sceley LED Bollard Instruction Manual |
| IES | Sceley LED Bollard IES |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Tech Info | Sceley LED Bollard Tech Info |
| Brochure | Sceley Family Brochure |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCBD42H-25SP-SW1-V-BK | 120-277 | 26 | 75W | Available | 3200 | 3000/4000/5000 | 70 | V | Φ8"x42" | Black | 65 | Aluminum | ETL | 50000 | 16792 |
| SCBD19H-25SP-SW1-V-BK | 120-277 | 26 | 75W | Available | 3200 | 3000/4000/5000 | 70 | V | Φ8"x18.7" | Black | 65 | Aluminum | ETL | 50000 | 16793 |
