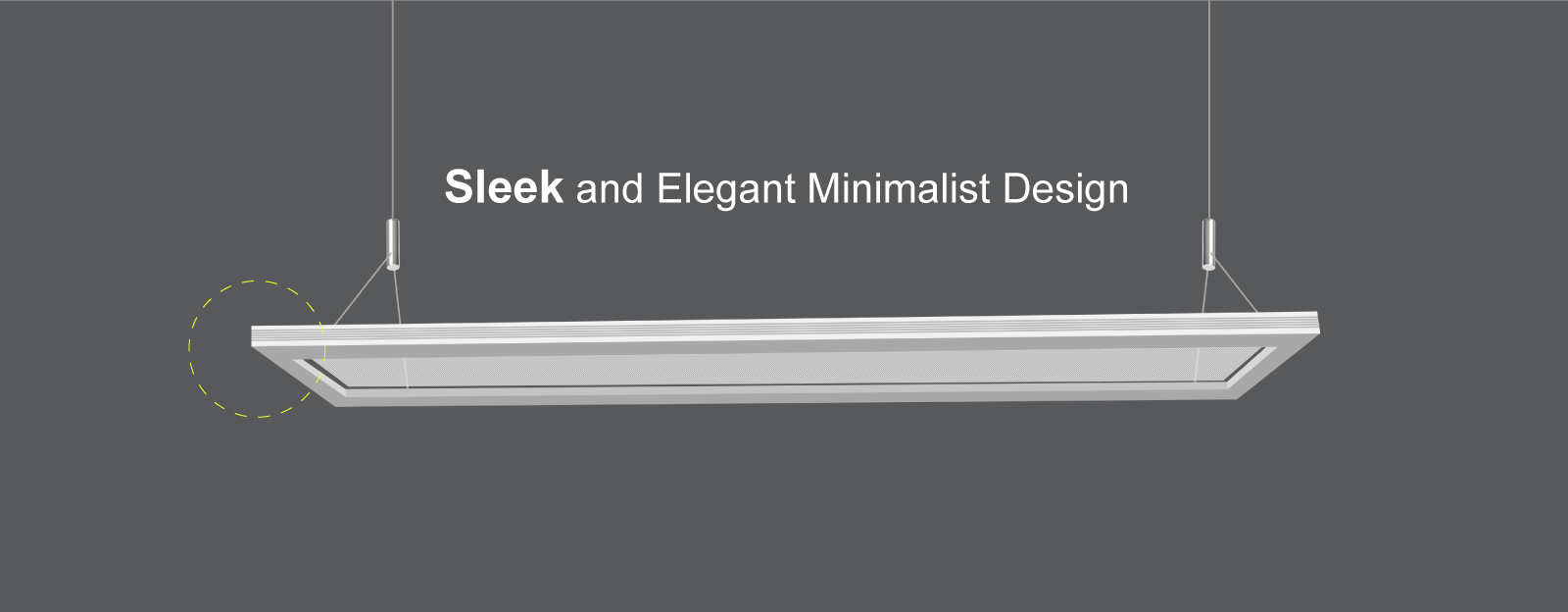

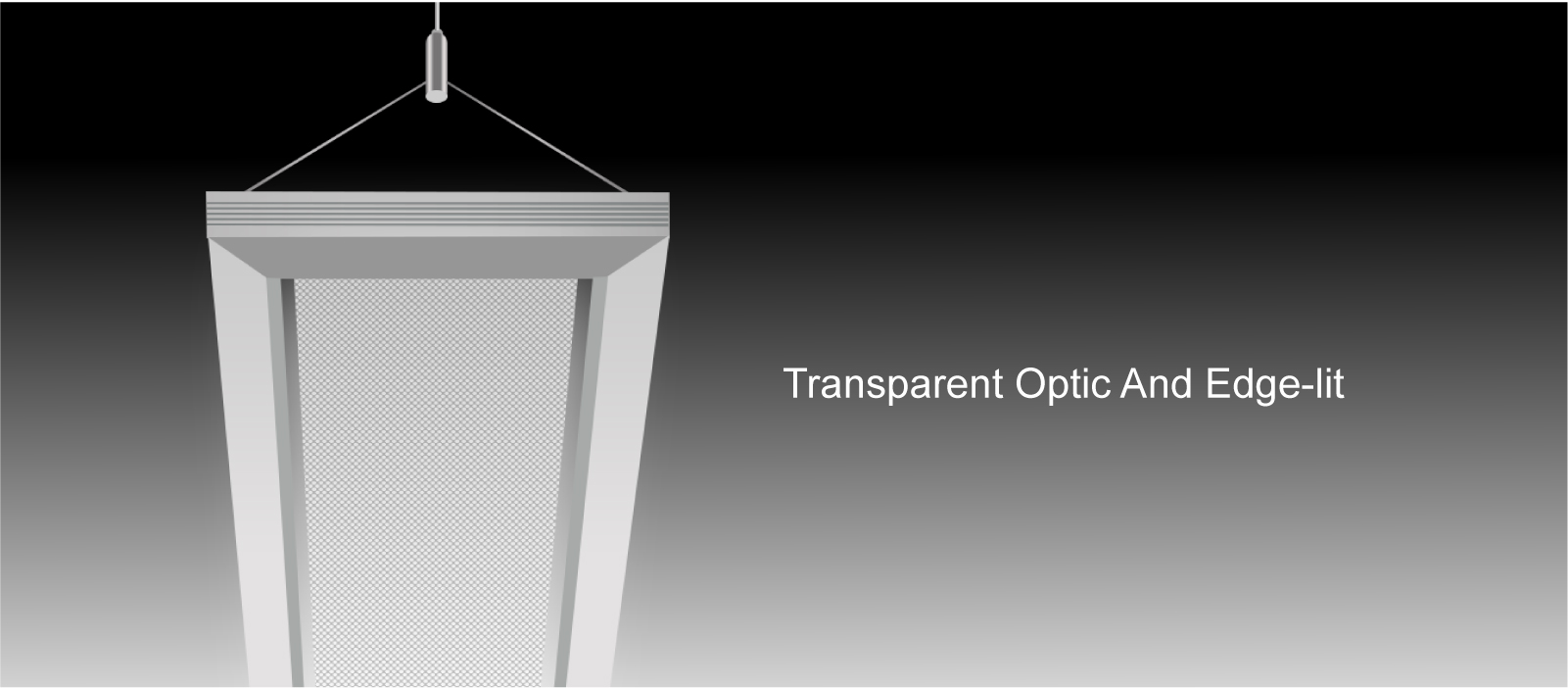

The Slab Pendant Light, with its exceptionally thin profile appears to float across the ceiling landscape. While on, it produces a perfectly even glow, and when off, it is nearly transparent. With LEDs hidden inside the frame, reducing glare, it is perfect for applications that include conference rooms, open offices, retail settings, or anywhere you want to make a statement.
| Spec Sheet | SLAB Pendant Light Spec Sheet |
|---|---|
| Manual | SLAB Pendant Light Manual |
| Tech Info | SLAB Pendant Tech Info |
| IES | SLAB Pendant Light IES |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLAB04-308-PM | 120-277 | 40 | / | 1-10V Dim | 4400 | 3000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15992 |
| SLAB04-358-PM | 120-277 | 40 | / | 1-10V Dim | 4600 | 3500 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15993 |
| SLAB04-408-PM | 120-277 | 40 | / | 1-10V Dim | 4600 | 4000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15994 |
| SLAB04-SW8-PM | 120-347 | 40 | / | 1-10V Dim | 4600 | 3000/3500/4000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15995 |
| SLAB08-308-PM | 120-347 | 80 | / | 1-10V Dim | 9000 | 3000 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15996 |
| SLAB08-358-PM | 120-347 | 80 | / | 1-10V Dim | 9200 | 3500 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15997 |
| SLAB08-408-PM | 120-347 | 80 | / | 1-10V Dim | 9200 | 4000 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15998 |
