PRODUCT Outdoor LED Post Top

LED Post Top

Versatile Post Top VPTA

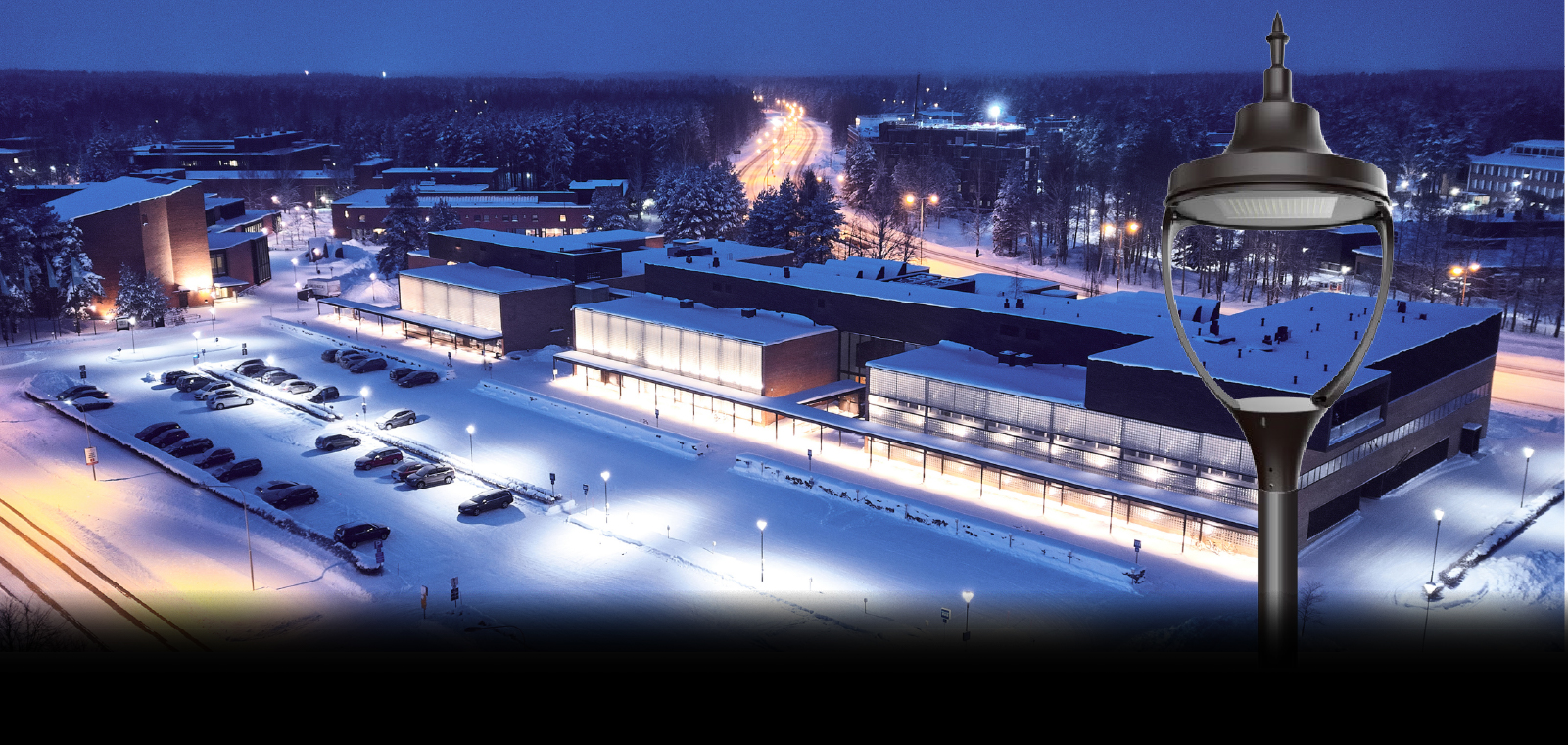

The VERSATILE series has the high-performance solution for the most demanding applications with an universal body and different shades. It can be used in many applications such as pedestrian street, factory, schools, garden, courtyard, hotel, parking lot, public parks etc.

Document Library


Technical Information

Model number Voltage(V)Wattage(W)Replaces/Equiv.(MH)ControlsLumens(lm)CCT(K)CRIDistributionDimension(D"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
VPTA30401-T5 120-277 30 150W Available 3640 4000 70 Type VN Φ19 1/16" -37 1/8" Bronze 66 Aluminium UL 50000 14308
VPTA60401-T5 120-277 60 175W Available 6430 4000 70 Type VN Φ19 1/16" -37 1/8" Bronze 66 Aluminium UL 50000 14309
VPTA90401-T5 120-277 90 250W Available 10000 4000 70 Type VN Φ19 1/16" -37 1/8" Bronze 66 Aluminium UL 50000 14310
VPTA150401-T5 120-277 150 320W Available 15590 4000 70 Type VN Φ19 1/16" -37 1/8" Bronze 66 Aluminium UL 50000 14311

Lighting Design

Our lighting designers can help you
create a custom layout.

Lighting Layout
